GTP80

7HP Gasoline Water Pump High Flow 400L/min

  • Model: GTP80, horizontal medium-pressure single-stage single-suction gasoline centrifugal pump, produced by UNITED POWER
  • Power: UP170 gasoline engine, 208cc displacement, 7.0HP / 3600rpm
  • Performance: Flow rate over 400L/min, head 10-30m, suction lift 8m, outlet diameter 80mm
  • Structure: Semi-open impeller, split pump body, air-cooled heat dissipation, durable and easy to maintain
  • Export specification: Carton packaging, 208 units per 20ft container, annual output 50,000 units, lead time 45 days
Send An Inquiry

PRODUCT DESCRIPTION

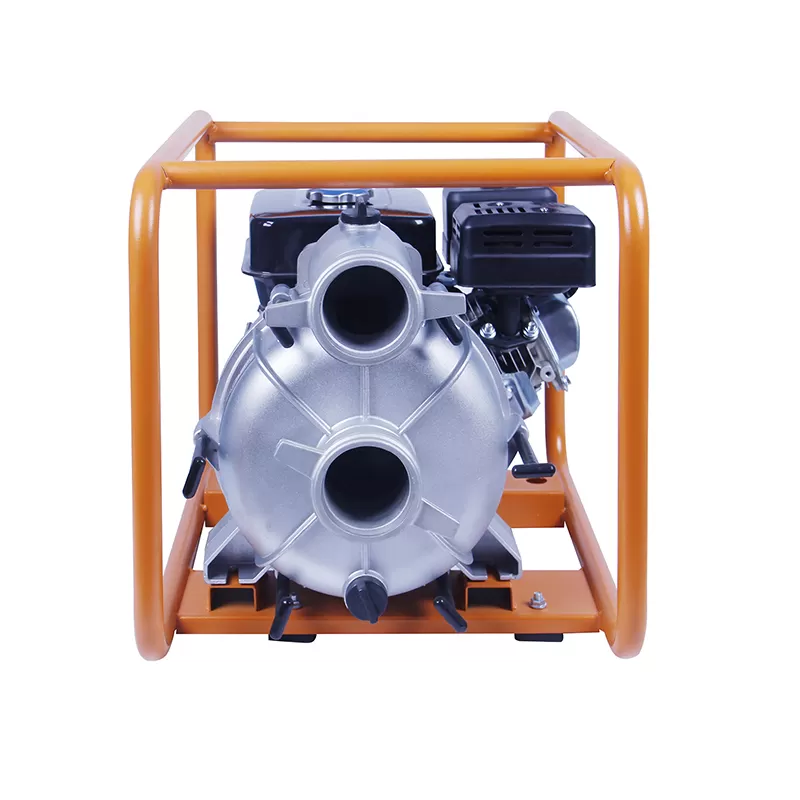

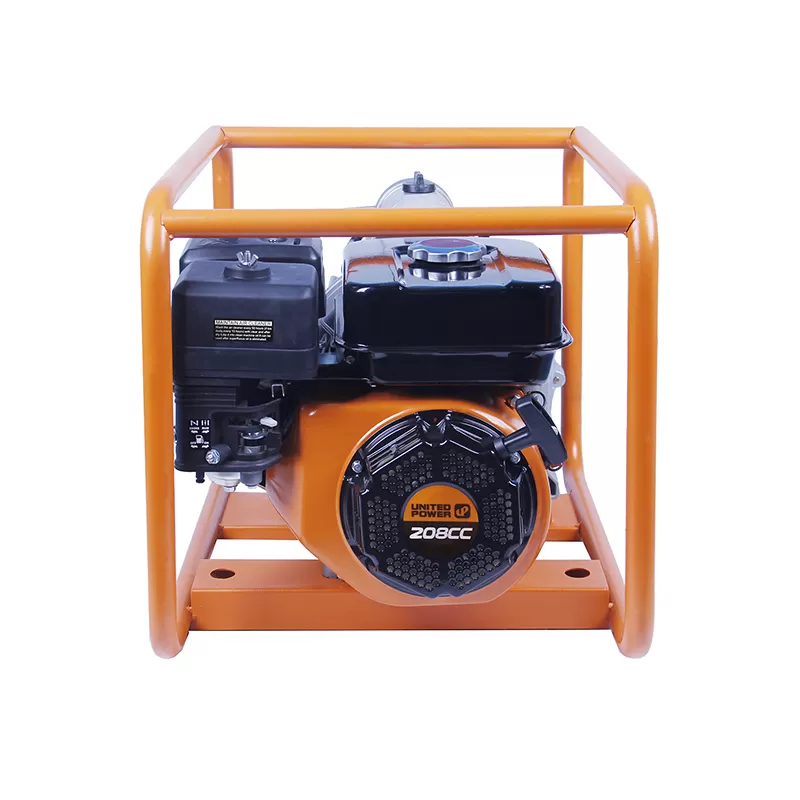

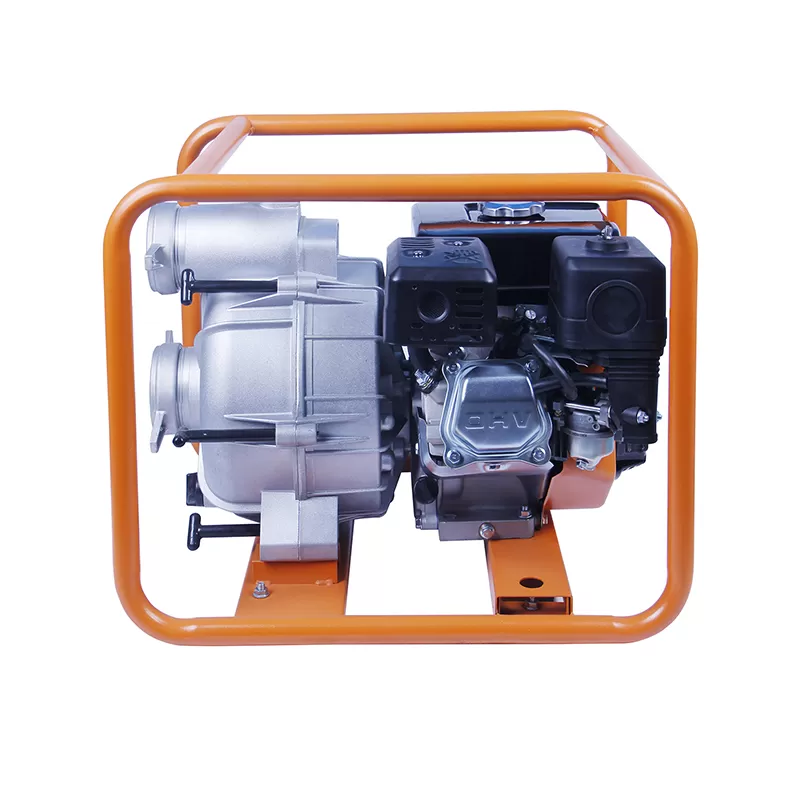

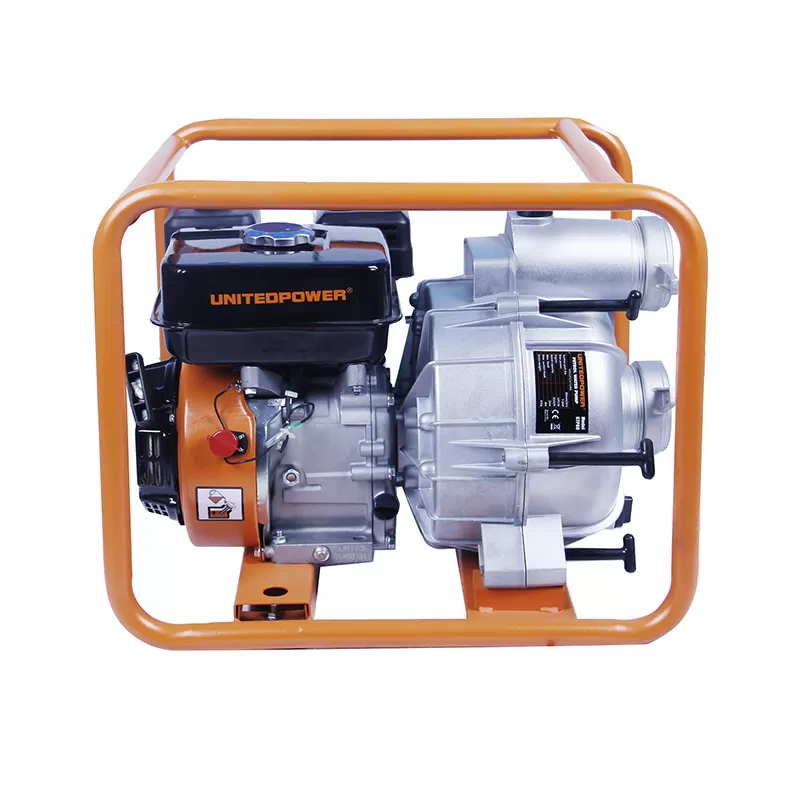

UNITED POWER The GTP80 is a horizontal medium-pressure single-stage single-suction gasoline centrifugal pump. It is equipped with a UP170 four-stroke air-cooled gasoline engine, featuring 208cc displacement and 7.0HP power at 3600rpm with strong power performance. It achieves a flow rate above 400L/min, delivery head of 10-30 meters and suction lift of 8 meters, with an outlet diameter of 80mm. Adopting semi-open impeller and split pump body design, it runs stably and is easy for maintenance. Requiring no external power supply, it is widely applicable for agricultural irrigation, construction water supply, emergency drainage, circulating water supply and other clean water conveying applications. Its overall dimension is 562×455×472mm, packed in carton boxes. 208 units can be loaded in one 20ft container. Originated in Fujian, we have an annual production capacity of 50,000 units and a standard lead time of 45 days. It is a cost-effective gasoline-powered water conveying solution for export business.

SPECIFICATIONS

ModelGTP80
Discharge Port Dia(mm)80(3in)
Rated Capacity(m3/h)65
Self-Priming Time(s/4m)55
Max. Head(m)26
Max. Suction Head(m)8
Dimension (L×W×H) (mm)562*455*472
Net weight/Gross weight(KG)35/38
40ft container Qty428
EngineUP170
Engine TypeSingle-Cylinder, 4-Stroke, Air-Cooled; OHC Gasoline Engine
Displacement Capacity(CC)208
Max. Output(HP/rpm)7.0/3600
Fuel Tank Capacity(L)3.6

INCLUDES

(1x) Spark plug wrench

(1x) Owner’s manual

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

FAQ

Here are questions frequently asked by customers. However, when the FAQ doesn’t answer your questions, you can send us a message to ask.

We are the manufacturer. Meanwhile, we have our own factory.
Our factory is in Fuzhou City, Fujian Province, China. It’s around 4 hour by express train or 2 hour by plane from Guangzhou to our city. Especially, our city has own sea port, Mawei port and Jiangyin port.
Ordinarily, it costs 20-25 workdays for 2x40ft containers. Additionally,the sample order can be finished in 5 days under standard type.
In general, payment≤2500 USD,100% in advance.
Besides, payment ≥ 2500 USD, 30% T/T in advance, balance against BL copy.
We strictly operate full QC process, such as incoming inspection, process inspection and final inspection. In other word, each product must be tested in production line before shipping.
