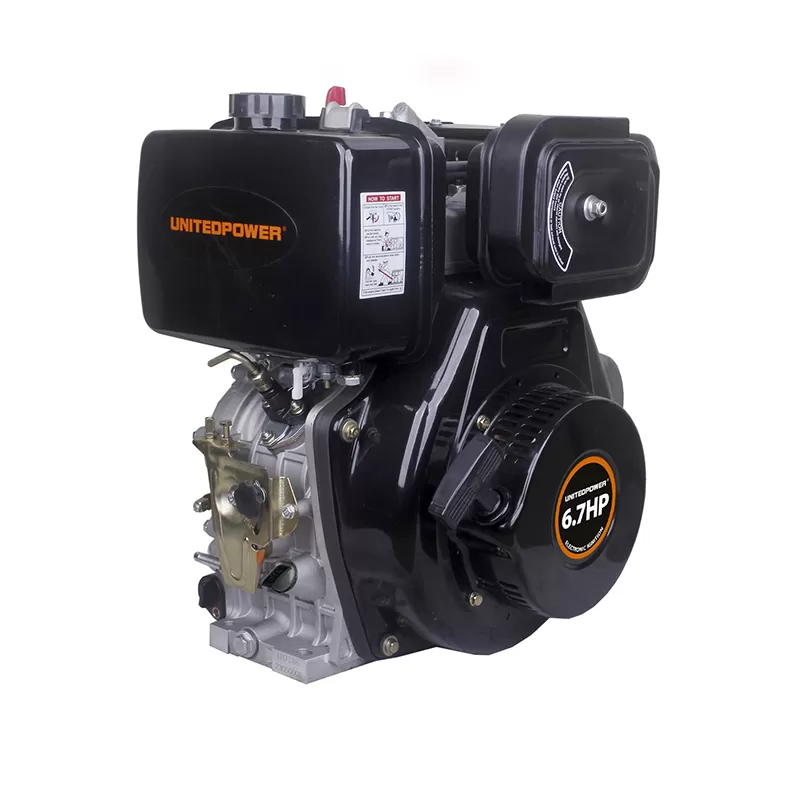

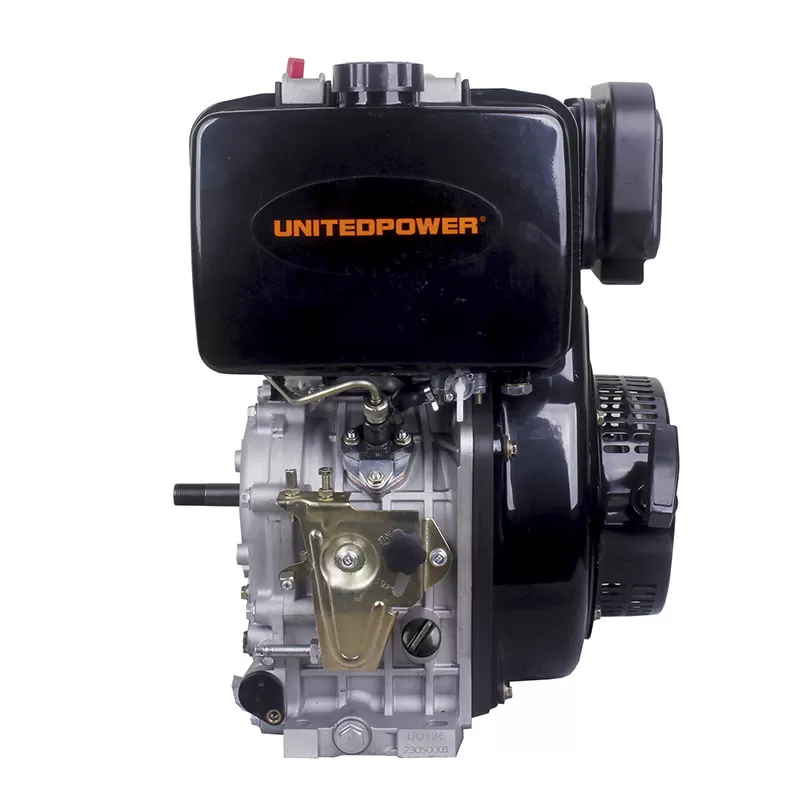

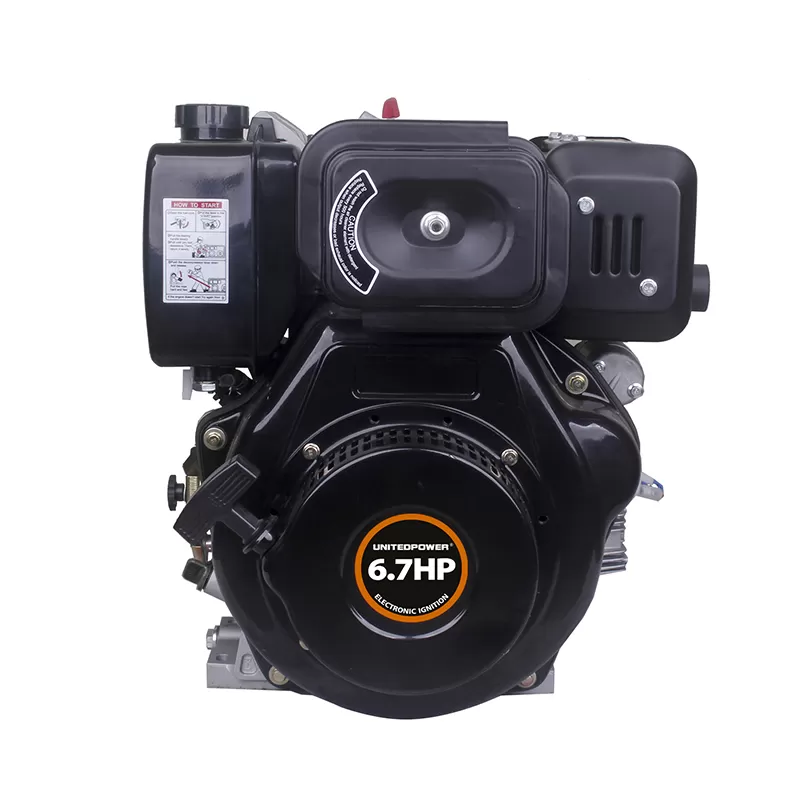

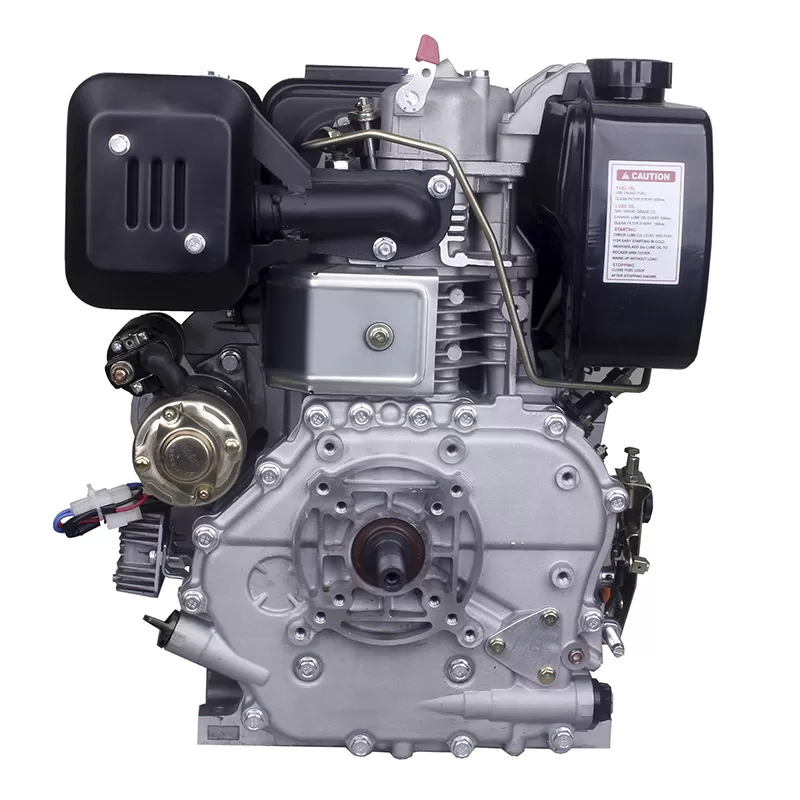

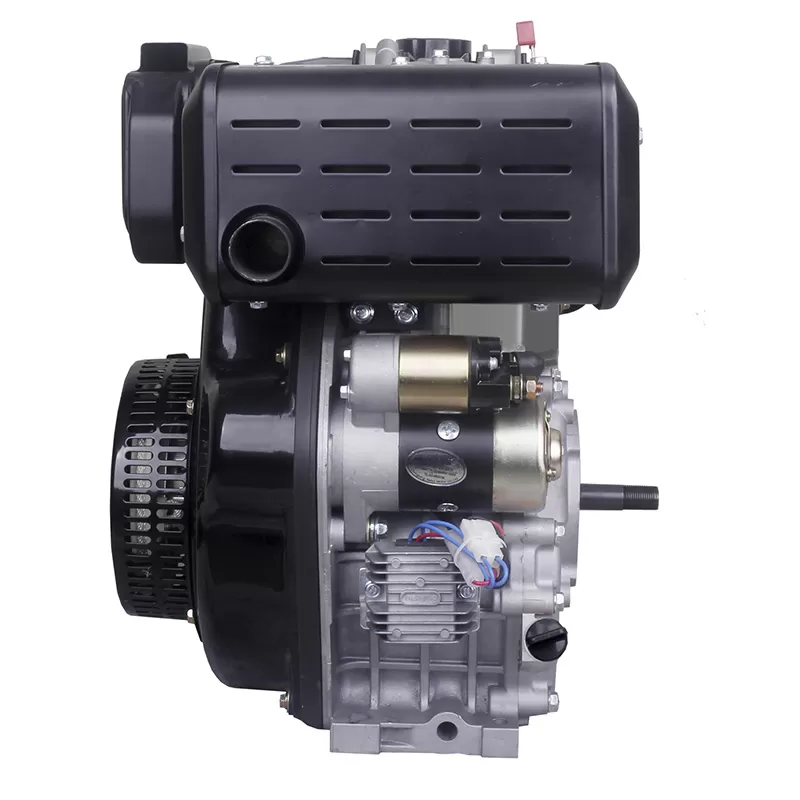

UD178

4-Stroke Diesel Engine with 6.7 HP Power

【STRONG POWER】 The power of this 4 stroke diesel engine is 2900w, and the speed can reach up to 3600r/min, providing you with strong power to ensure that your work can be completed quickly and easily.
【DURABLE AND STABLE】 This 996cc single cylinder diesel engine is made of aluminum alloy and iron, it is durable, not easy to rust, and has a long service life. The camshaft is made of steel, ensuring stable engine operation and effectively controlling the opening and closing of valves.
【ENERGY SAVER】 This 6.7 HP diesel engine adopts a self-injection diesel system with a good atomization effect and can effectively reduce fuel consumption, and save more costs for you.
【EXCELLENT COOLING SYSTEM】 This air cooled diesel engine is equipped with a forced air cooling system and heat dissipation holes, it can timely reduce the temperature of the motor, extend its service life, and reduce safety hazards.
【LOW NOISE】 This 2.9KW recoil hand start engine adopts a double-layer soundproof muffler, which can effectively reduce noise and provide you with a comfortable and quiet working environment.

Send An Inquiry

PRODUCT DESCRIPTION SPECIFICATIONS INCLUDES INQUIRY

PRODUCT DESCRIPTION

Power Through Your Workload.

Experience reliable performance with this 996cc 4-stroke diesel engine. Boasting 2900W of power and 3600 RPM, it tackles tough jobs with ease. Built with a rugged aluminum-iron alloy frame and a precision steel camshaft, it’s engineered for durability and smooth running. Our advanced self-spray injection system maximizes fuel efficiency at 6.7 HP, while the forced air cooling and dual-layer muffler keep operations cool, safe, and whisper-quiet.

SPECIFICATIONS

Model	UD178
Displacement Capacity (cc)	296
Engine Type	Single-cylinder,4-Stroke,Air-cooled Diesel Engine
Bore X Strorke(mm)	78X64
Max.Output (HP)/rpm	6.7/3600
Fuel Consumption(g/kWh)	≤285.6
Lubrication Oil	15W-40
Lubrication Oil Volume (L)	1.1
Cooling System	Forced-air
Starting System	Recoil or Electric starter
Governor System	All-speed type，Mechanical Governor
Fuel Tank Capacity (L)	3.3
Noise Level at 7m(dB)	95
Net Weight/Gross Weight (kg)	36/41
Dimension (mm)	475x455x518
20ft Container QTY	240
40ft Container QTY	508
Certificate	EU-Ⅴ

INCLUDES

(1x) Gasoline engine

(1x) Spark plug wrench

(1x) Warranty card

(1x) Owner’s manual
