GW220AEi
GW220AEi Multi-Output Generator | 5-10kW AC+DC+USB for Versatile Use
- Multi-Output Versatility: AC Single Phase + DC + USB output, meets diverse power needs.
- Stable Power Supply: 5.8kW/6.5kW rated AC output, 180/190A continuous current, reliable for heavy loads.
- Large Fuel Capacity: 25L fuel tank, supports long-duration operation without frequent refueling.
- Dual Frequency Compatibility: 50Hz/60Hz frequency, global voltage standards.
- Certified & Reliable: CE/EU-V/EPA certified, 100,000 units/year production capacity, Fuzhou factory quality.
PRODUCT DESCRIPTION

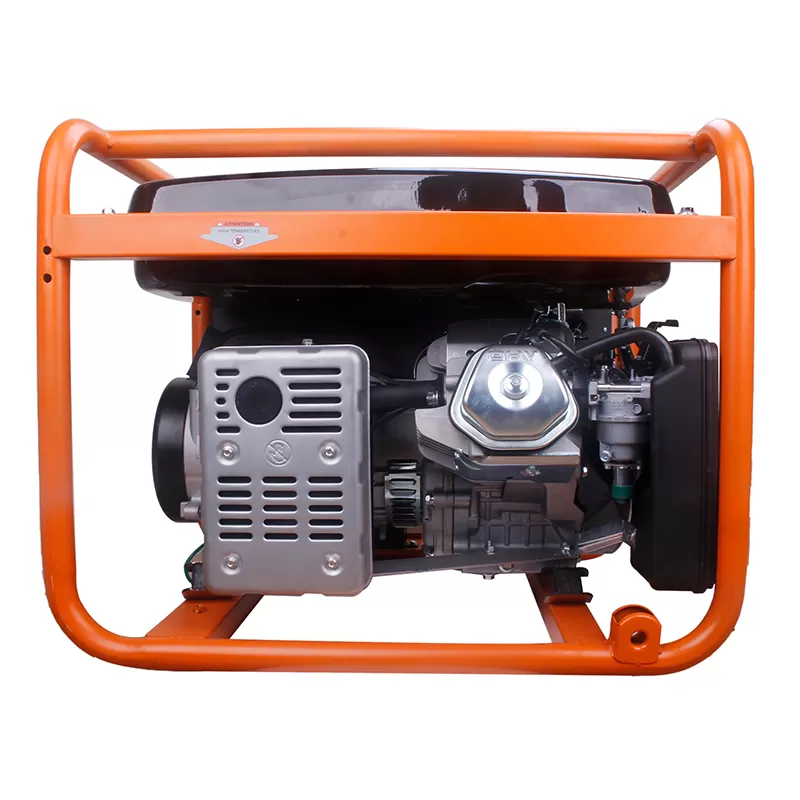

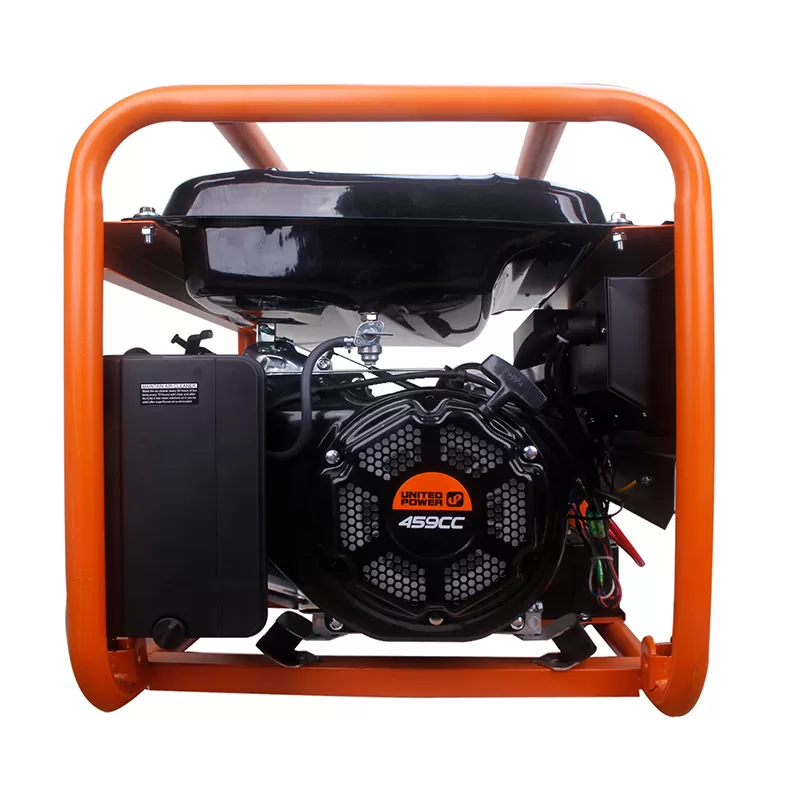

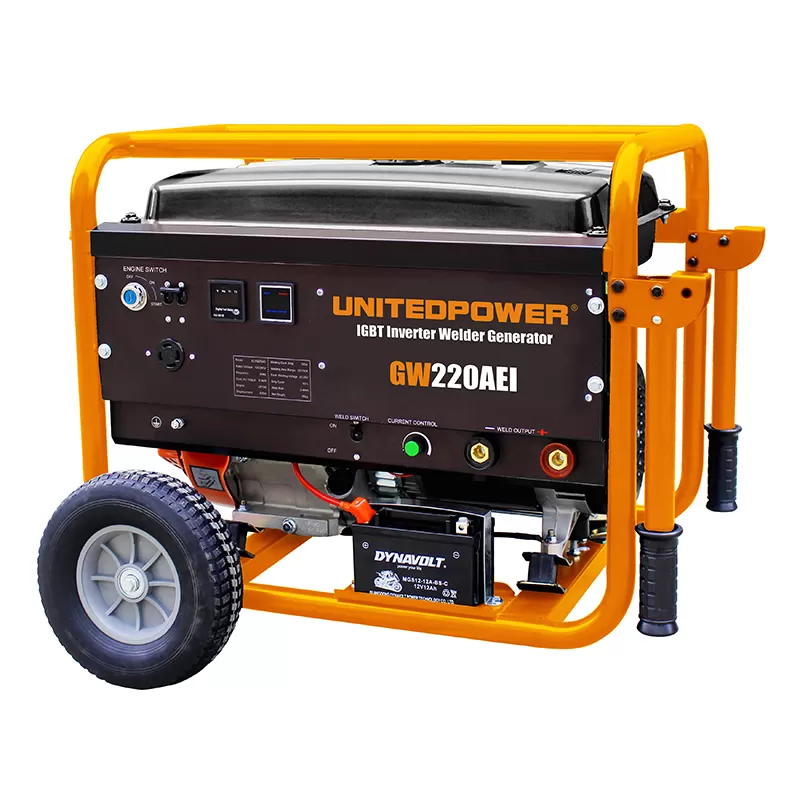

UNITED POWER GW220AEi is a high-performance 5-10kW generator, engineered for versatile power supply scenarios. Featuring hand start and AC Single Phase + DC + USB multi-output design, it delivers 5.8kW/6.5kW rated AC output with 180/190A continuous current, meeting diverse power demands of household, construction, and outdoor use. The 25L large fuel tank ensures long operation time, while 50Hz/60Hz dual frequency compatibility adapts to global voltage standards. With 20-210A adjustable current scope and CE/EU-V/EPA certifications, it guarantees safe and stable performance. Packaged in 717×555×592mm cartons, it is easy to transport. Manufactured in Fuzhou, China, with 100,000 units annual production capacity, the GW220AEi is a reliable, multi-functional power solution for both home backup and on-site work.
SPECIFICATIONS
| Welder generator model# | GW220AEi |

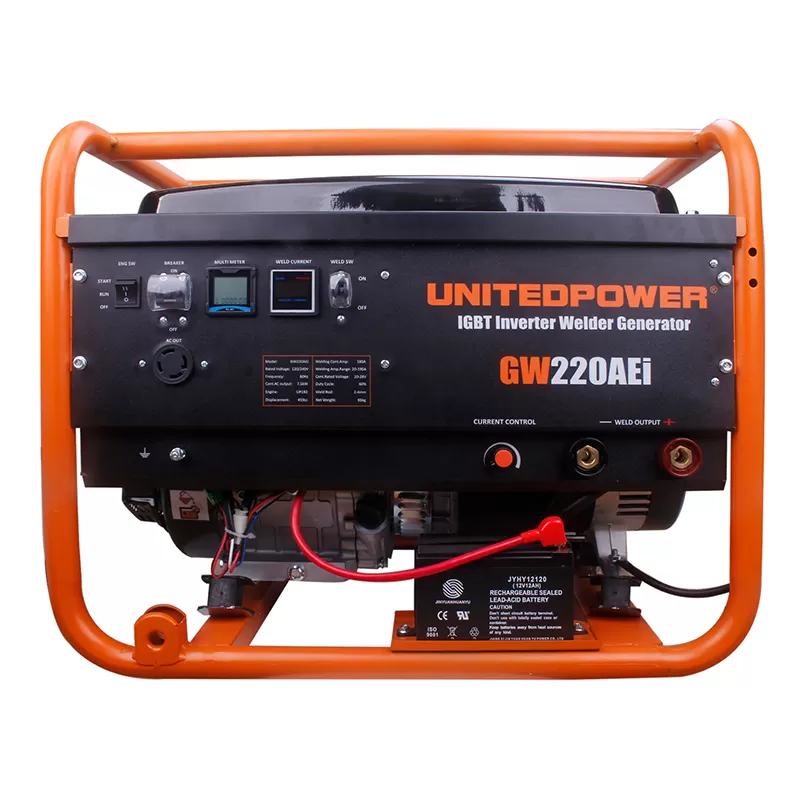

| control panel | 1×ON/OFF key switch 1×VFT meter 1×current meter 1×US socket 1×AC breaker 1×welding ON/OFF switch 1×current adjusting knob 2×welding socket 1×IGBT inverter module |
| Engine | UP192 |
| Frequency(Hz) | 50 /60 |
| Cont.AC Output(W) | 7.0/7.5 |
| Max. AC Output(W) | 7.5/8.0 |
| AC Output Voltage(V) | 110 - 240 |
| Unload Voltage(V) | 60 - 75 |
| Cont. Rated Voltage(V) | 24 - 36 |
| Current Adjustment Scope(A) | 20 - 190 |
| Continuous Load Rate(%) | 60 |
| Fuel tank Capacity(L) | 25 |
| Continuous Work(h) | 7.0/6.0 |
| N.W /G.W. (kg) | 95 / 99 |
| Unit Dim.(L*W*H)(mm) | 700x540x570 775x650x630 |
| Welding Rod Spec.(mm) | 1.6/2.0/2.5/3.2/4.0/5.0 |
INCLUDES
(1x) Spark plug wrench
(1x) Owner’s manual
