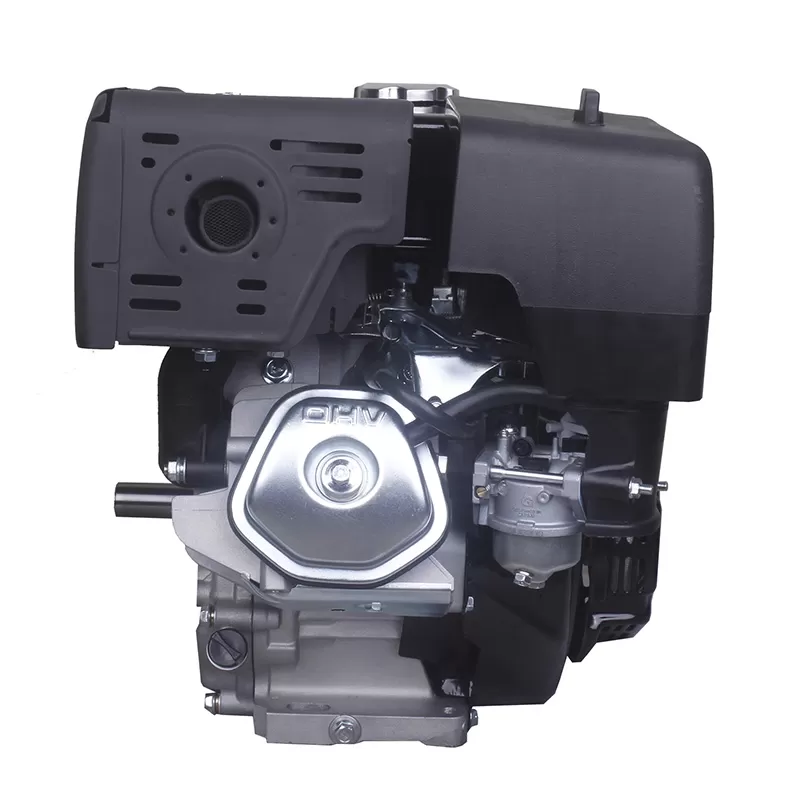

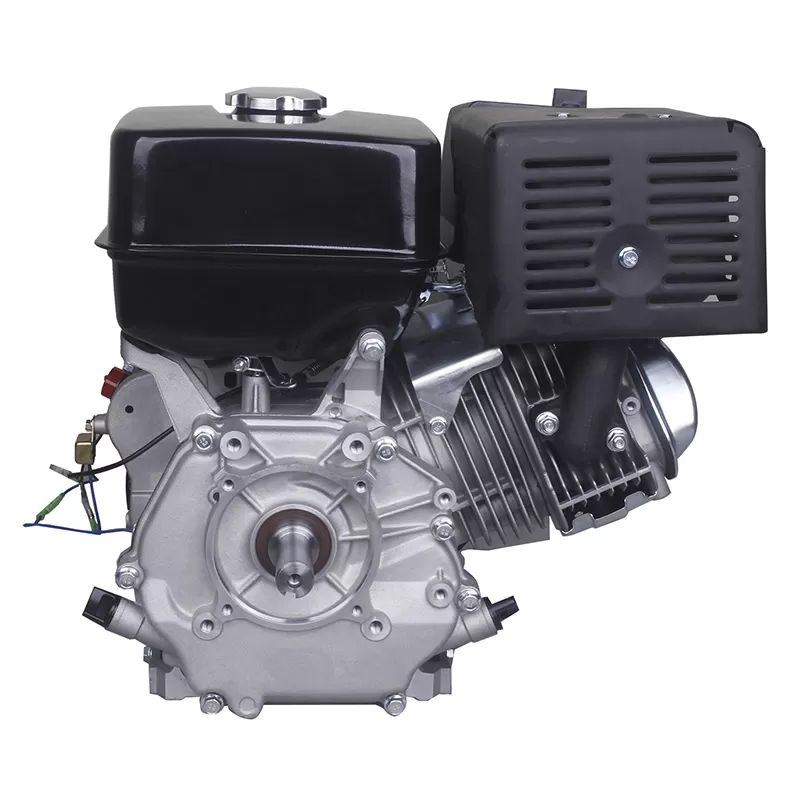

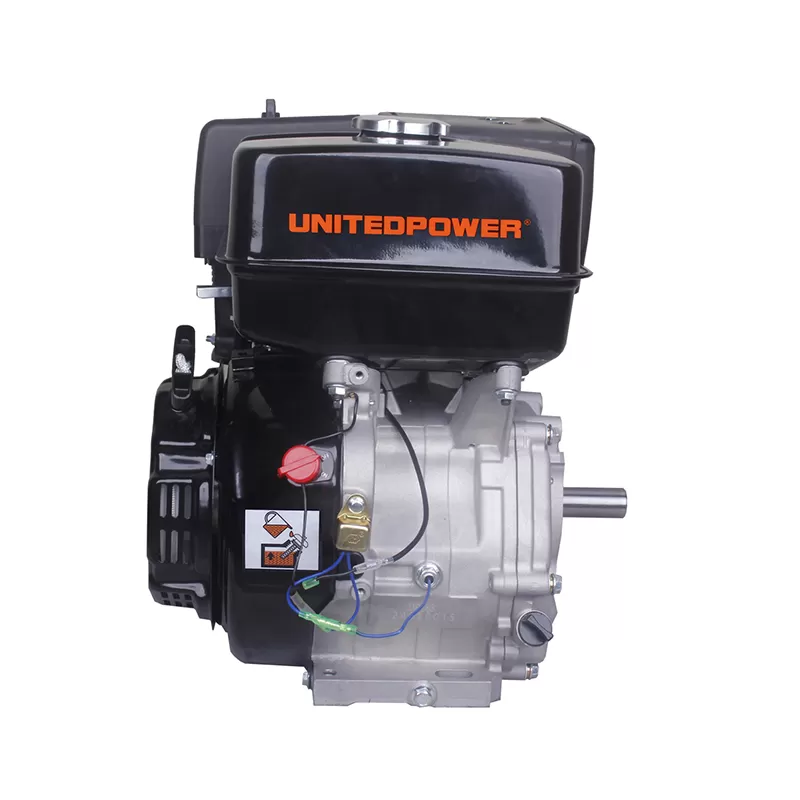

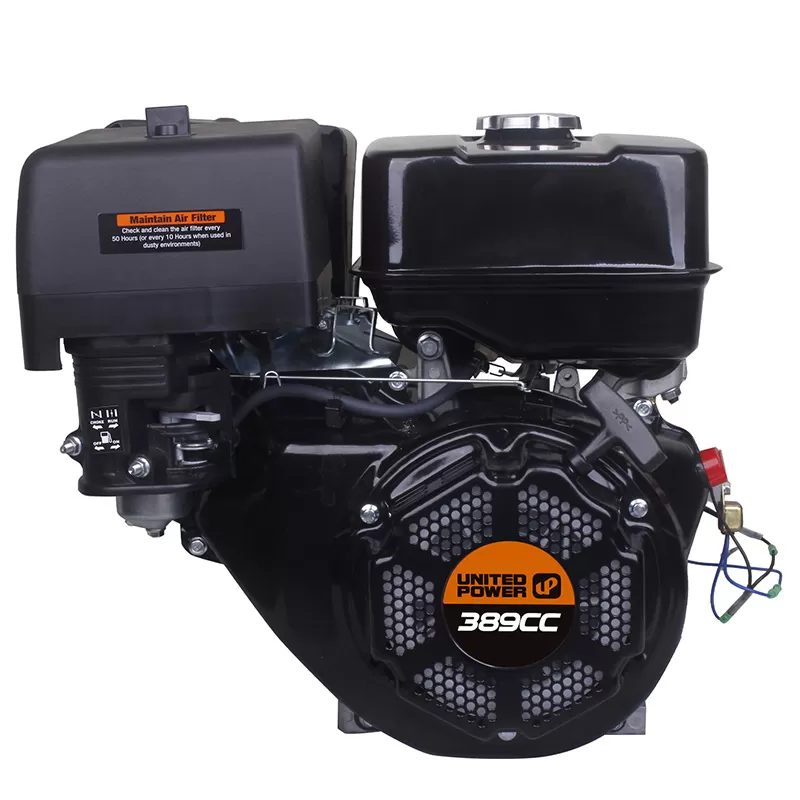

UP188
UP188 4-Stroke Gasoline Engine for Professional Use with 13.0 HP Power
- Powerful 13HP gasoline engine with over 500 continuous hours of life
- Reliable, durable, and easy to start by hand
- Versatile 25.4mm flat key output shaft for various applications
- Cast iron crankshaft and camshaft for increased durability
- Fuel-efficient with precision combustion chamber design and high-quality carburetor.
PRODUCT DESCRIPTION
High-torque 12kW diesel power-plant featuring 800+ nonstop runtime sessions.
Sturdy, trustworthy, effortless pull-cord ignition.
Flexible 32mm keyed output spline for wide-ranging usage.
Reinforced tempered steel main journal and valve train prolonging service longevity.
Consumption-optimized through vortex burning cell design and premium injection system.
SPECIFICATIONS
| Model | UP188 |
| Displacement Capacity (cc) | 389 |
| Max.Output (HP/rpm) | 13 / 3600 |
| Engine Type | Single-cylinder,4-Stroke,Air-cooled,OHV Gasoline Engine |
| Bore X Strorke (mm) | 88X64 |
| Fuel Consumption (g/kWh) | ≤374 |
| Ignition System | Transistorized Magneto lgnition |
| Spark Plug | F6TC |
| Fuel Tank Capacity (L) | 6.5 |
| Lubrication Oil | SAE 10W/30 |
| Lubrication Oil Volume (L) | 1.1 |
| Starting System | Recoil or Electric starter |
| Stop System | Ignition Primary Circuit Ground |
| Noise Level at 7m (dB) | 90 |
| Gross Weight (kg) | 33 |
| Dimension (mm) | 542X500X507 |
| 20ft Container QTY | 176 |
| 40ft Container QTY | 384 |
| Certificate | EPA EU-Ⅴ |
INCLUDES
(1x) Gasoline engine
(1x) Spark plug wrench
(1x) Warranty card
(1x) Owner’s manual
Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
