UP190

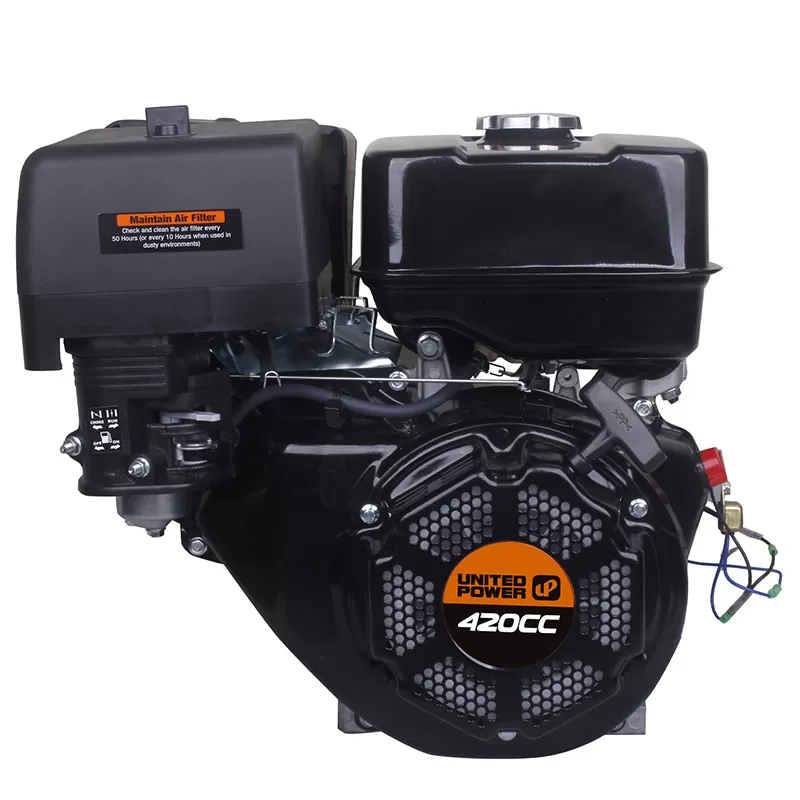

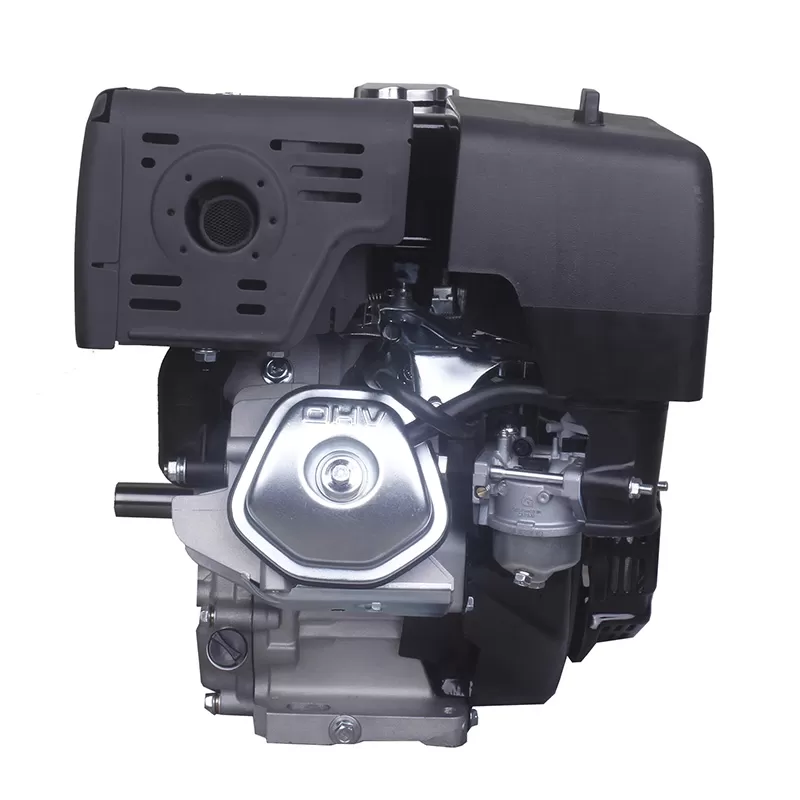

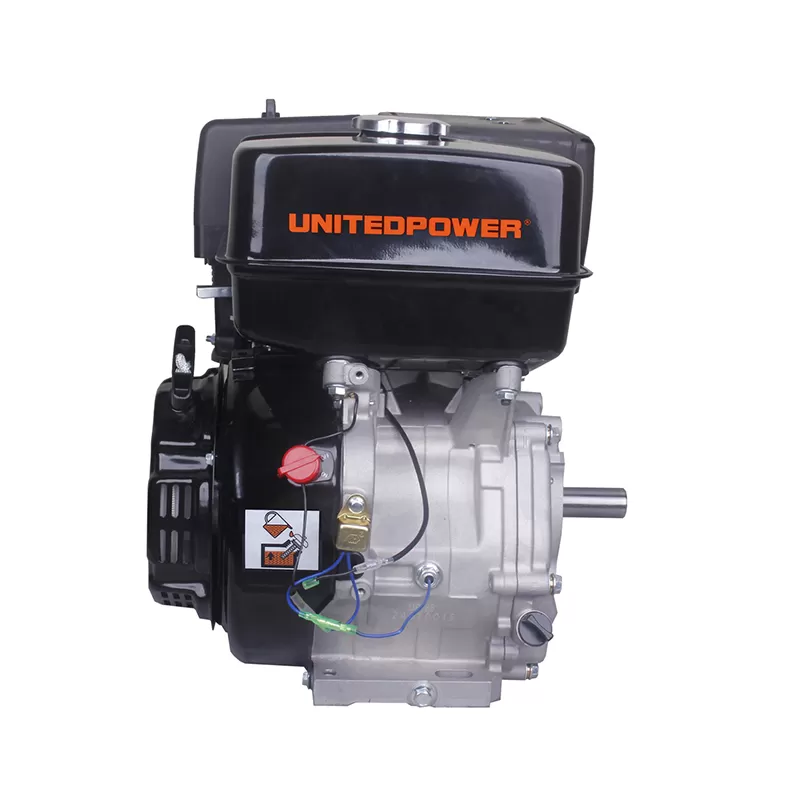

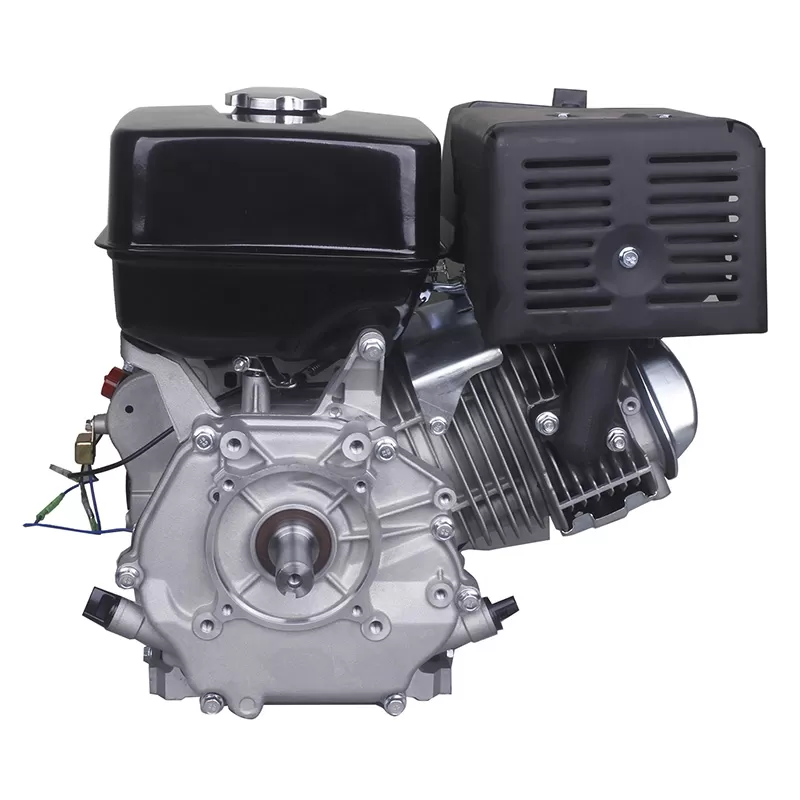

UP190 4-Stroke Gasoline Engine for Professional Use with 14.0 HP Power

Unleash the power with a robust 14HP gasoline engine, built to last over 500 continuous hours
Dependable and rugged, it starts effortlessly with a simple hand start
Versatile 25.4mm flat key output shaft suits a wide range of applications
Engineered with an all-steel crankshaft and camshaft for exceptional durability
Experience optimal fuel efficiency with a precision combustion chamber design and high-quality carburetor.

Send An Inquiry

PRODUCT DESCRIPTION SPECIFICATIONS INCLUDES INQUIRY

PRODUCT DESCRIPTION

Built for endurance, this powerhouse features a 14HP gasoline engine that thrives in harsh working environments while maintaining stable, long-term performance. Starting up is a breeze thanks to its dependable pull-start mechanism—no complex steps required to awaken its impressive power.

Designed for versatility, the 25.4mm flat key shaft seamlessly connects to a wide range of implements. At its core, the all-steel forged crankshaft and camshaft provide unmatched strength and longevity. By combining an optimized combustion structure with a high-quality carburetor, this machine achieves superior fuel efficiency, delivering maximum power while minimizing consumption.

SPECIFICATIONS

Model	UP190
Displacement Capacity (cc)	420
Max.Output (HP/rpm)	14 / 3600
Engine Type	Single-cylinder,4-Stroke,Air-cooled,OHV Gasoline Engine
Bore X Strorke (mm)	90X66
Fuel Consumption (g/kWh)	≤374
Ignition System	Transistorized Magneto lgnition
Spark Plug	F6TC
Fuel Tank Capacity (L)	6.5
Lubrication Oil	SAE 10W/30
Lubrication Oil Volume (L)	1.1
Starting System	Recoil or Electric starter
Stop System	Ignition Primary Circuit Ground
Noise Level at 7m (dB)	90
Gross Weight (kg)	33
Dimension (mm)	542X500X507
20ft Container QTY	176
40ft Container QTY	384
Certificate	EPA EU-Ⅴ CARB

INCLUDES

(1x) Gasoline engine

(1x) Spark plug wrench

(1x) Warranty card

(1x) Owner’s manual

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

FAQ

Here are questions frequently asked by customers. However, when the FAQ doesn’t answer your questions, you can send us a message to ask.

Q Are you a factory or trading company?

We are the manufacturer. Meanwhile, we have our own factory.

Q Where is your factory located?

Our factory is in Fuzhou City, Fujian Province, China. It’s around 4 hour by express train or 2 hour by plane from Guangzhou to our city. Especially, our city has own sea port, Mawei port and Jiangyin port.

Q How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Additionally,the sample order can be finished in 5 days under standard type.

Q What is your terms of payment?

In general, payment≤2500 USD,100% in advance.
Besides, payment ≥ 2500 USD, 30% T/T in advance, balance against BL copy.

Q How about quality control in your factory?

We strictly operate full QC process, such as incoming inspection, process inspection and final inspection. In other word, each product must be tested in production line before shipping.
