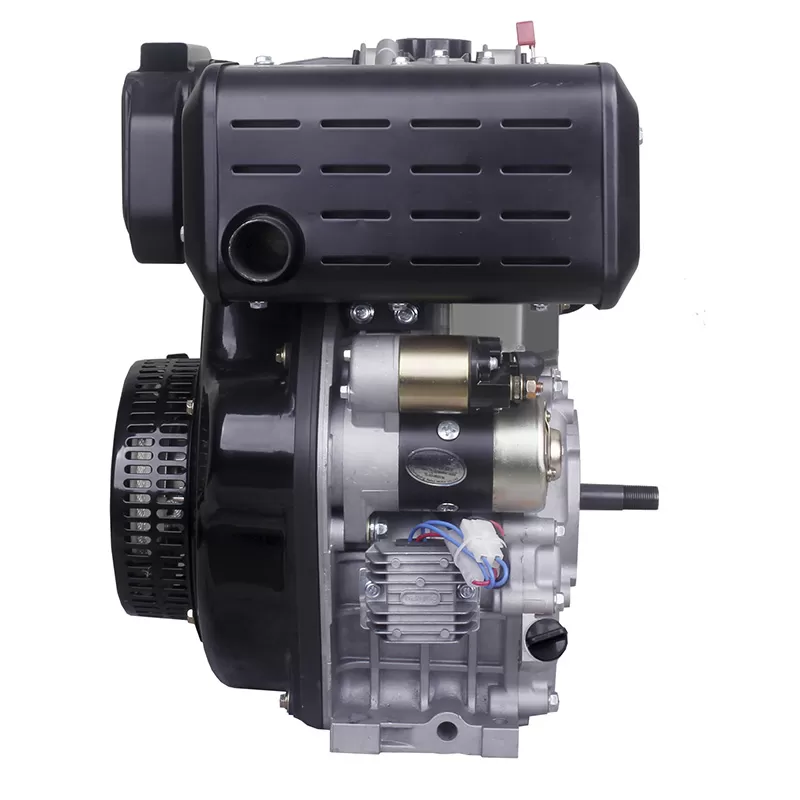

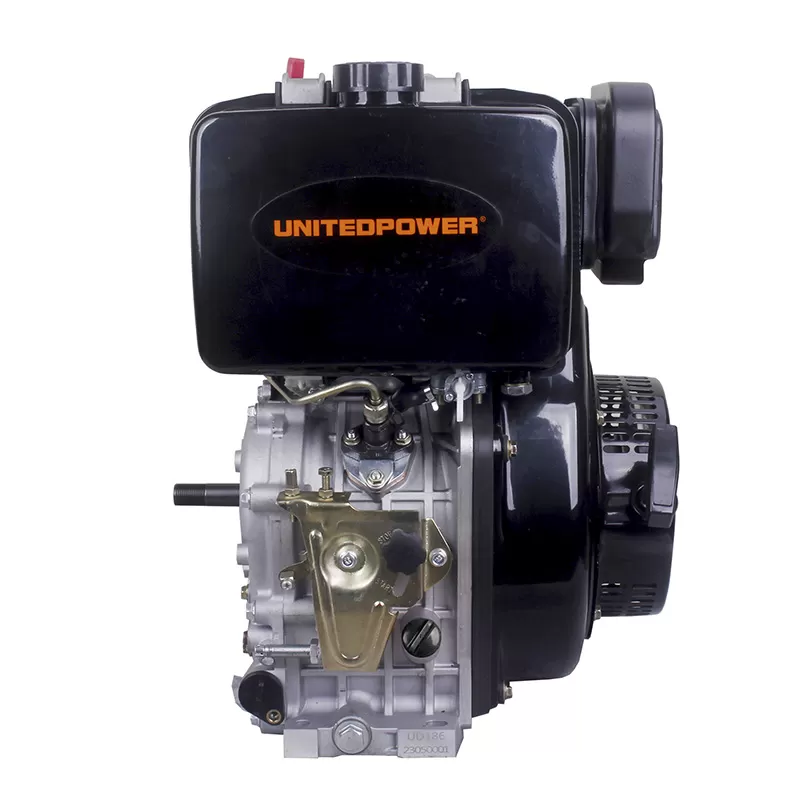

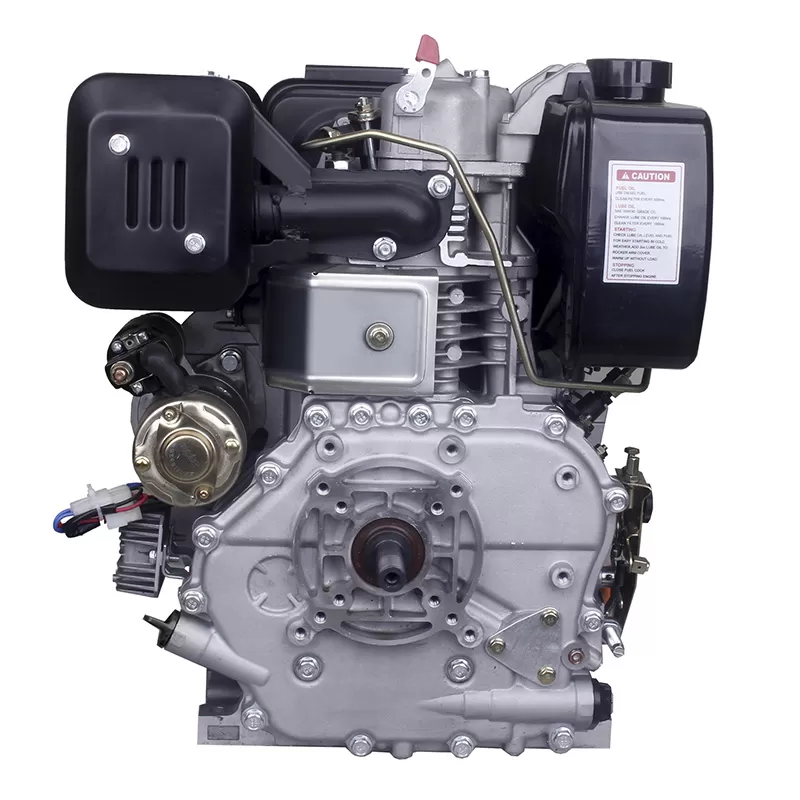

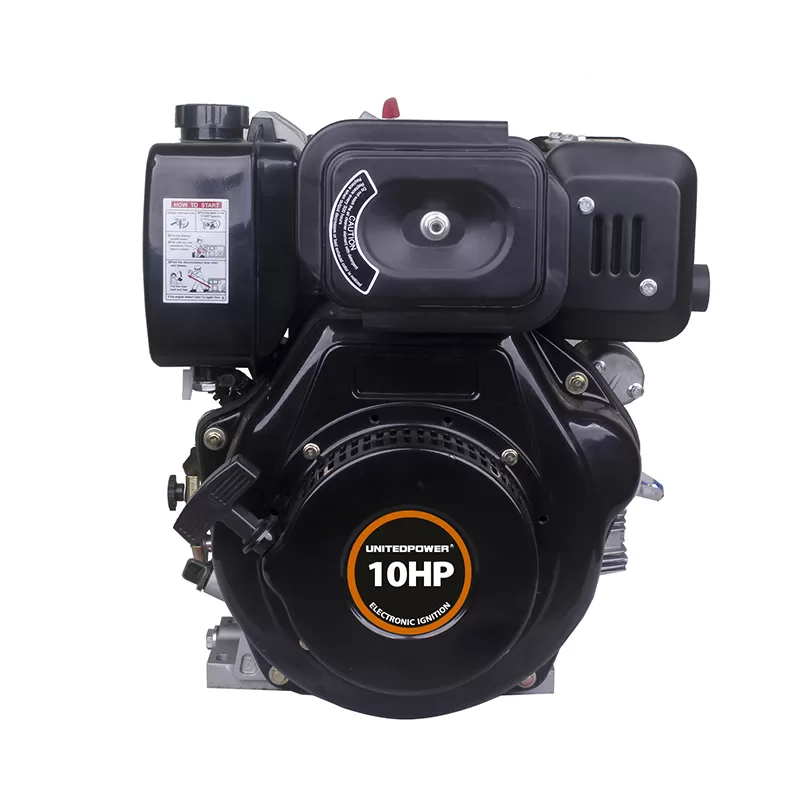

UD186
4-Stroke Diesel Engine with 10.0 HP Power
- The powerful and efficient 418cc engine provides extraordinary power performance and increases excellent fuel efficiency.
- Oil alarm system is equipped on this machine: when the oil level is too low, the gasoline engine will automatically stop running to avoid specific damage to the engine.
- Adopt cast iron cylinder liner, forged steel crankshaft and metal cam to provide high structure strength and excellent wear resistance.
- Cylinder liners are manufactured with different honing precision, so that the engine has an excellent exhaust.
- General purpose engine with universal mounting plate, great for recreational vehicle, construction, farm, and various applications.
PRODUCT DESCRIPTION
The United Power UP186 4-stroke gasoline engine delivers years of power and performance in construction, maintenance, or power generation equipment. This gasoline engine has a maximum power output of 10.0 hp, ideal for semi-professional construction, maintenance, or power generation projects. This gasoline engine is economical due to the savings in fuel consumption, is silent to produce a lower noise level, and requires little maintenance throughout its use. This 4-stroke gasoline engine is ideal for water pumps, sprayers, air compressors, food processing equipment, construction, agriculture, and power boats and vehicles.
SPECIFICATIONS
| Model | UD186 |
| Displacement Capacity (cc) | 418 |
| Engine Type | Single-cylinder,4-Stroke,Air-cooled Diesel Engine |
| Bore X Strorke(mm) | 86X72 |
| Max.Output (HP)/rpm | 10/3600 |
| Fuel Consumption(g/kWh) | ≤285.7 |
| Lubrication Oil | 15W-40 |
| Lubrication Oil Volume (L) | 1.65 |
| Lubrication System | Forced Lubrication Via Trochoids Pump |
| Cooling System | Forced-air |
| Starting System | Recoil or Electric starter |
| Governor System | All-speed type，Mechanical Governor |
| Fuel Tank Capacity (L) | 5.4 |
| Noise Level at 7m(dB) | 96 |
| Net Weight/Gross Weight (kg) | 50/55 |
| Dimension (mm) | 525x480x562 |
| 20ft Container QTY | 192 |
| 40ft Container QTY | 400 |
| Certificate | EU-Ⅴ |
INCLUDES
(1x) Gasoline engine
(1x) Spark plug wrench
(1x) Warranty card
(1x) Owner’s manual
Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
RELATED PRODUCTS
GG7200M
4-Stroke Diesel Engine with 10.0 HP Power
LEARN MORE
GG6200M
4-Stroke Diesel Engine with 10.0 HP Power
LEARN MORE

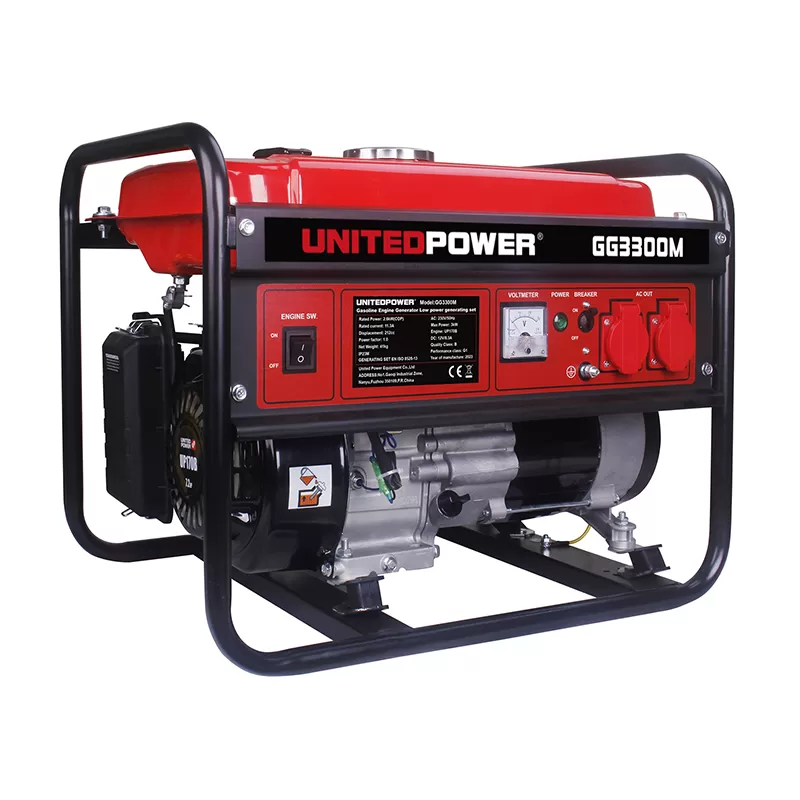

GG3300M
4-Stroke Diesel Engine with 10.0 HP Power
LEARN MORE

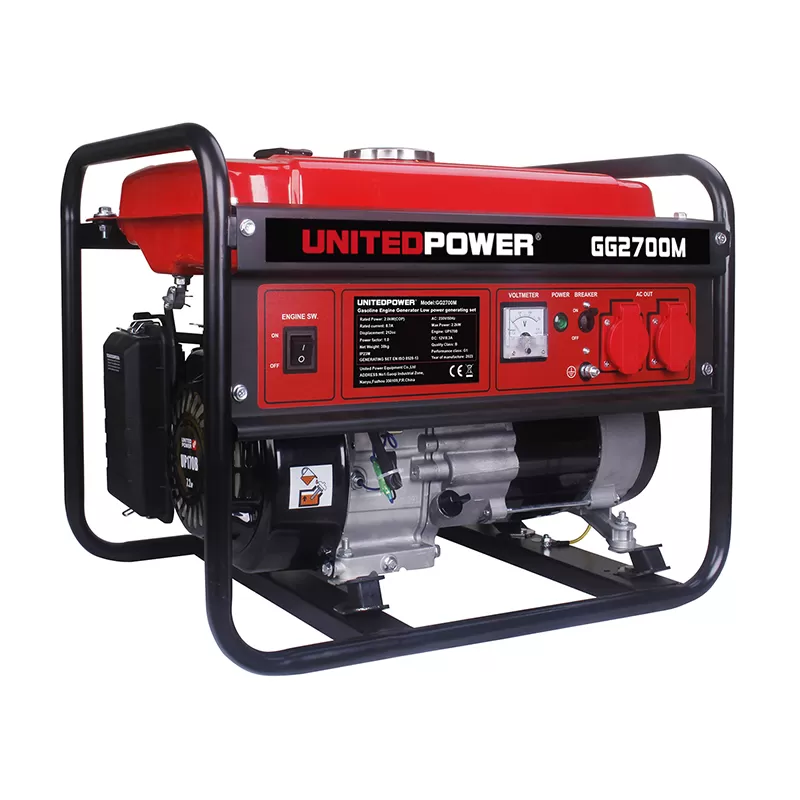

GG2700M
