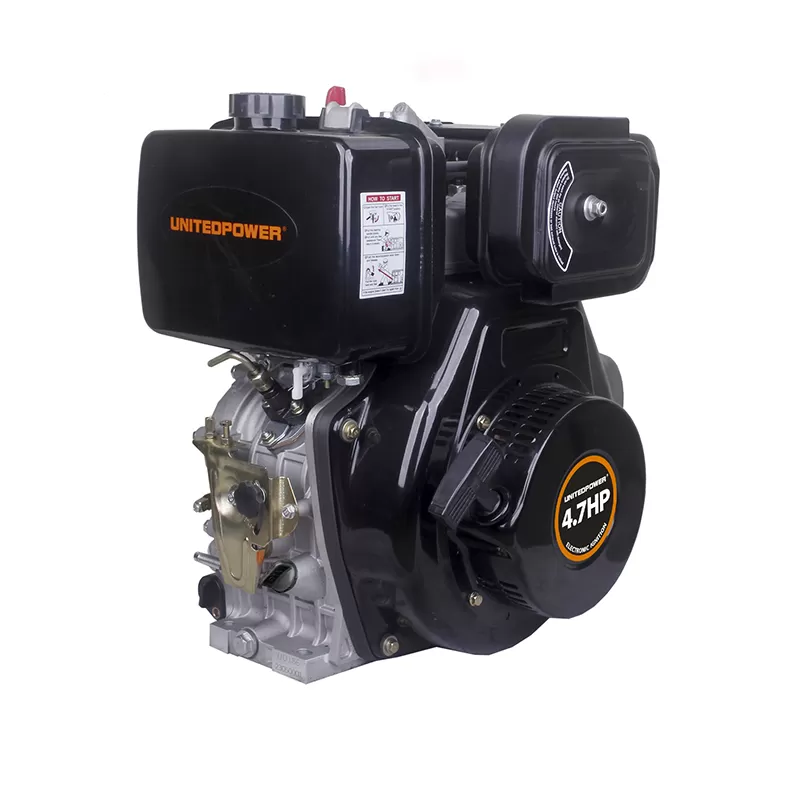

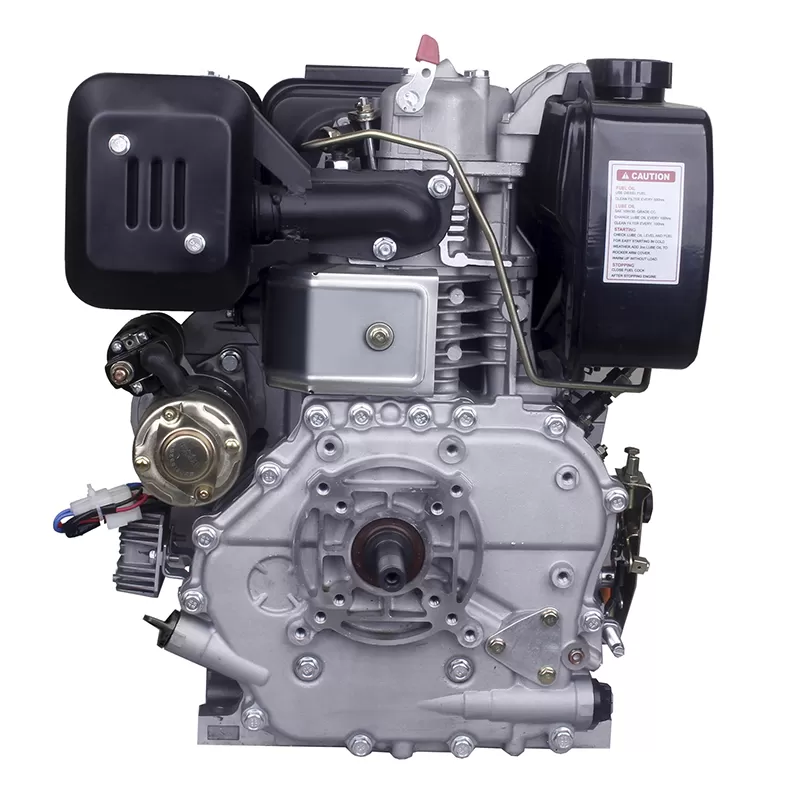

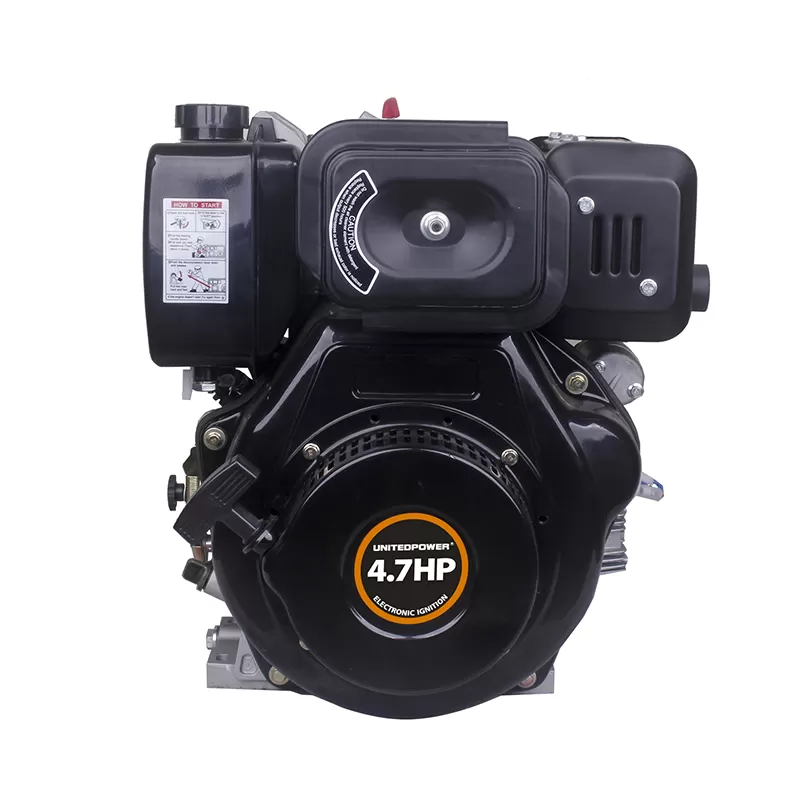

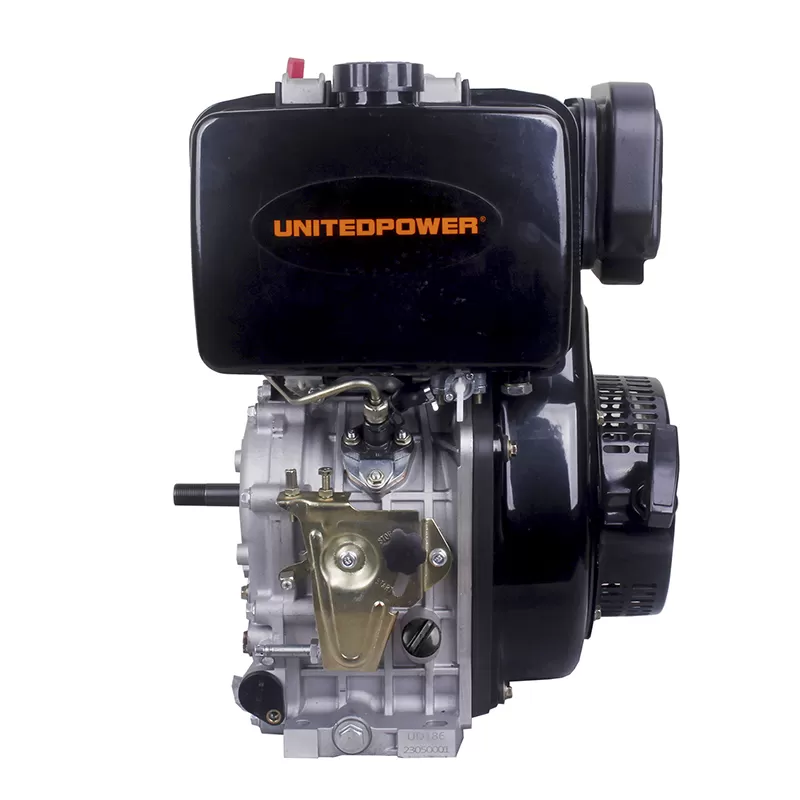

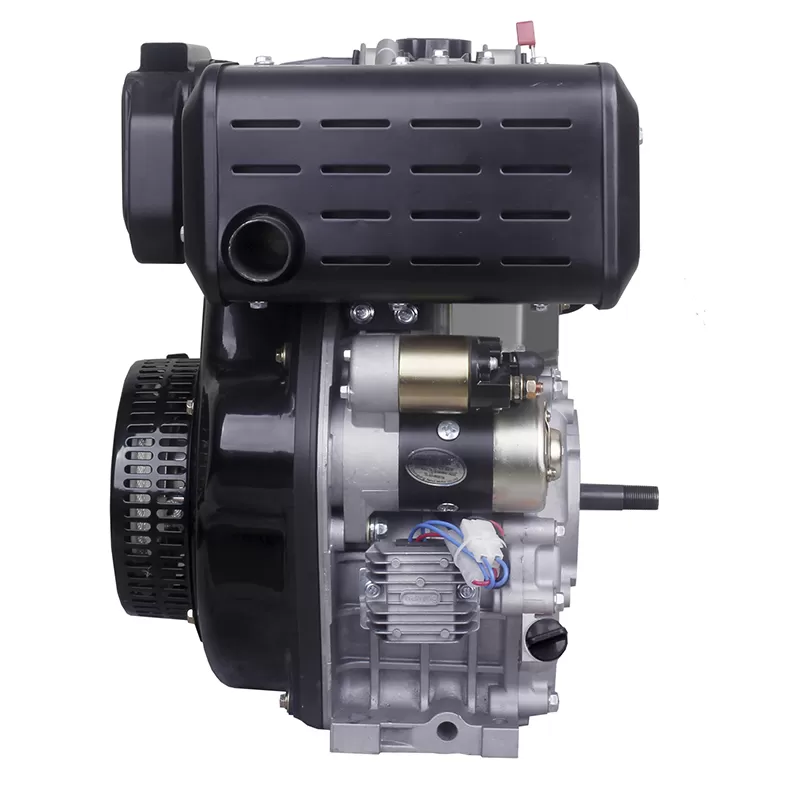

UD170
4-Stroke Diesel Engine with 4.7 HP Power
- 【High-quality Material】: 4.7HP diesel engine is made of high-quality iron, aluminum, and die-casting aluminum, with a sturdy structure and good heat dissipation.The surface is treated with environmentally friendly spray molding technology, which can improve the corrosion resistance of the engine and extend its service life.
- 【Powerful and Efficient】: With a power of up to 6.3kw and a speed of up to 3,600rpm, this four-stroke engine can provide you with strong power to increase your productivity and save you time and energy.
- 【Large Fuel Tank Capacity】: The fuel tank of this diesel motor holds 0.63 gal of fuel. The large capacity allows you to use it continuously with fewer interruptions without the need for frequent refueling.
- 【Stable Engine】: A quality air filter can prevent airborne impurities and dust from entering the engine interior, improving engine performance and extending service life. Moreover, it adopts a single-valve direct fuel injection system, which can improve fuel utilization efficiency and reduce engine wear.
- 【Easy to Use】: Diesel engine adopts a manual recoil start method, which is more convenient for your operation and allows you to use it more quickly for work. Moreover, the ergonomic design knob can position at any speed. It is also equipped with a throttle cable mounting bracket, which can be installed as needed.
PRODUCT DESCRIPTION
This 4.7HP diesel engine is constructed from premium cast iron, aluminum, and die-cast aluminum, delivering a robust structure and excellent heat dissipation. Its surface is treated with an eco-friendly powder-coating process that significantly enhances corrosion resistance and effectively extends the unit's service life.
As a four-stroke power unit, it delivers an output of 6.3kW at a maximum speed of 3,600 rpm, greatly boosting operational efficiency while saving you time and effort. The large 0.63-gallon fuel tank supports extended continuous runtime, minimizing the frequency of refueling.
The engine is equipped with a high-quality air filter to effectively block impurities and dust from entering the combustion chamber, thereby optimizing performance and longevity. Additionally, the single-valve direct injection fuel system improves fuel efficiency and reduces component wear.
Starting is made easy via a manual recoil rope, allowing for quick deployment. Furthermore, the ergonomically designed knob allows for variable speed positioning, and the included throttle cable mounting bracket offers flexible installation options to suit your needs.
SPECIFICATIONS
| Model | UD170 |
| Displacement Capacity (cc) | 211 |
| Engine Type | Single-cylinder,4-Stroke,Air-cooled Diesel Engine |
| Bore X Strorke(mm) | 75X55 |
| Max.Output (HP)/rpm | 4.7/3600 |
| Fuel Consumption(g/kWh) | ≤288.3 |
| Lubrication Oil | 15W-40 |
| Lubrication Oil Volume (L) | 0.8 |
| Lubrication System | Forced Lubrication Via Trochoids PumpForced Lubrication Via Trochoids Pump |
| Cooling System | Forced-air |
| Starting System | Recoil or Electric starter |
| Governor System | All-speed type，Mechanical Governor |
| Fuel Tank Capacity (L) | 2.4 |
| Noise Level at 7m(dB) | 93 |
| Net Weight/Gross Weight (kg) | 29/34 |
| Dimension (mm) | 427x380x462 |
| 20ft Container QTY | 400 |
| 40ft Container QTY | 830 |
INCLUDES
(1x) Gasoline engine
(1x) Spark plug wrench
(1x) Warranty card
(1x) Owner’s manual
