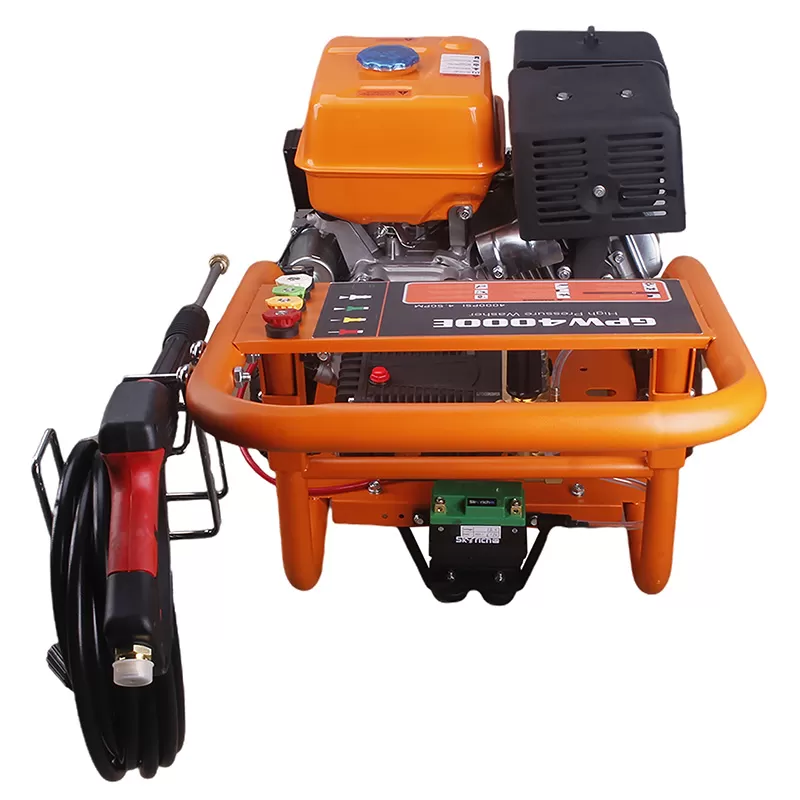

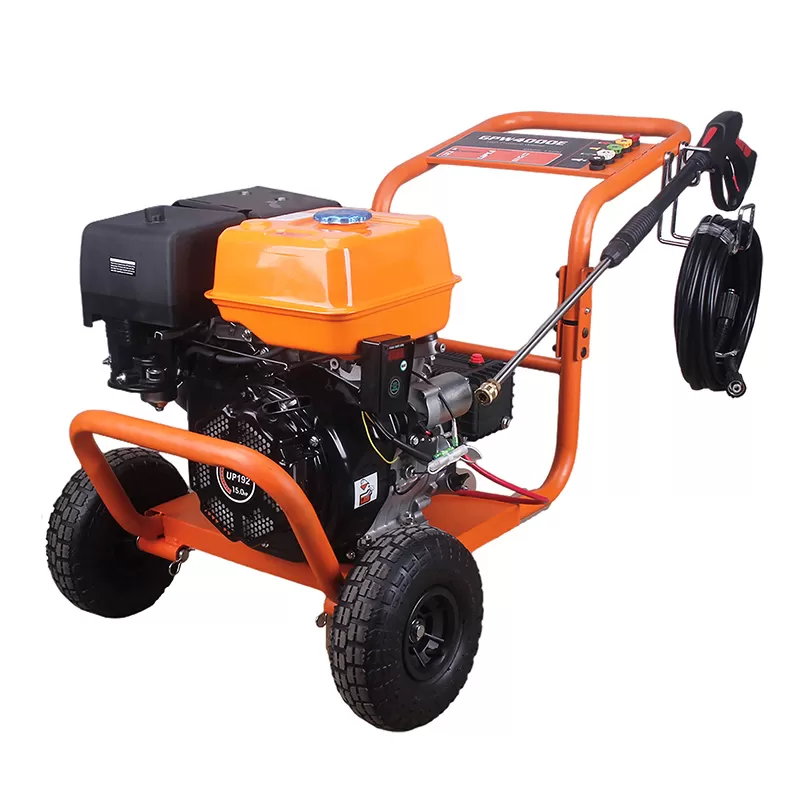

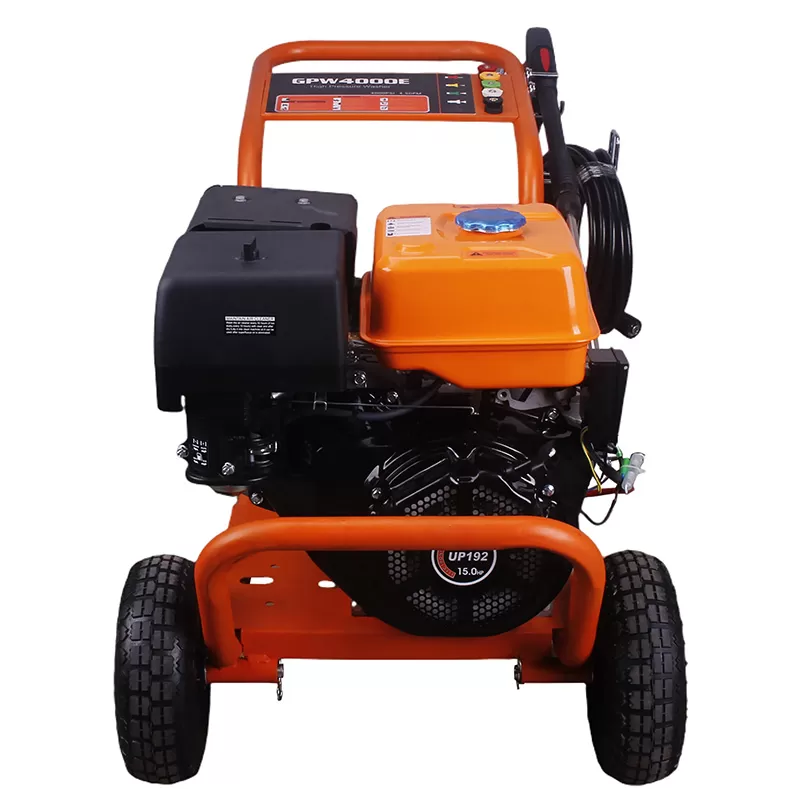

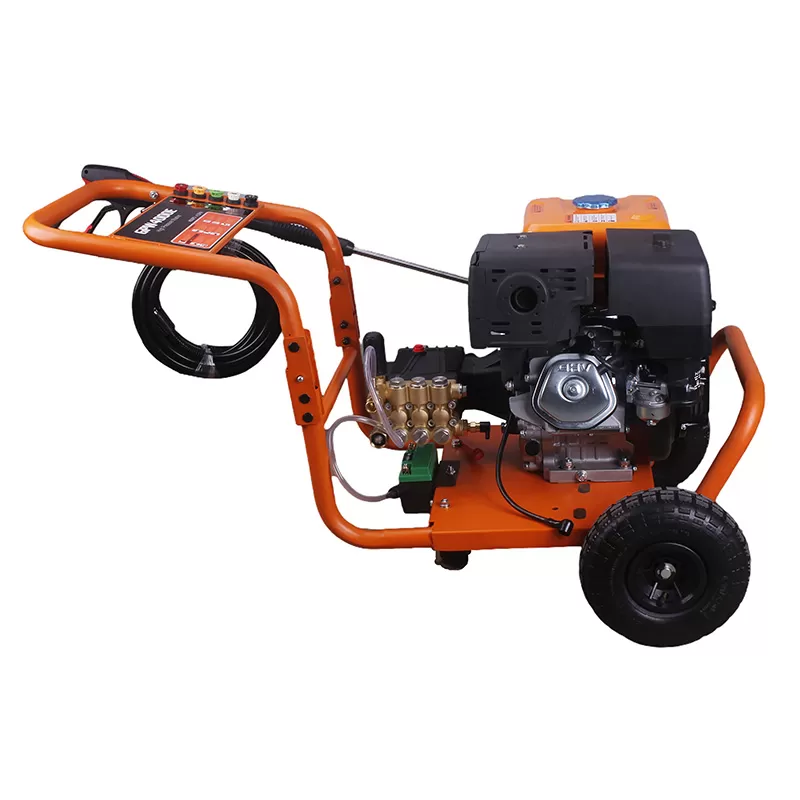

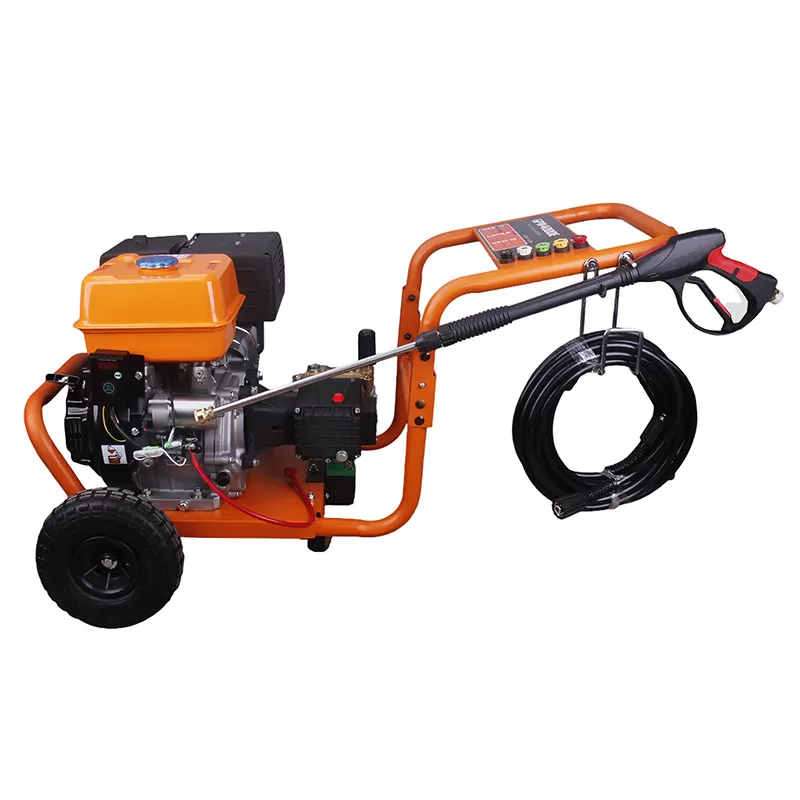

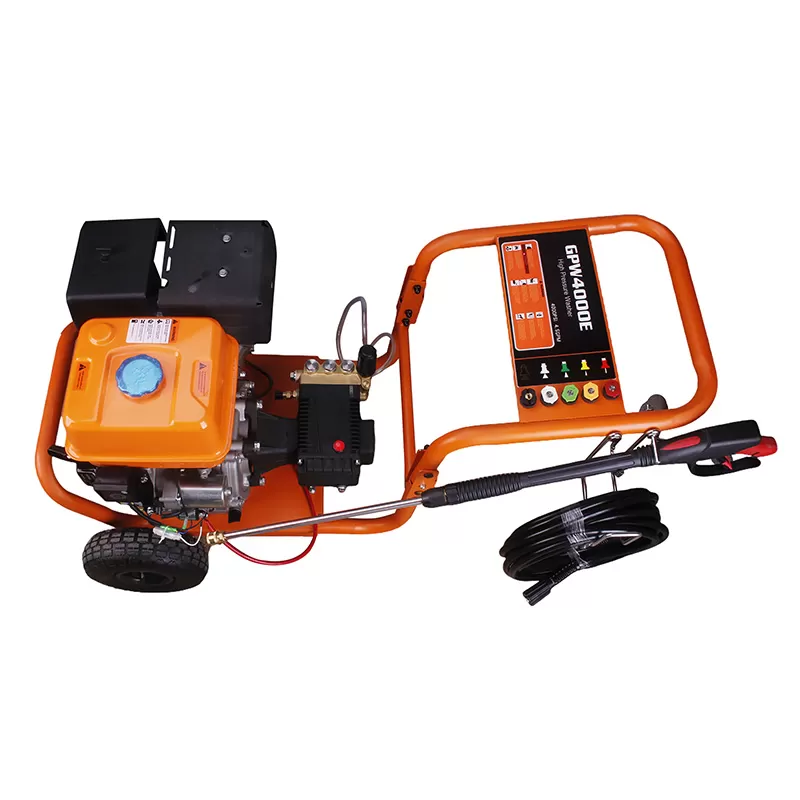

GPW4000E+B

4000PSI gasoline high pressure washer

  • More stable & lower center of gravity Horizontal layout reduces vibration and prevents tipping during heavy-duty cleaning.
  • Stronger load capacity & durability Better structural rigidity for high-pressure and long-hour operation.
  • Easy maintenance & service Engine, pump and accessories are more accessible for repair and upkeep.
  • Suitable for heavy-duty tasks Ideal for industrial, construction, farming and large-area cleaning jobs.
  • Better heat dissipation Horizontal design improves airflow, keeping engine and pump cooler during continuous use.
Send An Inquiry

PRODUCT DESCRIPTION

Stable, strong and capable - this horizontal high-pressure cleaning machine is designed for long-term, large-area continuous cleaning operations.

Different from the traditional vertical model, the horizontal layout lowers the center of gravity of the engine, pump body and water tank near the chassis, which brings two direct benefits: first, it does not shake or warp when pushed on uneven ground; second, the whole machine is rock stable when running at high speed, without the annoying vibration of "pacing in place".

The fuselage is elongated, with the width slightly greater than the height. It is equipped with large-diameter pneumatic tires and a folding push-pull handle. Whether it is crossing the gravel road, getting on and off the pickup bed, or dragging it into the dirt on the farm, it is as easy as pushing a small luggage cart. The longer chassis also leaves room for large-capacity fuel tanks and large water tanks (or self-priming interfaces) - once you fill up the oil and connect the water source, you can continuously wash an entire parking lot, farm fence or construction site exterior wall without having to frequently turn back in the process.

Another hidden advantage of the horizontal structure is the ease of maintenance. The engine and pump body are arranged side by side, and the oil filling port, spark plug, air filter, and sealing components of the pump body are all located on the top or side. There is no need to bend down to reach into narrow gaps, and the time for replacing wearing parts is shortened by half. Some models can even disassemble the pump body separately to facilitate winter storage or long-distance transportation.

In terms of cleaning capabilities, it continues the traditional advantages of gasoline high-pressure cleaners: no power supply is required, and water comes immediately after startup; equipped with a large-diameter high-pressure pipe and a quick-connect spray gun, the water pressure is enough to peel off condensed sludge, stubborn scale, and dry concrete residue attached to the equipment. At the same time, because horizontal models usually have a larger heat dissipation area, the performance degradation of continuous operation for more than half an hour is much lower than that of compact models, and they are capable of the high-intensity task of "washing from morning to evening".

SPECIFICATIONS

Model

GPW4000E+B

Rated Flow(GPM/LPM)

4.5/17.1

Pump type

Triplex plunger/brass head

Rated pressure(psi/bar)

3200/220

Max. pressure(psi/bar)

4000/276

Thermal protection

Yes

Hose Length(mm)

7.1m

Nozzle spec.

0°,15°,25°,40°and chemical nozzle

Pressure Nozzle spec.

50#;1/4"QC Nozzle

Boot

Recoil or Electric

Engine model

UP192E

Engine type

Horizontal,4-stroke,air-cooled,OHV gasoline engine

Displacement(cc)

459

Power(HP/rpm)

15/3600

Rated output(rpm)

3400

Fuel tank capacity(L)

6.5

Unit Dim(L×W×H)(mm)

1078X594X739

Packing Dim(L×W×H)(mm)

755X480X520

Container quantity(20ft /40ft)

112/228

Net weight/ Gross weight(kg)

59.5/63.5

Rack diameter (mm)

Φ32

Wheel(pneumatic / plastic)

10inch pneumatic

INCLUDES

(1x) Spark plug wrench

(1x) Owner’s manual

Seeking high-quality accessories for your machine? Submit an inquiry now!

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

FAQ

Here are questions frequently asked by customers. However, when the FAQ doesn’t answer your questions, you can send us a message to ask.

We are the manufacturer. Meanwhile, we have our own factory.
Our factory is in Fuzhou City, Fujian Province, China. It’s around 4 hour by express train or 2 hour by plane from Guangzhou to our city. Especially, our city has own sea port, Mawei port and Jiangyin port.
Ordinarily, it costs 20-25 workdays for 2x40ft containers. Additionally,the sample order can be finished in 5 days under standard type.
In general, payment≤2500 USD,100% in advance.
Besides, payment ≥ 2500 USD, 30% T/T in advance, balance against BL copy.
We strictly operate full QC process, such as incoming inspection, process inspection and final inspection. In other word, each product must be tested in production line before shipping.
