UP156

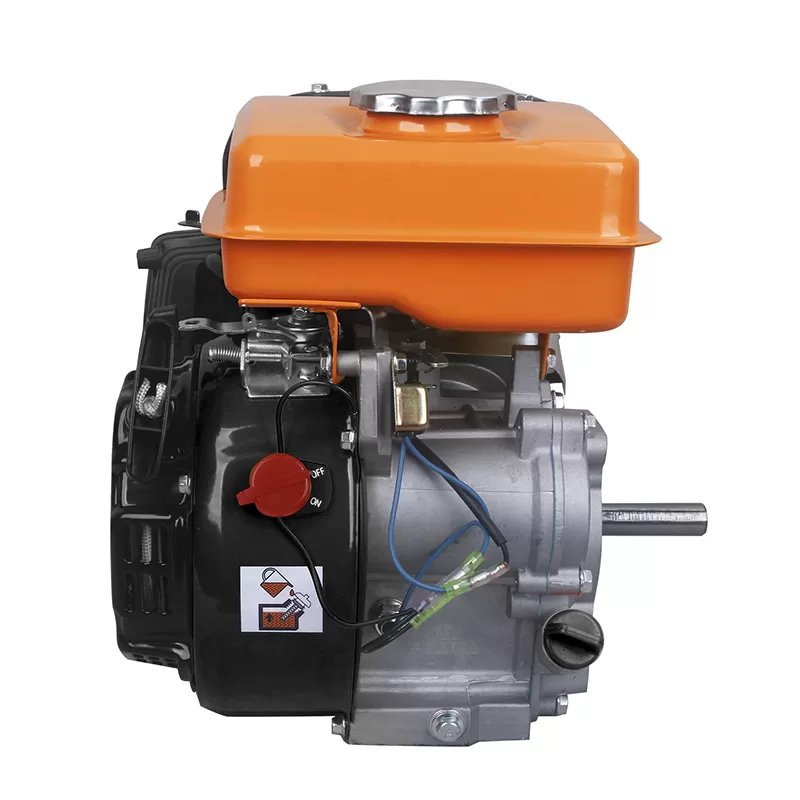

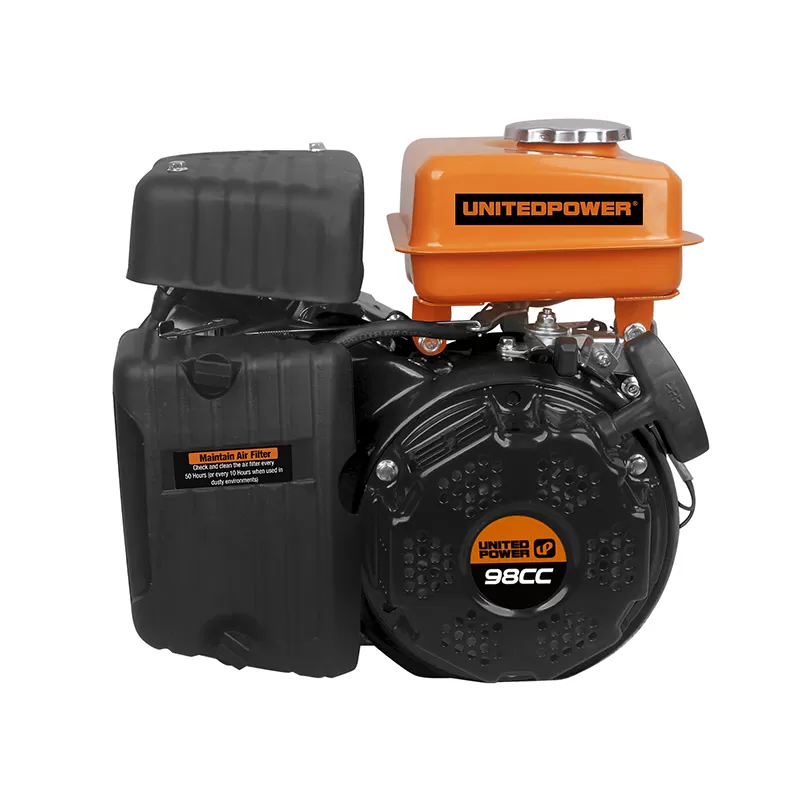

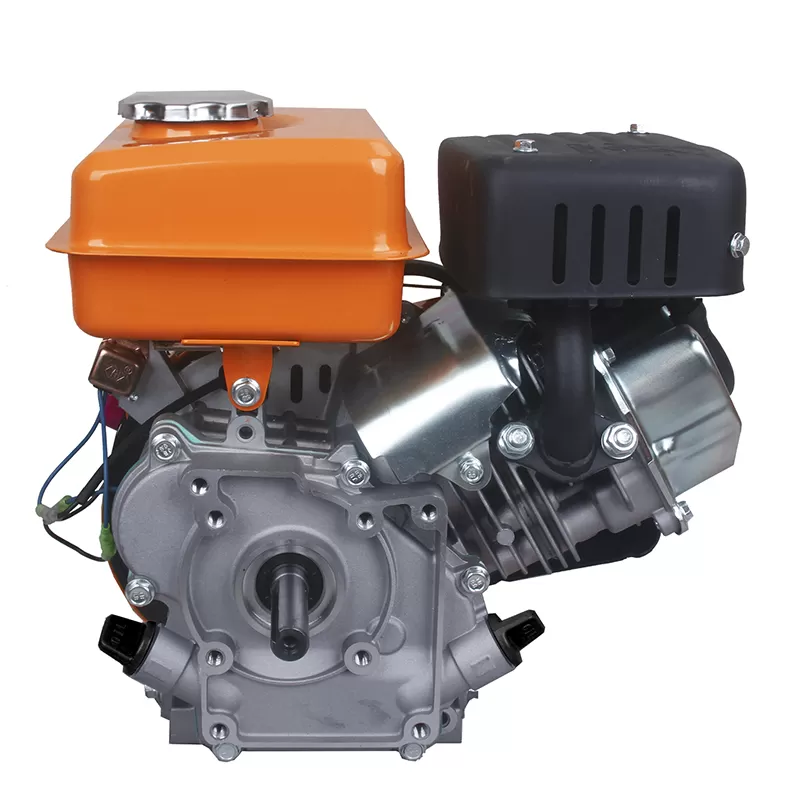

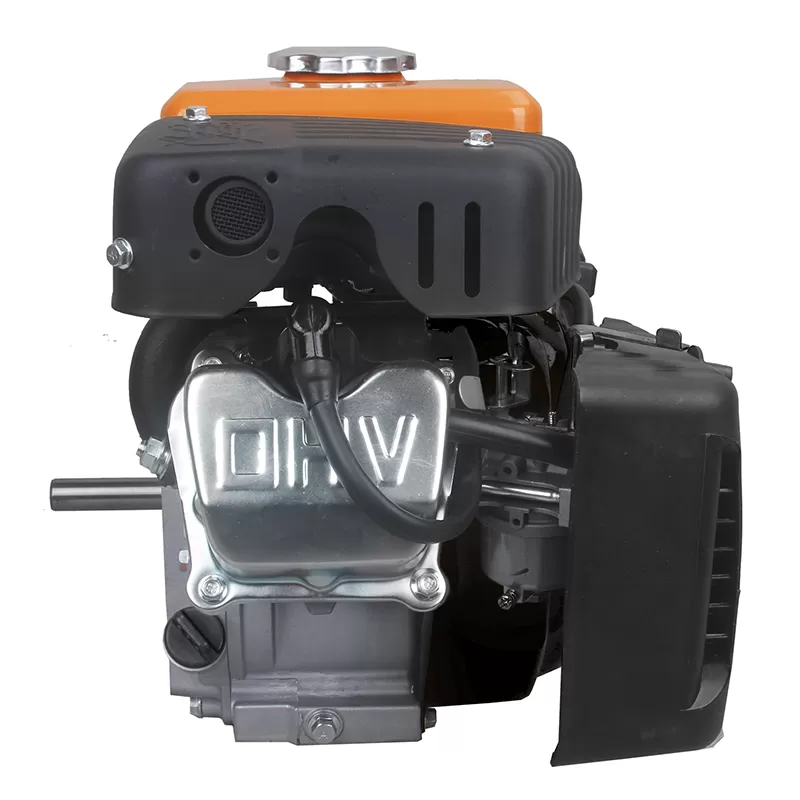

UP156 4-Stroke Gasoline Engine with 2.1 HP Power
- Powerful 2.1HP gasoline engine with over 500 continuous hours of life
- Reliable, durable, and easy to start by hand
- 19.5mm flat key output shaft for versatile applications
- Cast iron crankshaft and camshaft for increased durability
- Precision combustion chamber design and high-quality carburetor for improved fuel efficiency.
PRODUCT DESCRIPTION
Heavy-duty endurance: Runs continuously for over 500 hours – built for daily commercial workloads.
User-friendly starting: Reliable hand-start mechanism requires minimal effort.
Wide compatibility: 19.5mm flat key output shaft connects easily to pumps, tillers, and machinery.
Long-life core components: Cast iron crankshaft and camshaft resist wear under sustained loads.
Fuel-saving design: Precision combustion chamber plus premium carburetor lowers fuel consumption and emissions.
SPECIFICATIONS
| Model | UP156 (Honda) |
| Displacement Capacity (cc) | 98 |
| Max.Output (HP/rpm) | 2.7 / 3600 |
| Engine Type | Single-cylinder, 4-Stroke, Air-cooled, OHV Gasoline Engine |
| Bore X Strorke (mm) | 56X40 |
| Fuel Consumption (g/kWh) | ≤450 |
| Ignition System | Transistorized Magneto lgnition |
| Spark Plug | E7TC |
| Fuel Tank Capacity (L) | 1.6 |
| Lubrication Oil | SAE 10W/30 |
| Lubrication Oil Volume (L) | 0.4 |
| Starting System | Recoil or Electric starter |
| Stop System | Ignition Primary Circuit Ground |
| Noise Level at 7m (dB) | 72 |
| Gross Weight (kg) | 11.5 |
| Pavkage Dimension (mm) | 320 x 290 x 315 |
| 20ft Container QTY | 594 |
| 40ft Container QTY | 1200 |
| Certificate | EU-V |
INCLUDES
(lx) Gasoline engine
(lx) Spark plug wrench
(lx) Warranty card
(lx) Owner's manual
Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
