Name: IW160T
Brand: United Power
SKU: IW160T
Availability: InStock

Home / Generators / Welder Generators / IW160T

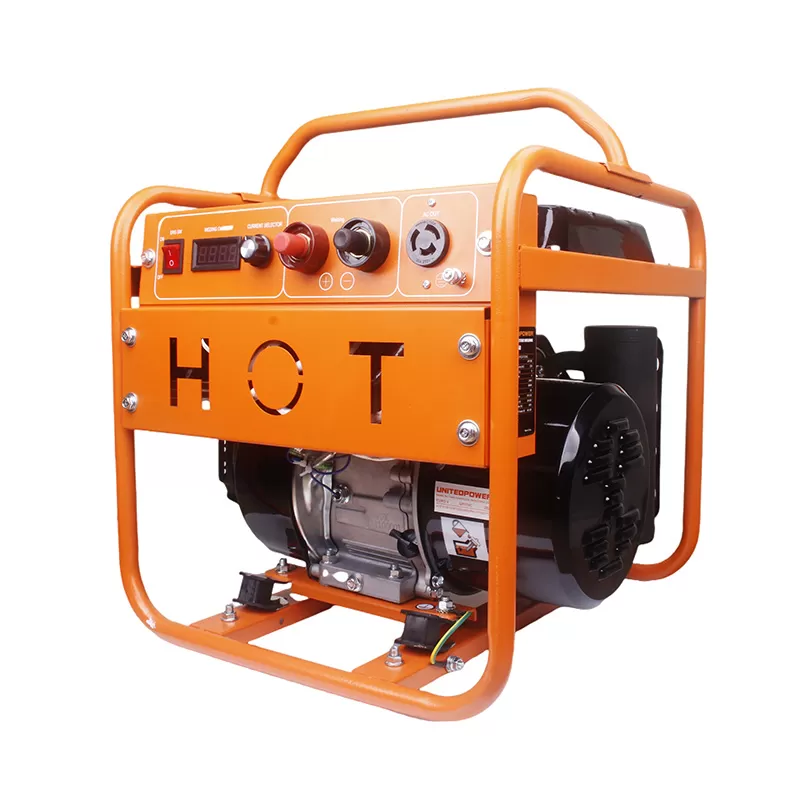

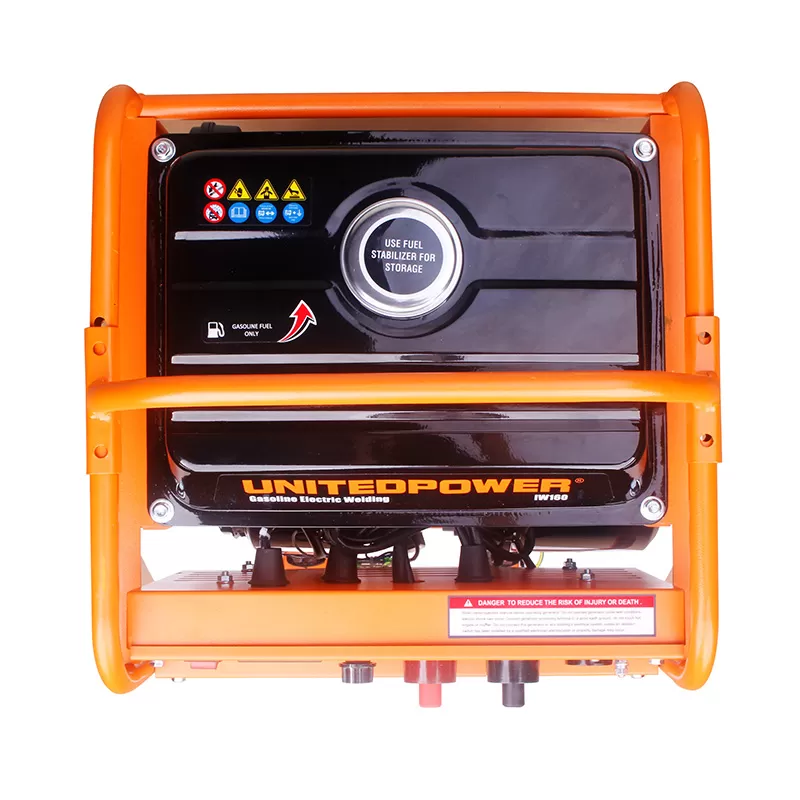

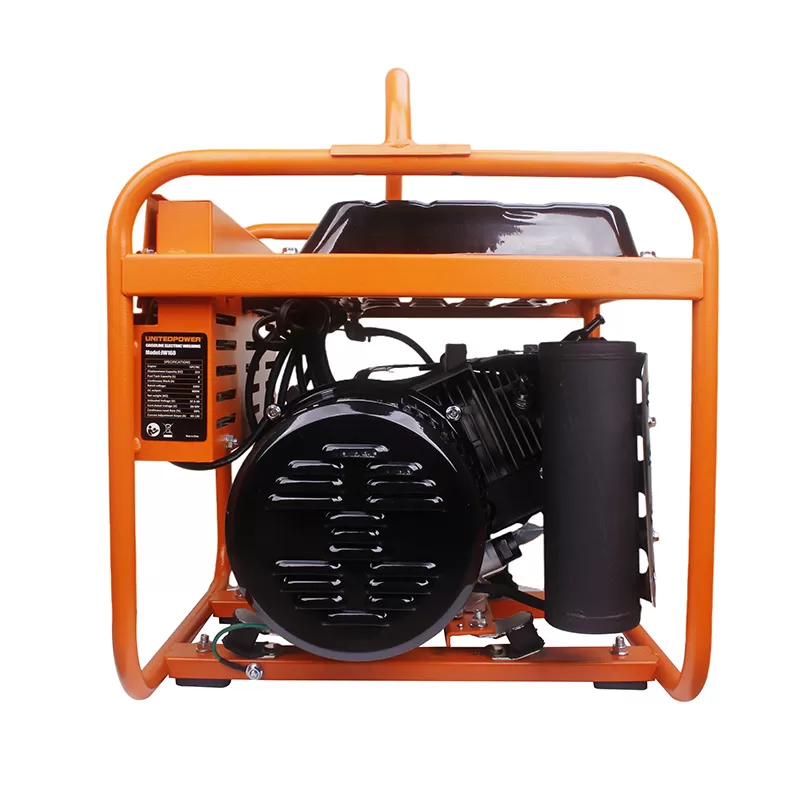

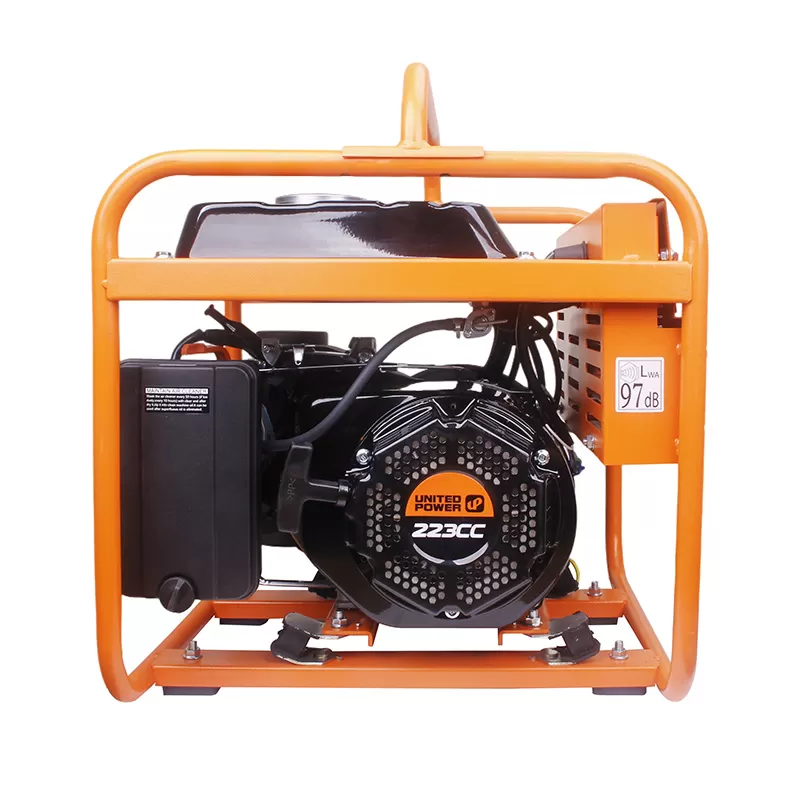

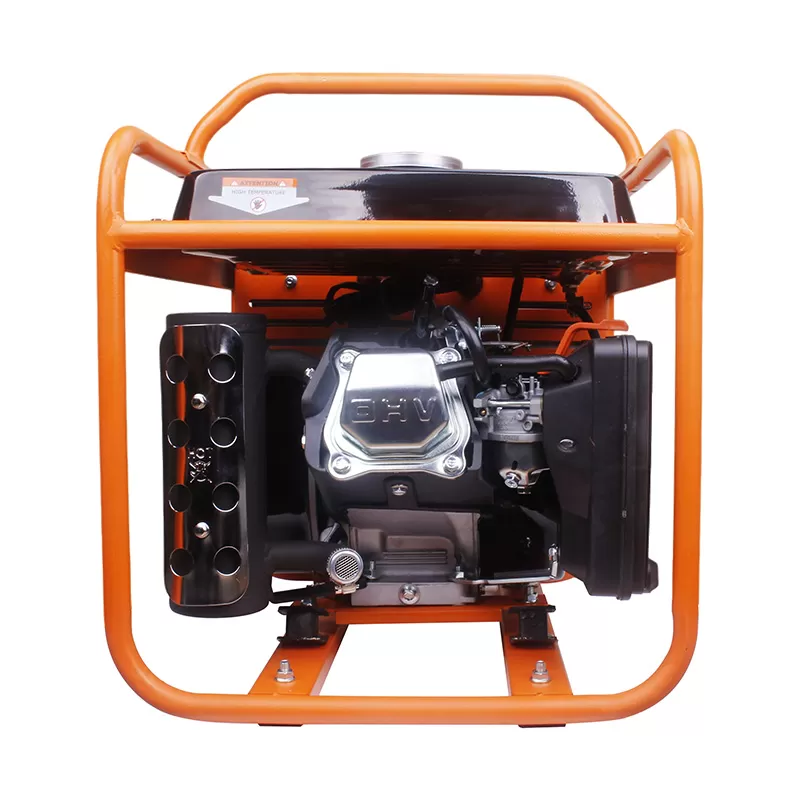

IW160T

800w Generator & Welder Dual-use Machine

Clean & stable inverter power Provides pure sine wave power, safe for sensitive electronics and household appliances.
Lightweight & portable Compact design with carry handle or wheels, easy to transport for outdoor, construction and emergency use.
Fuel-efficient & low noise Inverter technology adjusts engine speed automatically, reducing fuel consumption and noise.
Easy operation & wide application Simple control panel, suitable for welding, camping, jobsites, home backup and outdoor maintenance.

Send An Inquiry

PRODUCT DESCRIPTION SPECIFICATIONS INCLUDES INQUIRY

PRODUCT DESCRIPTION

The IW160T is a dual-purpose model for both welding and power generation, equipped with the UP170C engine, which combines the functions of power generation and welding. The power generation output is stable, with a rated power of 800W and a maximum of 900W. The voltage can be adjusted within a wide range of 110-240V. It is equipped with an FS socket for convenient connection of common tools. In welding mode, the no-load voltage is 48-58V, the continuous rated voltage is 24-36V, and the current is adjustable in four Settings: 40/60/100/130A. It supports electrodes with diameters ranging from φ1.6 to 3.2mm, with a load duration of 60%, meeting the requirements of light and medium welding operations. The 6L fuel tank can support continuous operation for about 3 hours. The net weight of the whole machine is 32kg, and its compact size (425×450×420mm) makes it convenient for on-site mobile operations.

SPECIFICATIONS

Welder generator model#	IW160T

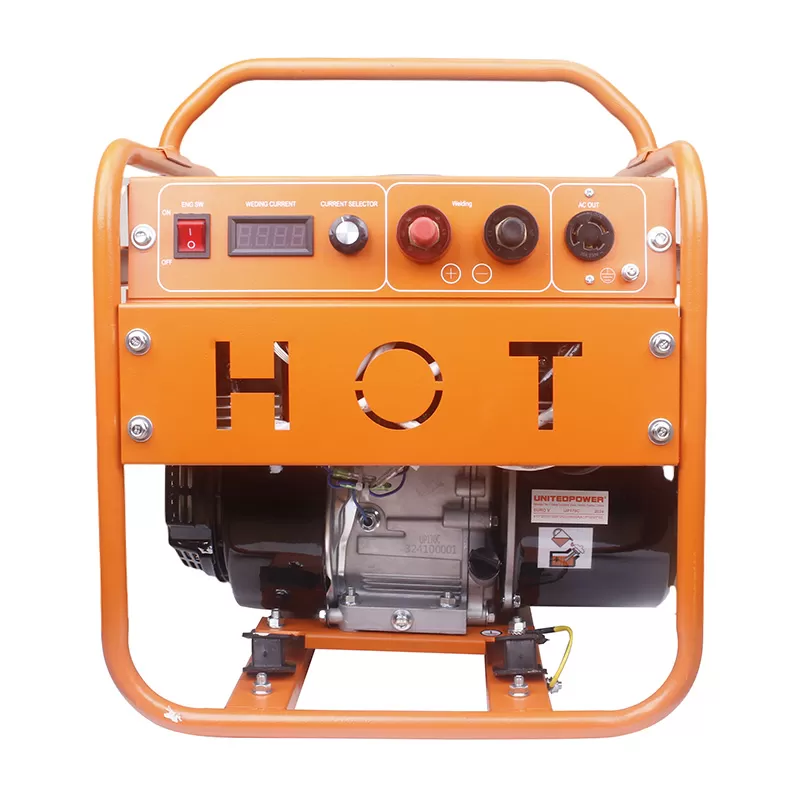

control panel	1×ON/OFF switch 1×current meter 1×current adjusting knob 2×welding socket 1×FS socket
Engine	UP170C
Frequency(Hz)	50 /60
Cont.AC Output(W)	800
Max. AC Output(W)	900
AC Output Voltage(V)	110 - 240
Unload Voltage(V)	48 - 58
Cont. Rated Voltage(V)	24 - 36
Current Adjustment Scope(A)	40 / 60 / 100 / 130
Continuous Load Rate(%)	60
Fuel tank Capacity(L)	6
Continuous Work(h)	3.5 / 3
N.W /G.W. (kg)	32 / 34
Unit Dim.(LWH)(mm)	425x450x420
Welding Rod Spec.(mm)	1.6/2.0/2.5/3.2

INCLUDES

(1x) Spark plug wrench

(1x) Owner’s manual

Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.

FAQ

Here are questions frequently asked by customers. However, when the FAQ doesn’t answer your questions, you can send us a message to ask.

Q Are you a factory or trading company?

We are the manufacturer. Meanwhile, we have our own factory.

Q Where is your factory located?

Our factory is in Fuzhou City, Fujian Province, China. It’s around 4 hour by express train or 2 hour by plane from Guangzhou to our city. Especially, our city has own sea port, Mawei port and Jiangyin port.

Q How many days for production delivery?

Ordinarily, it costs 20-25 workdays for 2x40ft containers. Additionally,the sample order can be finished in 5 days under standard type.

Q What is your terms of payment?

In general, payment≤2500 USD,100% in advance.
Besides, payment ≥ 2500 USD, 30% T/T in advance, balance against BL copy.

Q How about quality control in your factory?

We strictly operate full QC process, such as incoming inspection, process inspection and final inspection. In other word, each product must be tested in production line before shipping.
