UP188

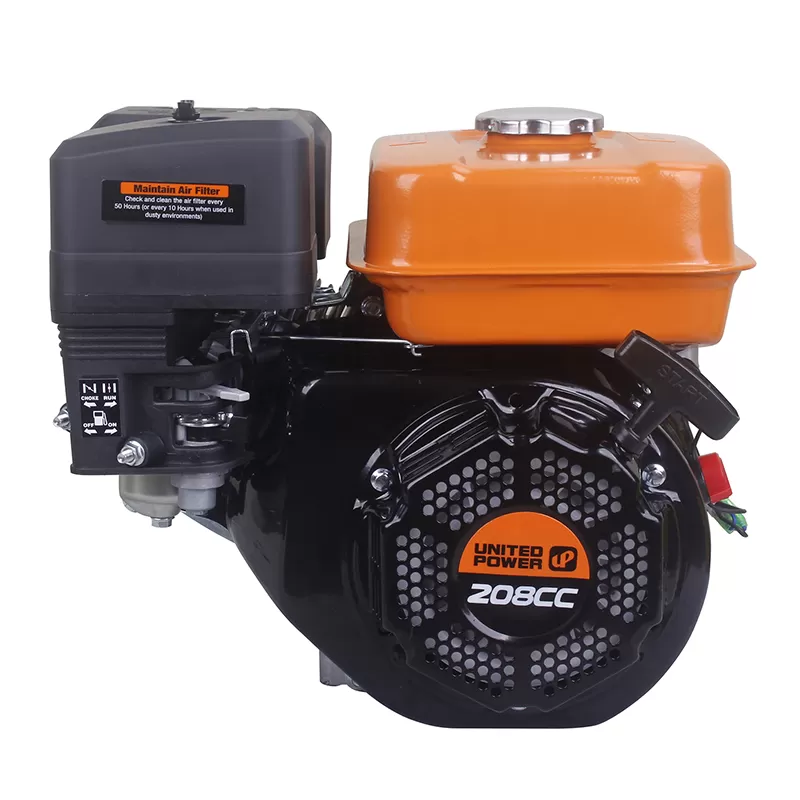

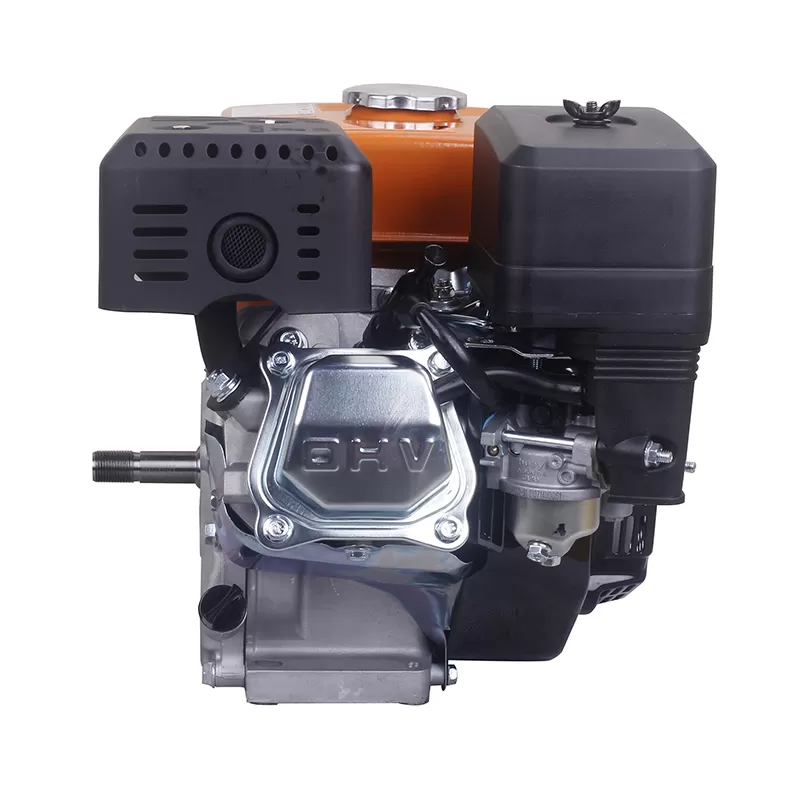

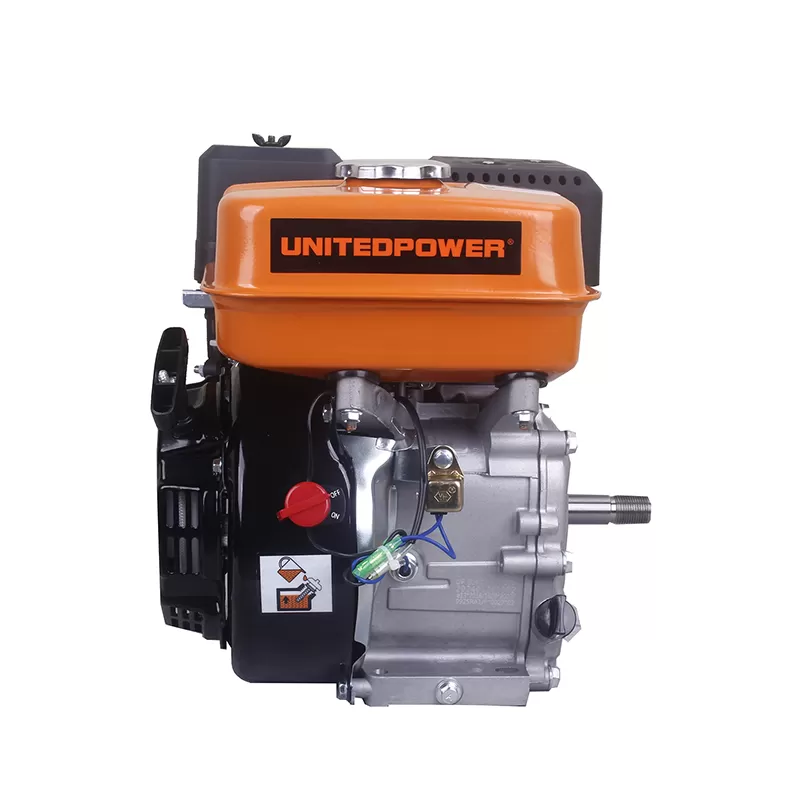

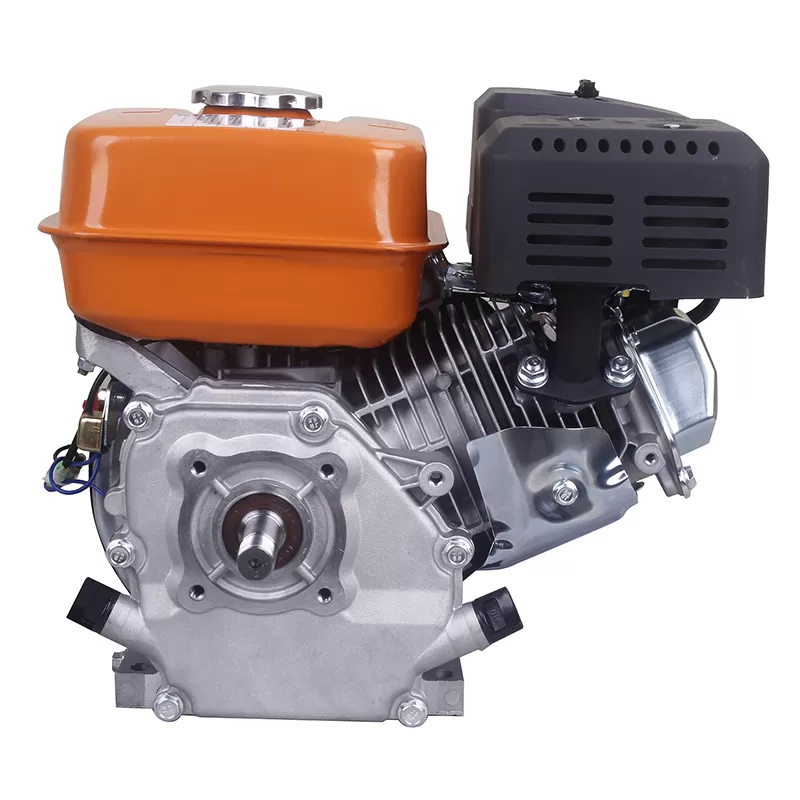

United Power 7.0hp 4-Stroke Gasoline Engine for Versatile Applications
LEARN MOREUnited Power 7.0HP Gasoline Engine! Prepare to be blown away by its outstanding features and unbeatable performance.
With a powerful 7.0HP engine, this beast is ready to tackle any task you throw its way. Whether you need reliable power for industrial use or heavy-duty applications, the United Power gasoline engine delivers unparalleled performance. It boasts an impressive lifespan of over 500 continuous hours, ensuring it will be your trusted companion for years to come.
Starting the engine is a breeze, thanks to its user-friendly manual start system. Say goodbye to frustrating and complicated startup procedures. With the United Power gasoline engine, you can get to work effortlessly and efficiently.
Experience the incredible torque of 13.5N.m, which guarantees exceptional power output for all your demanding projects. From construction sites to agricultural tasks, this gasoline engine is built to handle it all with ease.
What sets the United Power engine apart is its remarkable durability. Equipped with an all-steel crankshaft and camshaft, this engine is built to withstand the toughest conditions. You can rely on its robust construction to ensure long-lasting performance, even in the harshest environments.
| Model | UP170 | UP170B | UP170C |
| Displacement Capacity (cc) | 208 | 212 | 223 |
| Max.Output (HP/rpm) | 7.0 / 3600 | 7.2 / 3600 | 7.5 / 3600 |
| Engine Type | Single-cylinder,4-Stroke,Air-cooled,OHV Gasoline Engine | Single-cylinder,4-Stroke,Air-cooled,OHV Gasoline Engine | Single-cylinder,4-Stroke,Air-cooled,OHV Gasoline Engine |
| Bore X Strorke (mm) | 70X54 | 70X55 | 70X58 |
| Fuel Consumption (g/kWh) | ≤374 | ≤374 | ≤374 |
| Ignition System | Transistorized Magneto lgnition | Transistorized Magneto lgnition | Transistorized Magneto lgnition |
| Spark Plug | F6TC | F6TC | F6TC |
| Fuel Tank Capacity (L) | 3.6 | 3.6 | 3.6 |
| Lubrication Oil | SAE 10W/30 | SAE 10W/30 | SAE 10W/30 |
| Lubrication Oil Volume (L) | 0.6 | 0.6 | 0.6 |
| Starting System | Recoil or Electric starter | Recoil or Electric starter | Recoil or Electric starter |
| Stop System | Ignition Primary Circuit Ground | Ignition Primary Circuit Ground | Ignition Primary Circuit Ground |
| Noise Level at 7m (dB) | 80 | 80 | 80 |
| Gross Weight (kg) | 17 | 17 | 17 |
| Dimension (mm) | 417X368X365 | 417X368X365 | 417X368X365 |
| 20ft Container QTY | 512 | 512 | 512 |
| 40ft Container QTY | 1065 | 1065 | 1065 |
| Certificate | EPA EU-Ⅴ CARB | EPA EU-Ⅴ | EPA EU-Ⅴ CARB |
(1x) Gasoline engine
(1x) Spark plug wrench
(1x) Warranty card
(1x) Owner’s manual
