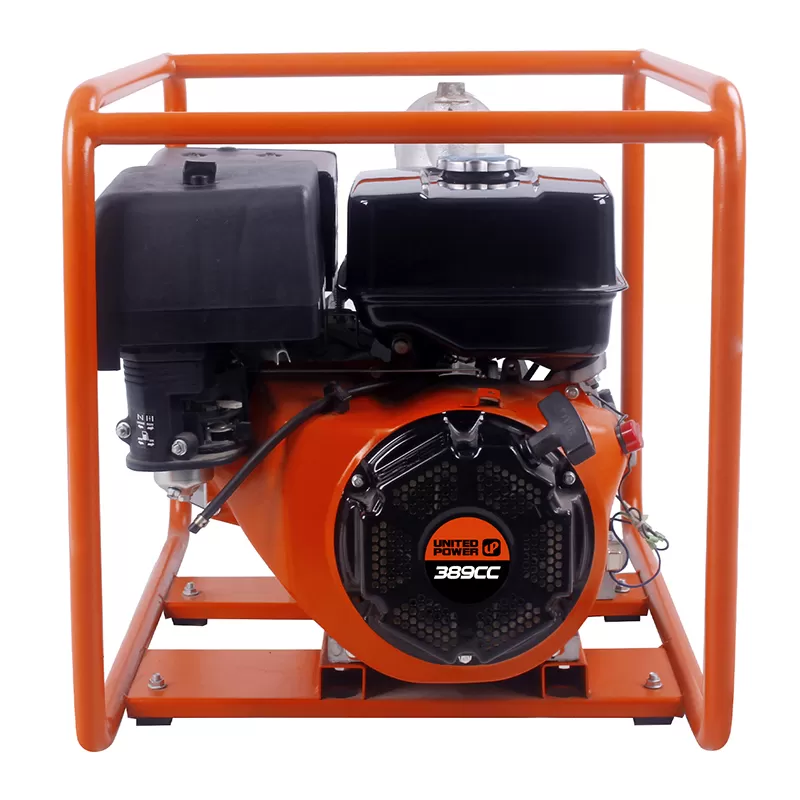

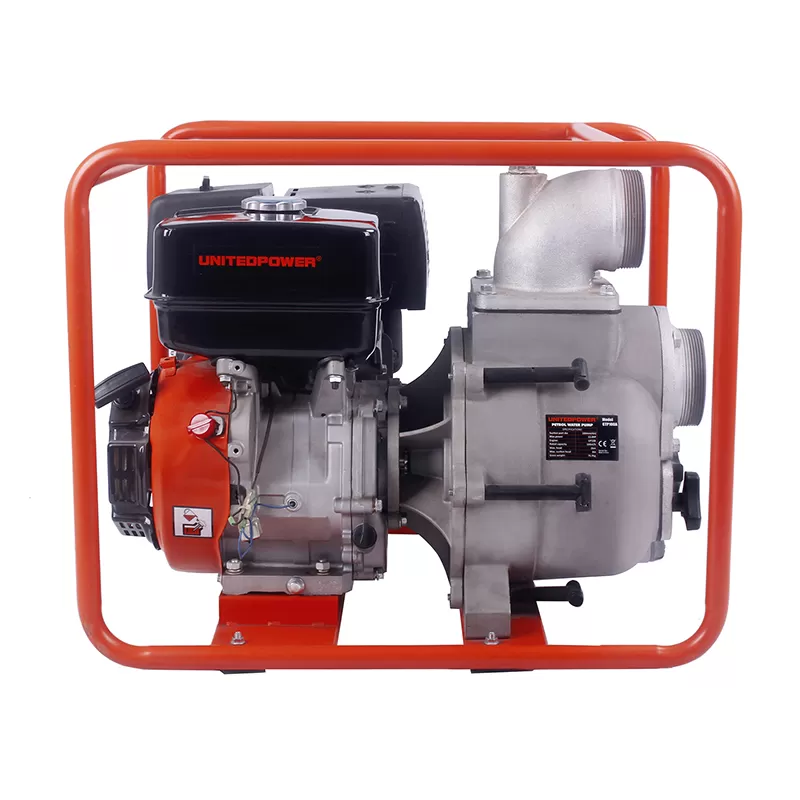

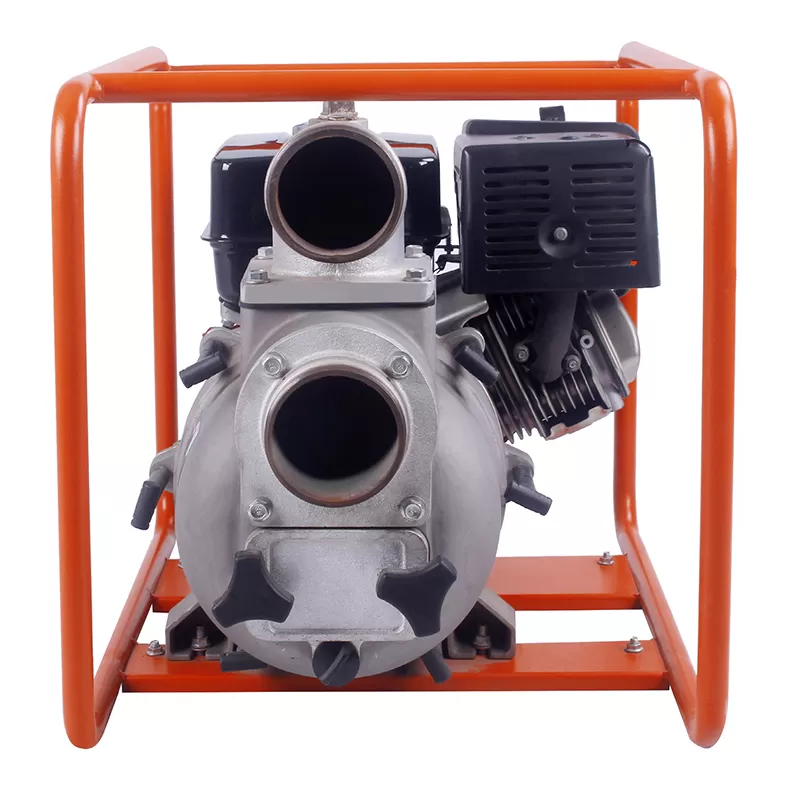

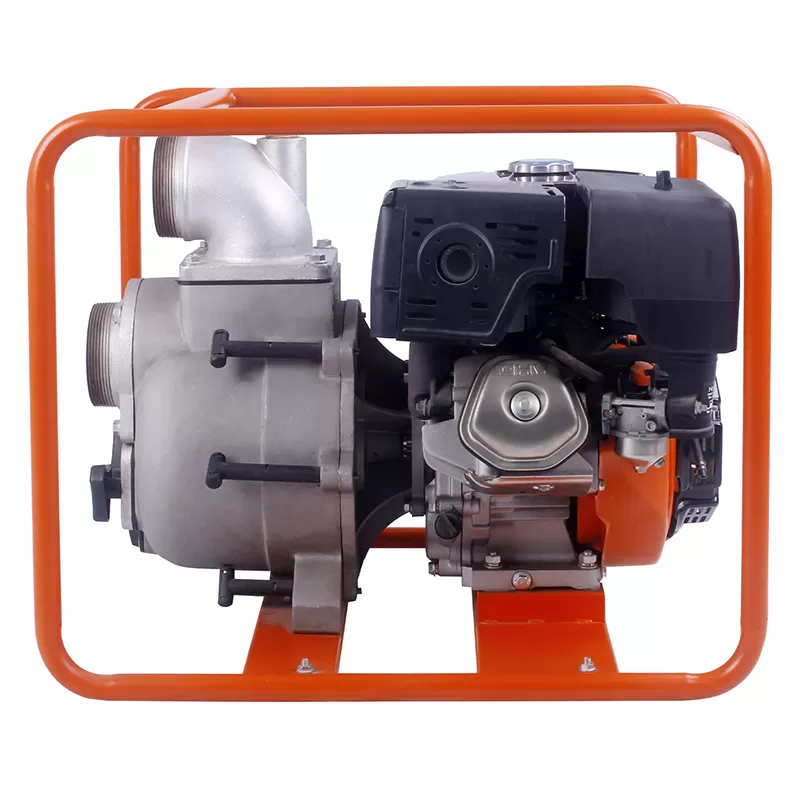

GTP100A
14HP High Flow Gasoline Water Pump 100mm Outlet
- High Efficiency Performance: Delivers a flow rate >400 L/min with a head of 10-30m. Equipped with a 420cc large-displacement engine, it outputs 14 HP at 3600 RPM, ensuring maximum efficiency for irrigation and water supply.
- Stable & Reliable: Features a single-stage, single-suction semi-open impeller and horizontal medium-pressure structure, driven by an air-cooled gasoline engine for consistent performance even during continuous operation
- High Adaptability: The 100mm large-diameter discharge port and 6m maximum suction head make it ideal for high-flow water transfer scenarios, with easy installation.
- Bulk Delivery Capability: 126 units can be loaded in a 20ft container, with a 45-day lead time. Sufficient factory annual production capacity meets large-volume procurement needs.
- Versatile & Durable: Suitable for circulating water supply, agricultural irrigation, and construction site drainage. Manufactured in Fujian, China, it offers consistent quality and long-term reliability.
PRODUCT DESCRIPTION
Standard Description UNITED POWER GTP100A is a high-performance gasoline-driven medium-pressure centrifugal pump, engineered specifically for high-flow water transfer applications. Powered by a 420cc large-displacement Up190 gasoline engine, it delivers 14 HP at 3600 RPM. Combined with a single-stage, single-suction semi-open impeller and horizontal medium-pressure design, it achieves an impressive flow rate of over 400 L/min with a head range of 10-30m. The 6m suction head paired with a 100mm large-diameter discharge port significantly enhances water transfer efficiency. The air-cooled system ensures reliable performance in long-duration outdoor operations, even under harsh conditions. Widely used for large-scale agricultural irrigation, construction site dewatering, and circulating water systems, it is the ideal choice for high-flow water transfer needs. Packaged in cartons, 126 units can be loaded per 20ft container. With a robust annual production capacity and 45-day stable delivery from our Fujian factory, it ensures complete quality control and after-sales support, perfectly suited for bulk procurement and long-term engineering projects.
SPECIFICATIONS
| Model | GTP100A |
| Discharge Port Dia(mm) | 100(40in) |
| Rated Capacity(m3/h) | 104 |
| Self-Priming Time(s/4m) | 60 |
| Max. Head(m) | 26 |
| Max. Suction Head(m) | 6 |
| Dimension (L×W×H) (mm) | 712*555*590 |
| Net weight/Gross weight(KG) | 70/76.9 |
| 40ft container Qty | 258 |
| Engine | UP190 |
| Engine Type | Single-Cylinder, 4-Stroke, Air-Cooled; OHC Gasoline Engine |
| Displacement Capacity(CC) | 420 |
| Max. Output（HP/rpm) | 14/3600 |
| Fuel Tank Capacity(L) | 6.5 |
INCLUDES
(1x) Spark plug wrench
(1x) Owner’s manual
