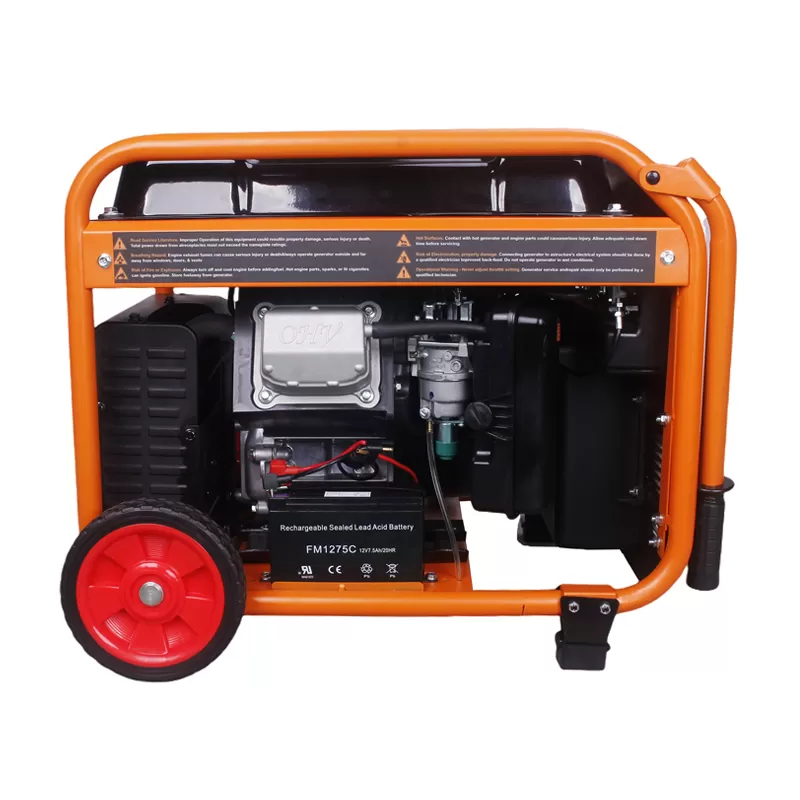

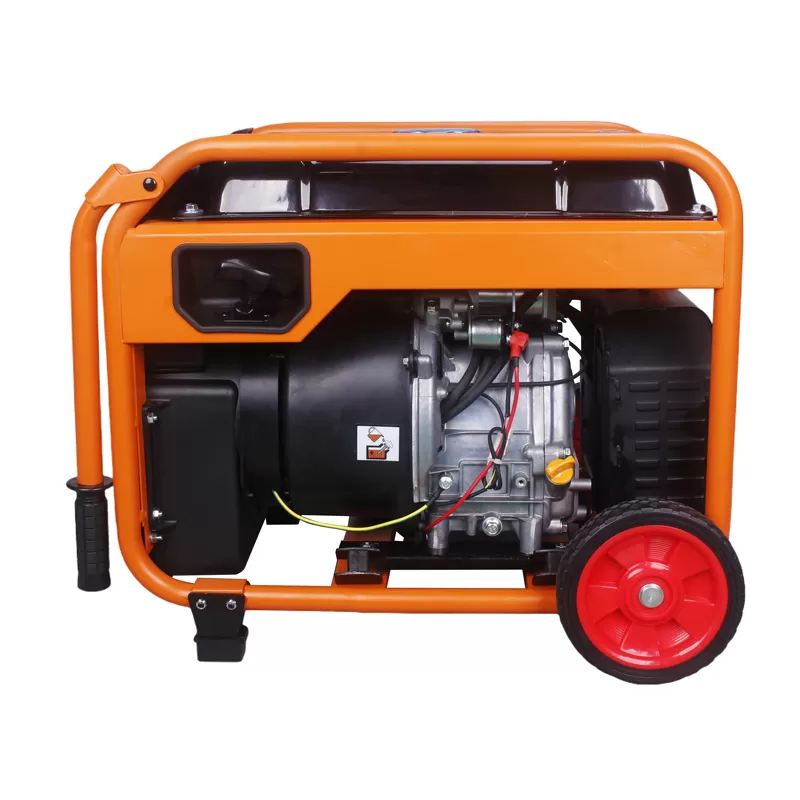

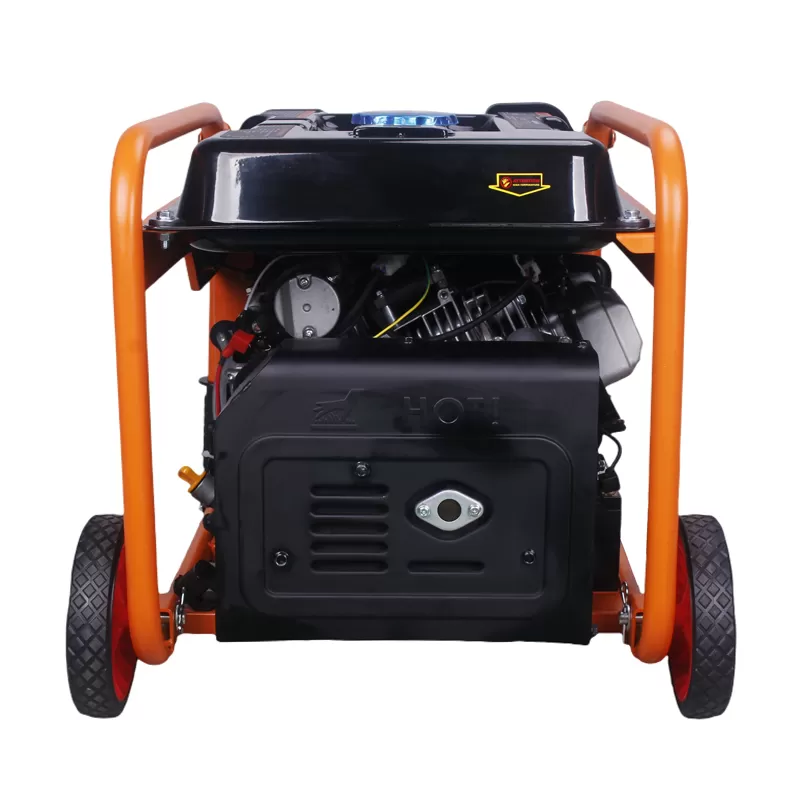

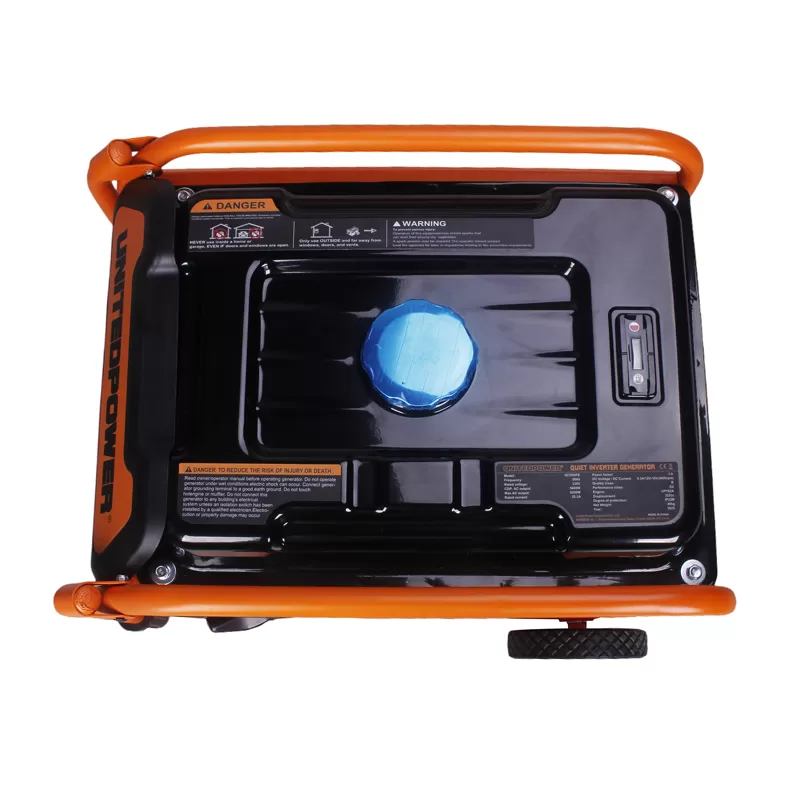

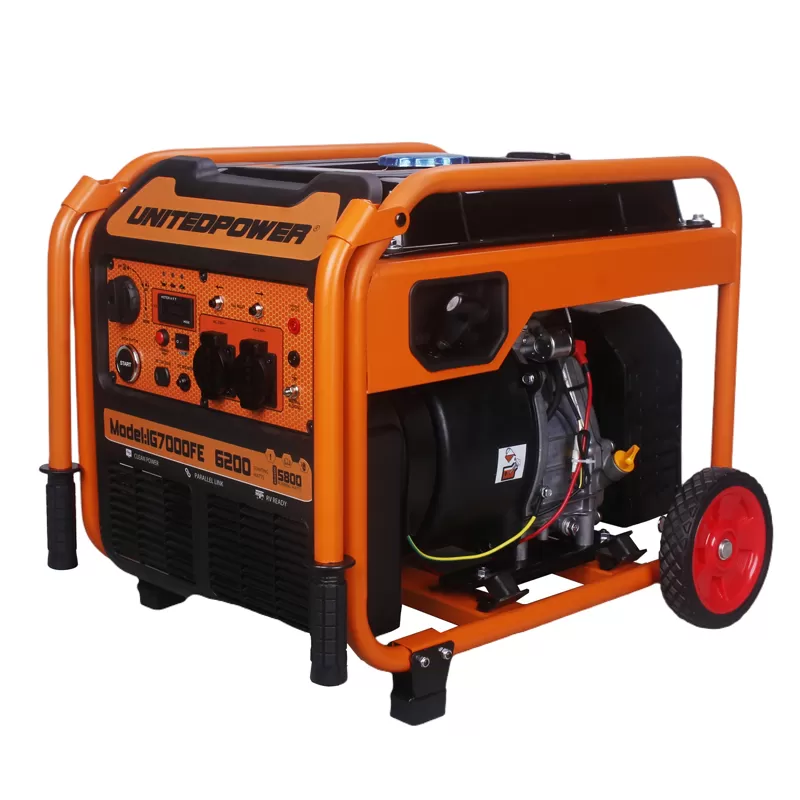

IG7000FE

5800/6200W open-frame inverter generator

  • POWERFUL & PORTABLE:​ 5800W Rated / 6200W Peak. Open-frame design makes it lighter and easier to move.
  • EASY ELECTRIC START:​ Includes battery. No more hard pulling—starts instantly, even in the cold.
  • CLEAN SINE WAVE POWER:​ <3% THD output. Safe for laptops, fridges, ACs, and power tools.
  • OPTIMIZED COOLING:​ Open frame allows maximum airflow for long runtime and easy maintenance.
Send An Inquiry

PRODUCT DESCRIPTION

When the job-site needs sustained power for a rotary hammer, or when a blackout hits your home – the United Power 5800/6200W open‑frame inverter generator gives you true heavy‑duty freedom in a surprisingly lightweight package.

You might think: a generator this powerful must be a beast to move. Not anymore. The open‑frame design uses reinforced steel tubing that maintains rigidity while shedding unnecessary weight – one person can easily pull, push, or lift it onto a pickup truck. Move it between job sites with zero struggle, or roll it from the garage to the house entry without breaking a sweat.

Inverter Technology + High‑Speed Engine = Clean, Strong Power

A high‑speed 4‑stroke gas engine paired with an advanced inverter module delivers 6200W surge and 5800W rated output. That means you can run simultaneously:

At home – mid‑size central AC, refrigerator, microwave, TV, lights, water pump, computer, security system.

On the job – rotary hammer, table saw, angle grinder, air compressor, small welder, lighting tower. Unlike traditional open‑frame generators, this inverter unit outputs steady voltage and frequency with very low distortion – safe for laptops, smart appliances, and the sensitive circuit boards in modern power tools.

Electric Start – Push and Go

A dedicated electric start button is built into the control panel, powered by a pre‑installed battery. Cold morning, wet hands, or after a long day – just push and the engine starts smoothly. A backup recoil pull cord is also provided for total reliability.

Built for Long Running Hours

The open frame offers two big advantages: 1) Far better heat dissipation than closed‑case units – perfect for all‑day construction work; 2) Easy maintenance – air filter, spark plug, and oil fill are right there. Oversized fuel tank plus ECO mode gives 6‑8 hours of run time at rated load, even longer at half load. Low‑oil shutdown protects the engine automatically.

Compliant, Quiet (for an open frame), and Ready to Work

Even as an open‑frame design, the muffler and airflow path are optimized to keep noise at reasonable levels – no neighborhood complaints. EPA‑certified, so it meets strict emission regulations across the US.

Where Will You Use It?

Home backup – Hurricanes, ice storms, grid failures – keep your essential appliances running.

Job sites – Remote locations, rough‑ins, outdoor builds – lightweight frame means you’ll actually take it where the work is.

Farm / ranch – Run water pumps, feed grinders, electric fencing – temporary power wherever you need it.

From a dark house after a storm to the noisy chaos of a construction site, the United Power lightweight high‑output inverter generator is the personal power plant you can actually carry.

Note: Add oil and gasoline before first use. Always operate outdoors in a well‑ventilated area, away from windows and doors. Please read the user manual carefully before starting.

Let me know if you need a shorter version or any specific adjustment for your store layout.

SPECIFICATIONS

SPECIFICATIONS
Quiet Inverter GeneratorIG7000FE
Frequency(Hz)5060
AC Output Voltage(V)220230240110/220120/240
Rated AC Output(W)5500
Max. AC Output(W)6000
CertificateEURO-V CE RoHSEPA
AC Output Amperage(A)25.023.922.925.022.9
Power Factor1.0
DC Voltage / DC Current8.3A/12V-16V(3600rpm)
Fuel TypeGasoline
Fuel Tank Capacity(L)15L
Runtime @25% Load (Gas)Up to 9 Hour
Net Weight/Gross Weight(kg)48 / 52
Unit Dim( L x W x H )(mm)610 x 450 x 465
Packing Dim( L x W x H )(mm)640 x 480 x 500
20/40/40HQ ft Container Qty168 / 336 / 420
Engine TypeUP182A  Single Cylinder 321cc - 4 Stroke OHV
Lubrication OilSAE 10W-30
Lubrication Oil Volume(L)1100ml
Starting SystemRecoil / Electric
Low Oil ShutdownYes
Engine RPMVariable / 2600-3600rpm
Spark PlugF6RTC
THD<3%>
Alternator TypePermanent Magnet
Parallel CapableYes - Requires Parallel Kit Sold Separately

INCLUDES

(1x) Spark plug wrench

(1x) Owner’s manual
