GG1356(60) Ultra-Compact 1.2kW Generator | 60Hz for American Light Use
LEARN MORE
GG1356
GG1356(60) Ultra-Compact 1.2kW Generator | 60Hz for American Light Use
- 60Hz US-Optimized: 60Hz frequency, tailored for North American low-power applications.
- Lightweight & Portable: 25kg net weight, compact 477×385×422mm size for easy transport.
- Reliable 4-Stroke Engine: 2.6HP/3600rpm Up156 air-cooled engine, durable for daily use.
- Efficient Runtime: 5h continuous work with 6L fuel tank, ideal for short outdoor or emergency tasks.
- Mass Production Capacity: 500,000 units/year, stable bulk supply from Fujian factory.
PRODUCT DESCRIPTION

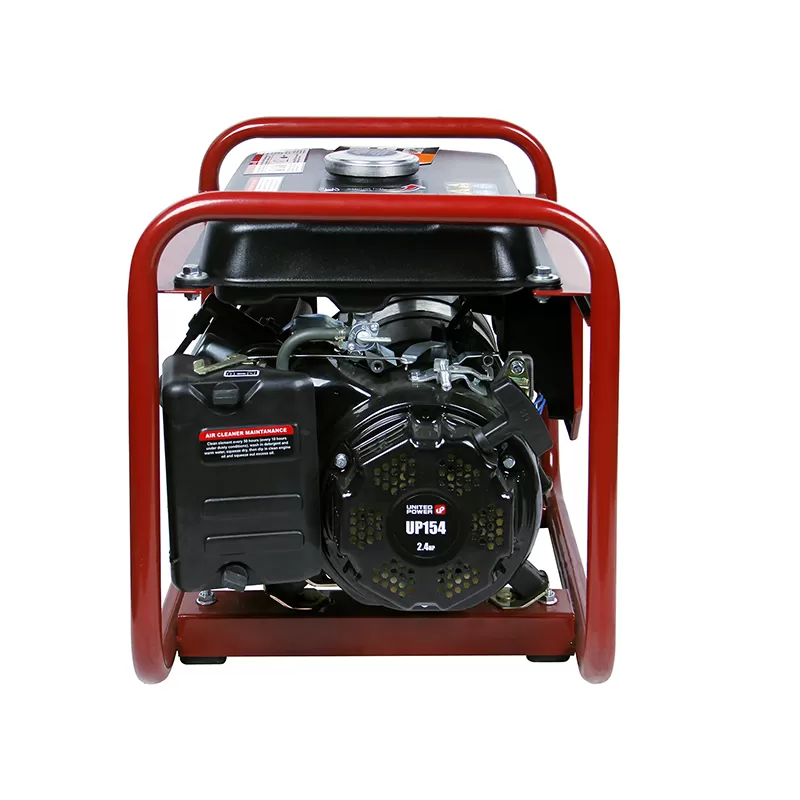

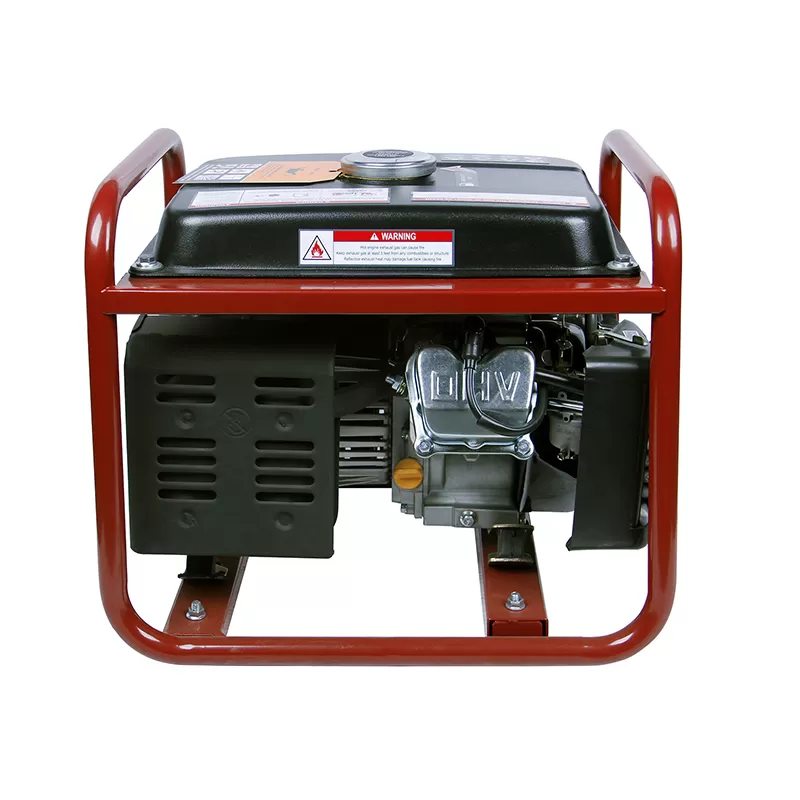

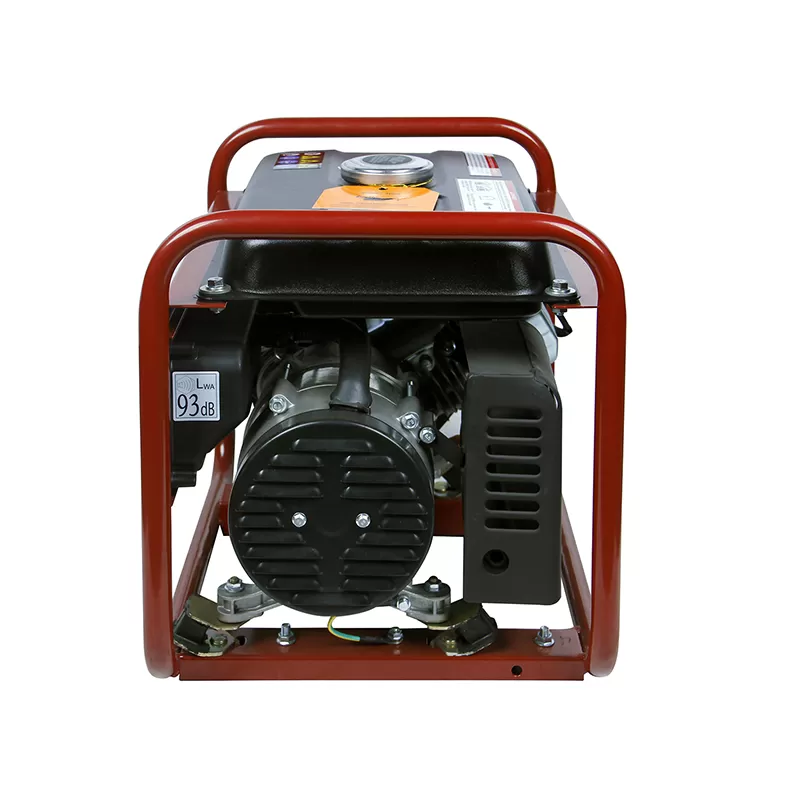

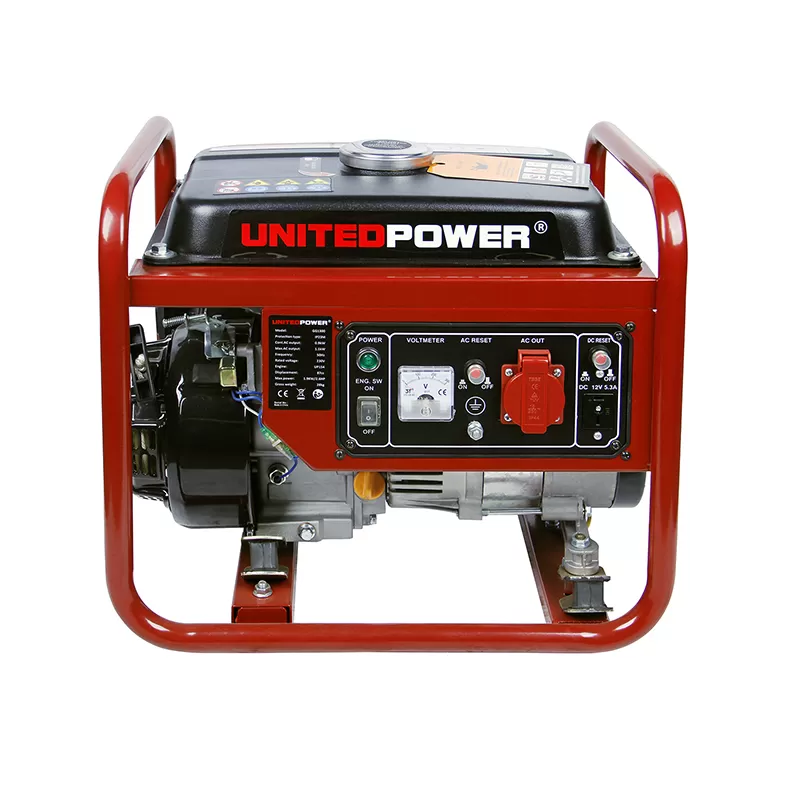

GG1356 is a compact 60Hz petrol generator designed for North American low-power needs. It delivers 1.0kW rated and 1.2kW max single-phase AC power, powered by a 2.6HP/3600rpm Up156 4-stroke air-cooled engine. The 6L fuel tank supports 5h continuous work, perfect for camping, small tools, and emergency lighting. With a lightweight 25kg design and compact 477×385×422mm size, it is highly portable. Manufactured in Fujian, China, with a 500,000 units/year production capacity, the GG1356(60) is a cost-effective, reliable power solution for light-duty 60Hz applications.
SPECIFICATIONS
| Model | GG1356 |
| Fuel Tank materia | Steel |
| Frequency (Hz) | 50 |
| Rated AC Output (kW) | 1.0 |
| Max. AC Output (kW) | 1.1 |
| AC Output Voltage (V) | 220-240 |
| Noise Level LwA(4m)dB(A) | 95 |
| Fuel Tank Capacity(L) | 15 |
| Continuous Work Time (h/kW) | 10 |
| Net Weight/Gross Weight(kg) | 38/40 |
| Dimension (L*W *H )(mm) | 600*430*445 |
| 20ft/40ft Container Qty | 220/470 |
| Engine | UP170 |
| Engine Type | Single-cylinder, 4-Stroke, Air-cooled, OHV Gasoline Engine |
| Starting system | Recoil |
| Lubrication Oil Volume(L) | 0.4 |
| Max.Output(HP/rpm) | 7/3600 |
INCLUDES
(1x) Spark plug wrench
(1x) Owner’s manual
Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
