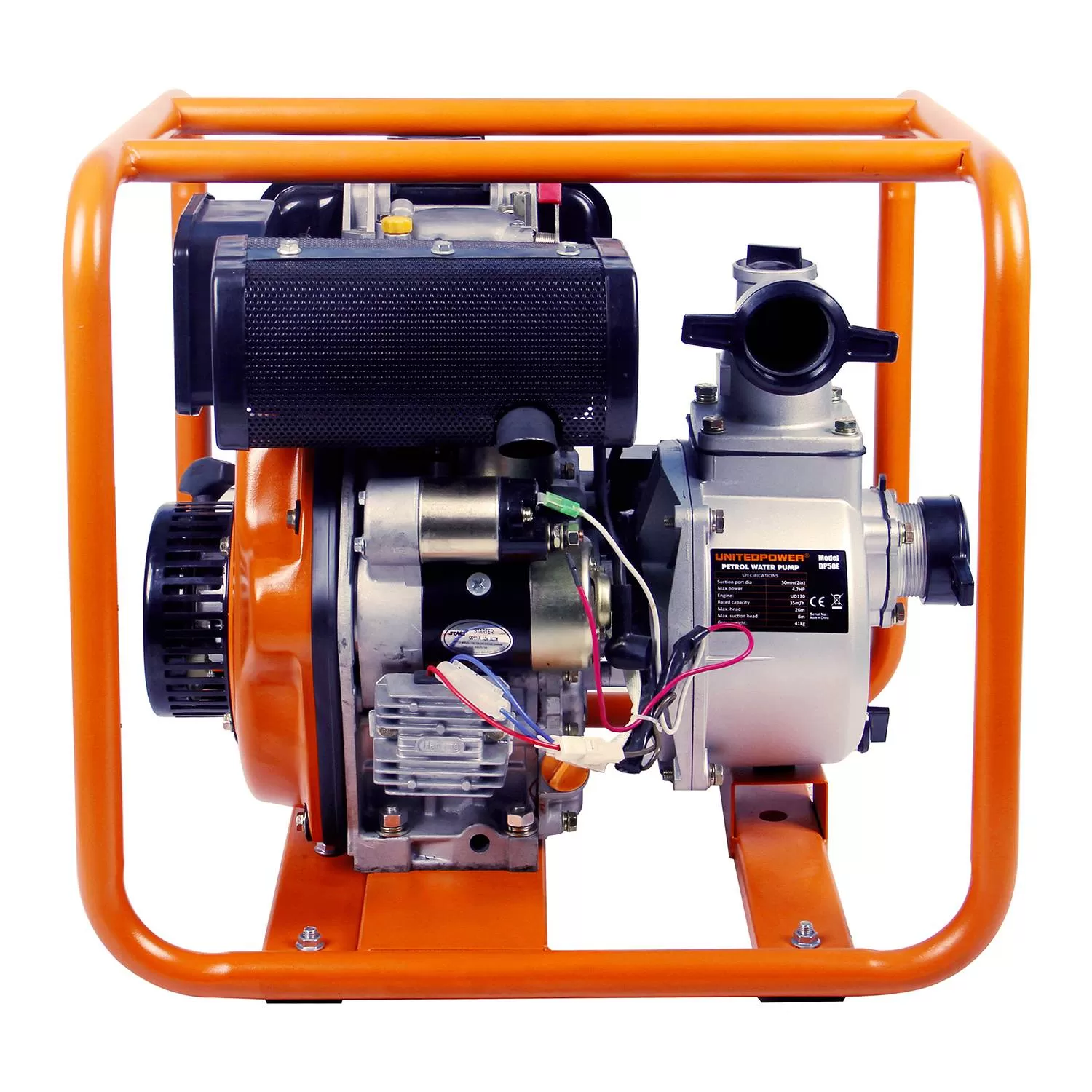

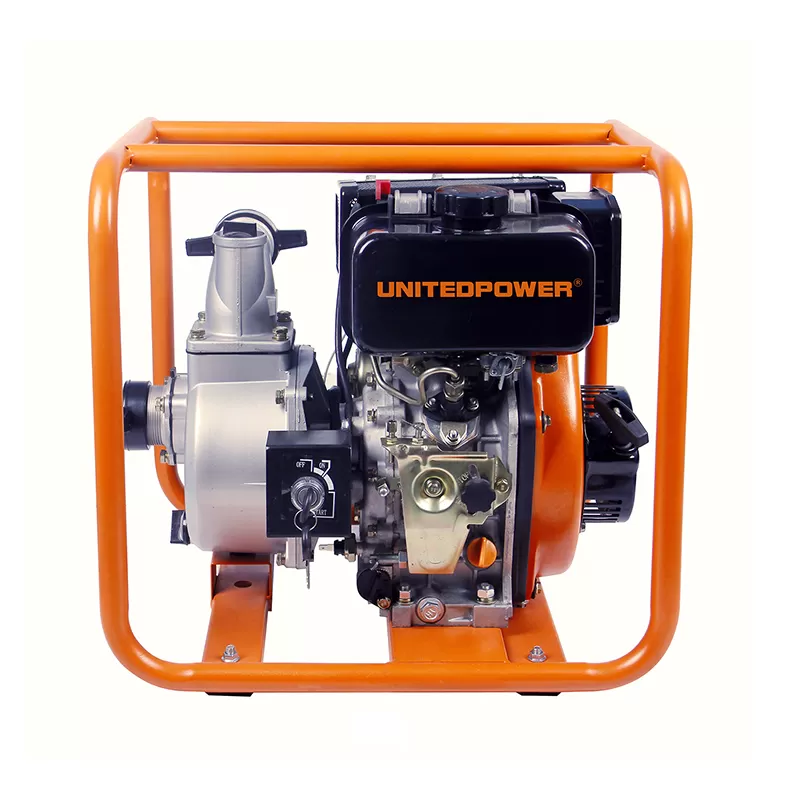

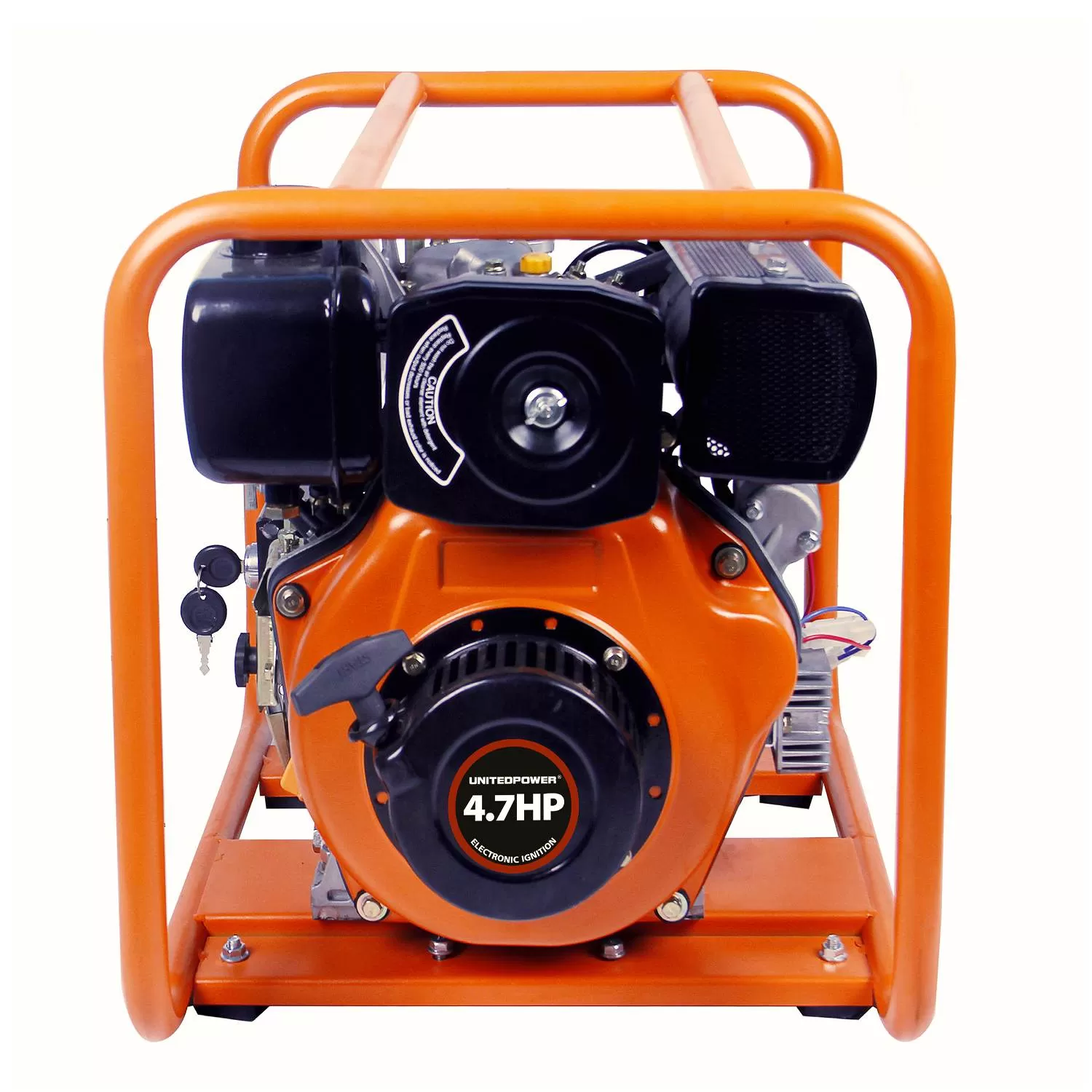

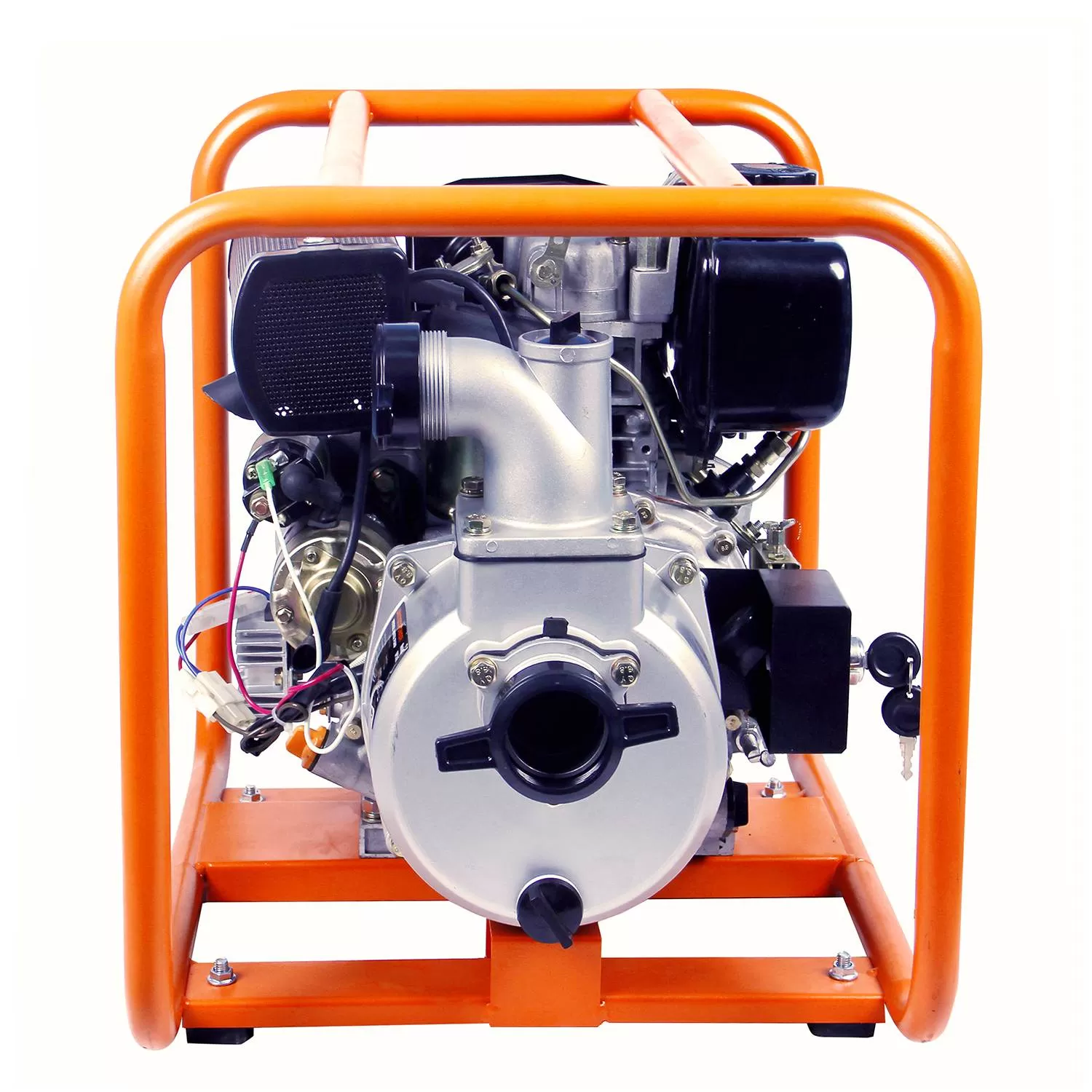

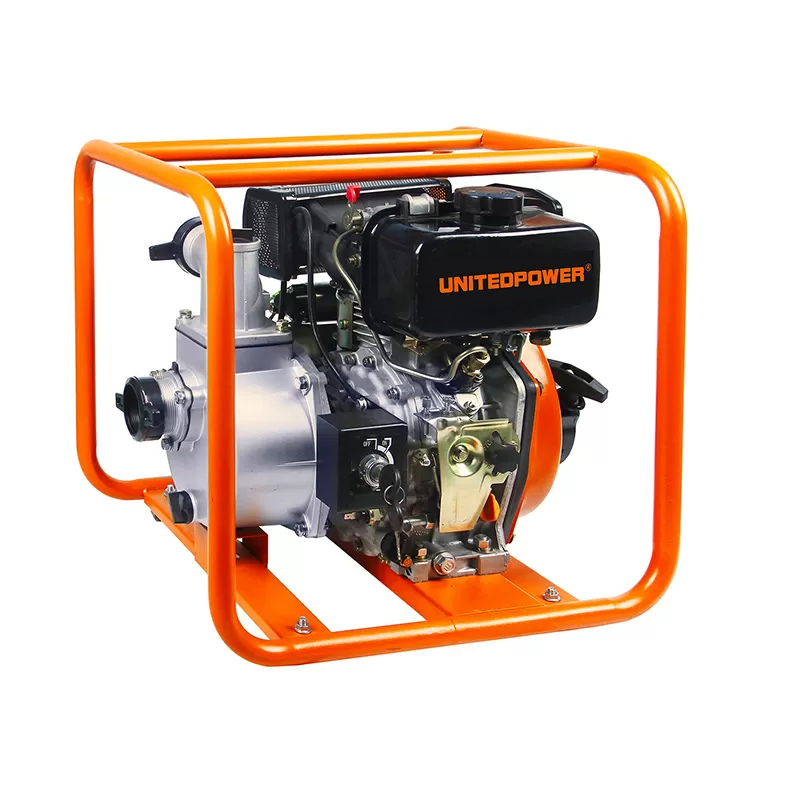

DP50E
Electric Start Diesel Pump for Heavy Duty Use
- Diesel Power & Convenience: 219cc 4-stroke diesel engine with electric start, reliable for long-duration use.
- Strong Performance: 300-400 L/min flow, 10-30m head, 8m max suction head for versatile water transfer.
- Built for Tough Use: Air-cooled design, large 2.4L fuel tank, and 0.8L oil capacity for extended operation.
- Highly Packable: 224 units per 20FT container, reducing logistics costs for bulk orders.
- Wide Application: Ideal for farm irrigation, industrial circulation, and off-grid water supply.
PRODUCT DESCRIPTION
UNITED POWER DP50E is a robust diesel-driven centrifugal pump, built for durability and performance in demanding environments. Powered by a 219cc single-cylinder 4-stroke air-cooled diesel engine with electric start, it delivers a flow rate of 300-400 L/min with a head range of 10-30m. The single-stage semi-open impeller and horizontal split pump casing ensure efficient, low-maintenance operation. With an 8m maximum suction head, 2.4L fuel tank, and 0.8L oil capacity, it supports extended continuous use, making it ideal for farm irrigation, industrial water circulation, and off-grid water supply. Its compact dimensions (527×455×507 mm) and carton packaging simplify transport, with 224 units fitting in a 20FT container for cost-effective shipping. With a 45-day delivery lead time and 50,000 units annual production capacity, it offers flexible procurement options. Manufactured in Fujian, China, under strict quality control, the DP50E is a reliable workhorse for heavy-duty water transfer applications.
SPECIFICATIONS
| Model | DP50E |
| Discharge Port Dia(mm) | 50(2in) |
| Rated Capacity(m3/h) | 35 |
| Self-Priming Time(s/4m) | 70 |
| Max. Head(m) | 26 |
| Max. Suction Head(m) | 8 |
| Dimension (L×W×H) (mm) | 510*440*485 |
| Net weight/Gross weight(KG) | 42/45 |
| 20ft/40ft container Qty | 224/460 |
| Engine | UD170E |
| Engine Type | Single-Cylinder, 4-Stroke, Air-Cooled; OHV Diesel Engine |
| Displacement Capacity(CC) | 211 |
| Max. Output（HP/rpm) | 4.7/3600 |
| Fuel Tank Capacity(L) | 2.4 |
INCLUDES
(1x) diesel water pump
(2x) Hose fitting
(2x) Hose adapter
(1x) Water filter
(2x) Sealing gasket
(3x) Hose clamp
(1x) Spark plug socket wrench
(1x) Owner’s manual
Please provide the model type of your machine in your inquiry, and mention the keywords like chainsaw parts, brush cutter parts, sprayer/mist duster parts, leaf blower parts, hedge trimmer parts, water pump parts, generator parts, engine parts, lawn mower parts, etc.
