| After-sales Service: | Spare Parts |
|---|---|
| Warranty: | 12 Months |
| Max.Head: | 10-30m |
| Max.Capacity: | 300-400 L/min |
| Driving Type: | Internal Combustion Engine |
| Impeller Number: | Single-Stage Pump |
| Quantity: |
|---|

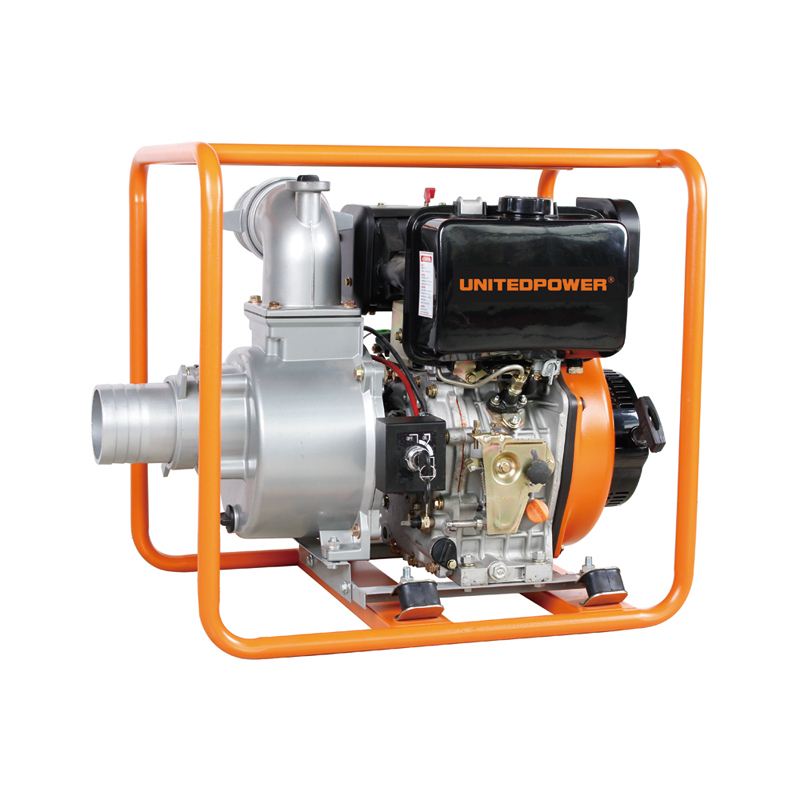

| Model: | DP100E |
| Suction(in): | 100(4in) |
| Discharge Port Dia(mm): | 100 |
| Maximum Capacity(m3/h): | 106 |
| Self-Priming Time(s/4m): | 180 |
| Max.Head(m): | 26 |
| Max.Suction Head(m): | 6 |
| Net Weight / Gross Weight(kg): | 73 / 76 |
| Unit Dim(LxWxH)(mm): | 645 x 475 x 610 |
| Packing Dim(LxWxH)(mm): | 655 x 485 x 625 |
| 20ft/40ft Container Qty: | 123 / 252 |
| Engine: | UD186E |
| Engine Type: | Single-cylinder,4-Stroke,Air-cooled,Diesel Engine |
| Max. Output(HP/rpm): | 10 / 3600 |
| Fuel Tank Capacity(L): | 5.4 |
| Lubrication Oil Volume(L): | 1.65 |
| Certificate: | EU-V CE |
| Model: | DP100E |
| Suction(in): | 100(4in) |
| Discharge Port Dia(mm): | 100 |
| Maximum Capacity(m3/h): | 106 |
| Self-Priming Time(s/4m): | 180 |
| Max.Head(m): | 26 |
| Max.Suction Head(m): | 6 |
| Net Weight / Gross Weight(kg): | 73 / 76 |
| Unit Dim(LxWxH)(mm): | 645 x 475 x 610 |
| Packing Dim(LxWxH)(mm): | 655 x 485 x 625 |
| 20ft/40ft Container Qty: | 123 / 252 |
| Engine: | UD186E |
| Engine Type: | Single-cylinder,4-Stroke,Air-cooled,Diesel Engine |
| Max. Output(HP/rpm): | 10 / 3600 |
| Fuel Tank Capacity(L): | 5.4 |
| Lubrication Oil Volume(L): | 1.65 |
| Certificate: | EU-V CE |
