IG3600

Model:	IG2200s		IG3300		IG3200		IG3800
Frequency(Hz):	50	60	50	60	50	60	50	60
AC Output Voltage(V):	220~240	110;120	220~240	110;120	220~240	110;120	220~240	110;120
Rated AC Output(W):	1800	1700	2800		2800		3200
Max. AC Output(W):	2000		3000		3000		3500
DC Power:	100W		100W		100W		100W
DC Voltage/DC Current:	12V / 8.3A		12V / 8.3A		12V / 8.3A		12V / 8.3A
USB:	5V(1A+2.1A)		5V(1A+2.1A)		5V(1A+2.1A)		5V(1A+2.1A)
Noise:	67dB(A)/7m		96dB(A)/4m		96dB(A)/4m		96dB(A)/4m
Fuel Tank Capacity(L):	4.2		6		10		10
Gross Weight(kg):	22±2		30±2		31.5±2		32±2
Dimension(LxWxH)(mm):	540x340x505		460x350x460		500x400x480		500x400x480
20ft/40ft/40HQ Container Qty:	270 / 560 / 690		370 / 800 / 800		240 / 500 / 630		240 / 500 / 630
Engine:	UP148F		UP170		UP170		UP170
Engine Type:	4-Stroke,Air-cooled,OHV Gasoline Engine		4-Stroke,Air-cooled,OHV Gasoline Engine		4-Stroke,Air-cooled,OHV Gasoline Engine		4-Stroke,Air-cooled,OHV Gasoline Engine
Displacement Capacity(cc):	79.8		208		208		208
Max. Output(kw/hp/rpm):	2.4/3.3/5000		4.1/7/5000		4.1/7/5000		4.1/7/5000
Lubrication Oil:	SAE10W/30		SAE10W/30		SAE10W/30		SAE10W/30
Lubrication Oil Volume(L):	0.35		0.36		0.6		0.6
Starting System:	Recoil		Recoil		Recoil		Recoil
Engine RPM:	Variable		Variable		Variable		Variable
Spark Plug:	E6RTC		N/A		N/A		N/A

Model:	IG4200		IG8000E
Frequency(Hz):	50	60	50	60
AC Output Voltage(V):	220~240	110;120	220~240	110;120
Rated AC Output(W):	3500		7000
Max. AC Output(W):	3800		7500
DC Power:	100W		100W
DC Voltage/DC Current:	12V / 8.3A		12V / 8.3A
USB:	5V(1A+2.1A)		5V(1A+2.1A)
Noise:	97dB(A)/4m		103dB(A)/4m
Fuel Tank Capacity(L):	10		20
Gross Weight(kg):	32.5±2		68±4
Dimension(LxWxH)(mm):	500x400x480		615x520x555
20ft/40ft/40HQ Container Qty:	240 / 500 / 630		90 / 180 / 240
Engine:	UP170C		UP190
Engine Type:	4-Stroke,Air-cooled,OHV Gasoline Engine		4-Stroke,Air-cooled,OHV Gasoline Engine
Displacement Capacity(cc):	223		420
Max. Output(kw/hp/rpm):	4.5/7.5/5000		8.8/14/5000
Lubrication Oil:	SAE10W/30		SAE10W/30
Lubrication Oil Volume(L):	0.6		1.1
Starting System:	Recoil		Recoil/Electric
Engine RPM:	Variable		Variable
Spark Plug:	N/A		N/A

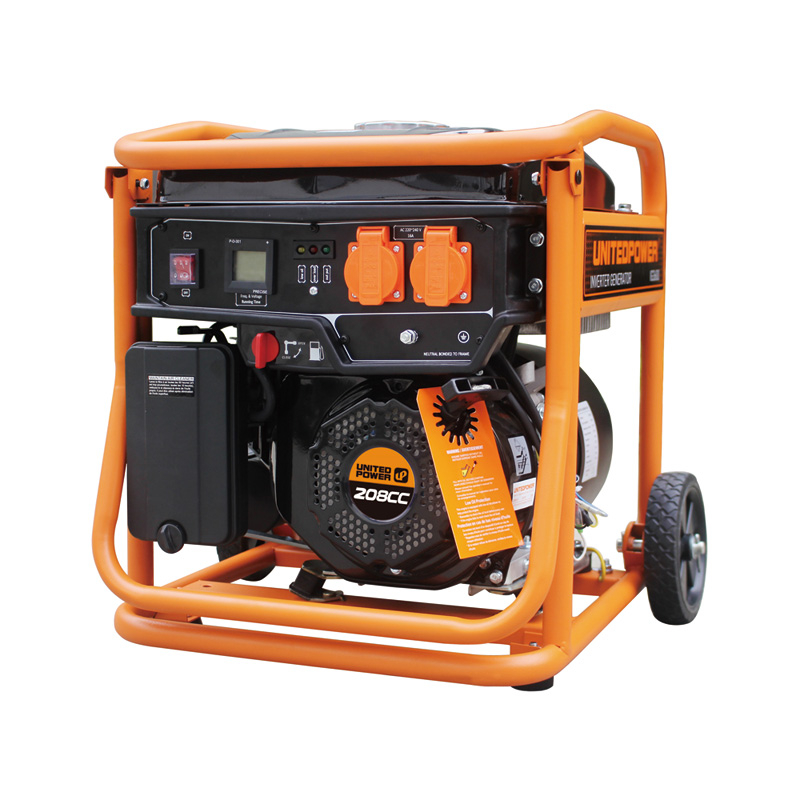

Model:	IG3600
Frequency(Hz):	50
Rated AC Output(W):	3000
Max. AC Output(W):	3200
DC Power:	100W
DC Voltage/DC Current:	12V / 8.3A
Noise:	97dB(A)/7m
Fuel Tank Capacity(L):	12
Gross Weight(kg):	33.5±2
Continuous Work Time(h/kW):	9/3.2
Dimension(LxWxH)(mm):	455x465x505
20ft/40ft/40HQ Container Qty:	240 / 516 / 640
Engine:	UP170
Engine Type:	4-Stroke,Air-cooled,OHV Gasoline Engine
Displacement Capacity(cc):	Recoil
Max. Output(kw/hp/rpm):	4.1/7/5000
Starting System:	Recoil
Lubrication Oil Volume(L):	0.6
