| After-sales Service: | Spare Parts |
|---|---|
| Warranty: | 12 Months |
| Max.Head: | 10-30m |
| Max.Capacity: | 300-400 L/min |
| Driving Type: | Internal Combustion Engine |
| Impeller Number: | Single-Stage Pump |
| Quantity: | |
|---|---|

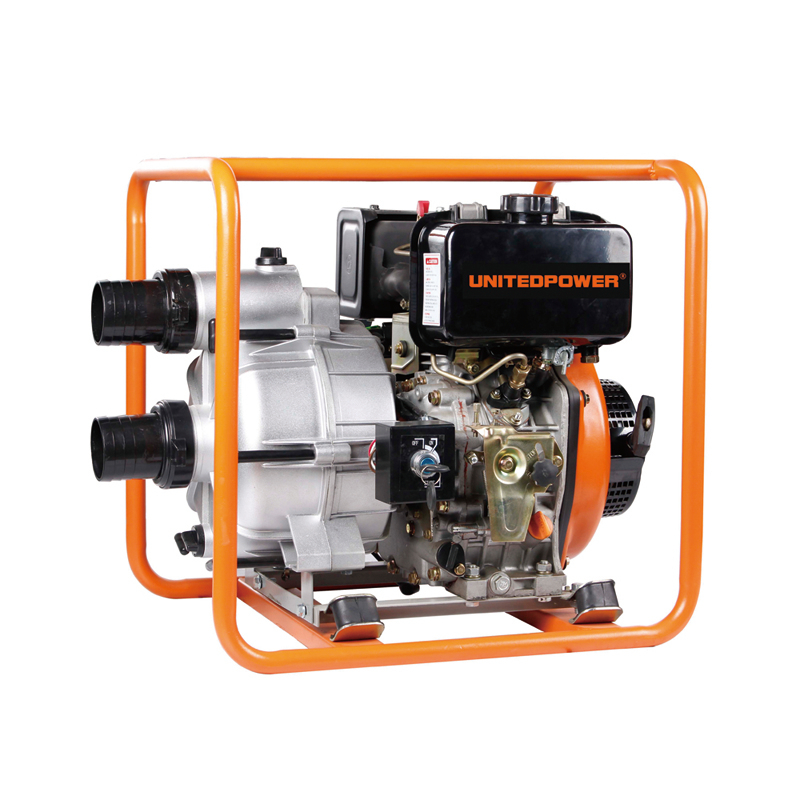

DTP80E
United Power
| Model: | DTP80E |
| Suction(in): | 80(3in) |
| Discharge Port Dia(mm): | 80 |
| Maximum Capacity(m3/h): | 65 |
| Self-Priming Time(s/4m): | 55 |
| Max.Head(m): | 26 |
| Max.Suction Head(m): | 8 |
| Net Weight / Gross Weight(kg): | 58 / 61 |
| Unit Dim(LxWxH)(mm): | 570 x 455 x 550 |
| Packing Dim(LxWxH)(mm): | 580 x 465 x 565 |
| 20ft/40ft Container Qty: | 200 / 408 |
| Engine: | UD178E |
| Engine Type: | Single-cylinder,4-Stroke,Air-cooled,Diesel Engine |
| Max. Output(HP/rpm): | 6.7 / 3600 |
| Fuel Tank Capacity(L): | 3.3 |
| Lubrication Oil Volume(L): | 1.1 |
| Certificate: | EU-V |
| Model: | DTP80E |
| Suction(in): | 80(3in) |
| Discharge Port Dia(mm): | 80 |
| Maximum Capacity(m3/h): | 65 |
| Self-Priming Time(s/4m): | 55 |
| Max.Head(m): | 26 |
| Max.Suction Head(m): | 8 |
| Net Weight / Gross Weight(kg): | 58 / 61 |
| Unit Dim(LxWxH)(mm): | 570 x 455 x 550 |
| Packing Dim(LxWxH)(mm): | 580 x 465 x 565 |
| 20ft/40ft Container Qty: | 200 / 408 |
| Engine: | UD178E |
| Engine Type: | Single-cylinder,4-Stroke,Air-cooled,Diesel Engine |
| Max. Output(HP/rpm): | 6.7 / 3600 |
| Fuel Tank Capacity(L): | 3.3 |
| Lubrication Oil Volume(L): | 1.1 |
| Certificate: | EU-V |
