| Type: | Self-Starting Diesel Generator |
|---|---|
| Installation Method: | Portable |
| Stroke: | Four Stroke |
| Cooling Method: | Air Cooled |
| Output Type: | AC Single Phase |
| Speed: | HSS |
| Quantity: | |
|---|---|

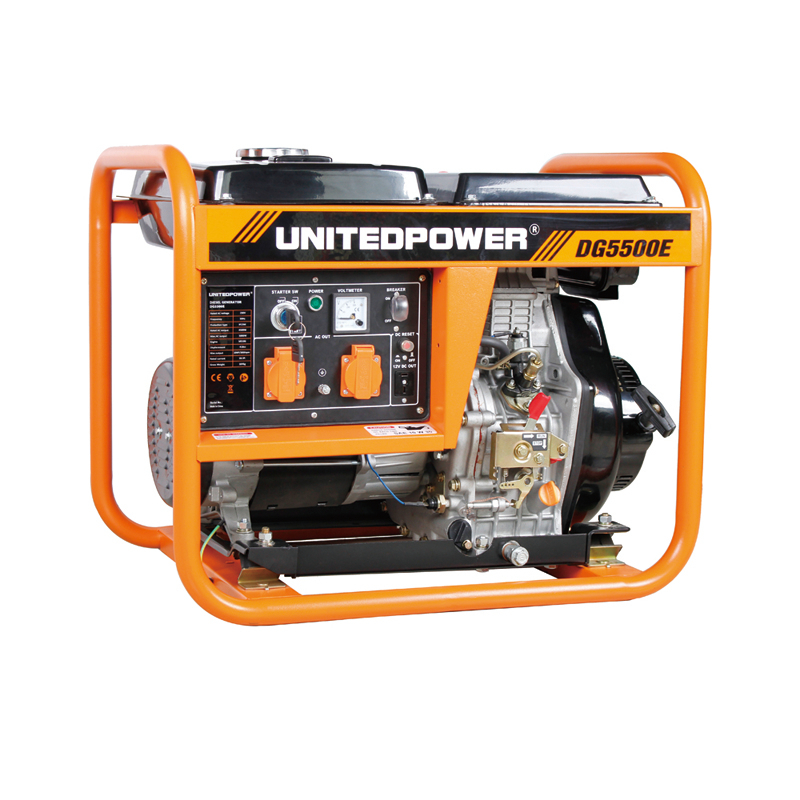

DG5500E
United Power
| Model: | DG5500E |
| Frequency(Hz): | 50 / 60 |
| Rated AC Output(kW): | 4.5 / 5.0 |
| Max. AC Output(kW): | 5.0 / 5.5 |
| AC Output Voltage(V): | |
| Noise Level LwA(4m)dB(A): | N/A |
| Fuel Tank Capacity(L): | 11.5 |
| Net Weight / Gross Weight(kg): | 105 / 109 |
| Continuous Work(h): | 6.5 / 5.5 |
| Fuel Consumption(full load)g/kw.h: | ≤ 285.7 |
| Alternator: | 190 x 132 |
| Unit Dim(LxWxH)(mm): | 710 x 480 x 575 |
| Packing Dim(LxWxH)(mm): | 720 x 490 x 590 |
| 20ft/40ft/40HQ Container Qty: | 105 / 219 / 230 |
| Engine: | UD186 |
| Engine Type: | Single-cylinder,4-Stroke,Air-cooled,Diesel Engine |
| Starting System: | Electric |
| Max. Output(HP/rpm): | 10 / 3600 |
| Lubrication Oil Volume(L): | 1.65 |
| Certificate: | EU-V CE |
| Model: | DG5500E |
| Frequency(Hz): | 50 / 60 |
| Rated AC Output(kW): | 4.5 / 5.0 |
| Max. AC Output(kW): | 5.0 / 5.5 |
| AC Output Voltage(V): | |
| Noise Level LwA(4m)dB(A): | N/A |
| Fuel Tank Capacity(L): | 11.5 |
| Net Weight / Gross Weight(kg): | 105 / 109 |
| Continuous Work(h): | 6.5 / 5.5 |
| Fuel Consumption(full load)g/kw.h: | ≤ 285.7 |
| Alternator: | 190 x 132 |
| Unit Dim(LxWxH)(mm): | 710 x 480 x 575 |
| Packing Dim(LxWxH)(mm): | 720 x 490 x 590 |
| 20ft/40ft/40HQ Container Qty: | 105 / 219 / 230 |
| Engine: | UD186 |
| Engine Type: | Single-cylinder,4-Stroke,Air-cooled,Diesel Engine |
| Starting System: | Electric |
| Max. Output(HP/rpm): | 10 / 3600 |
| Lubrication Oil Volume(L): | 1.65 |
| Certificate: | EU-V CE |
