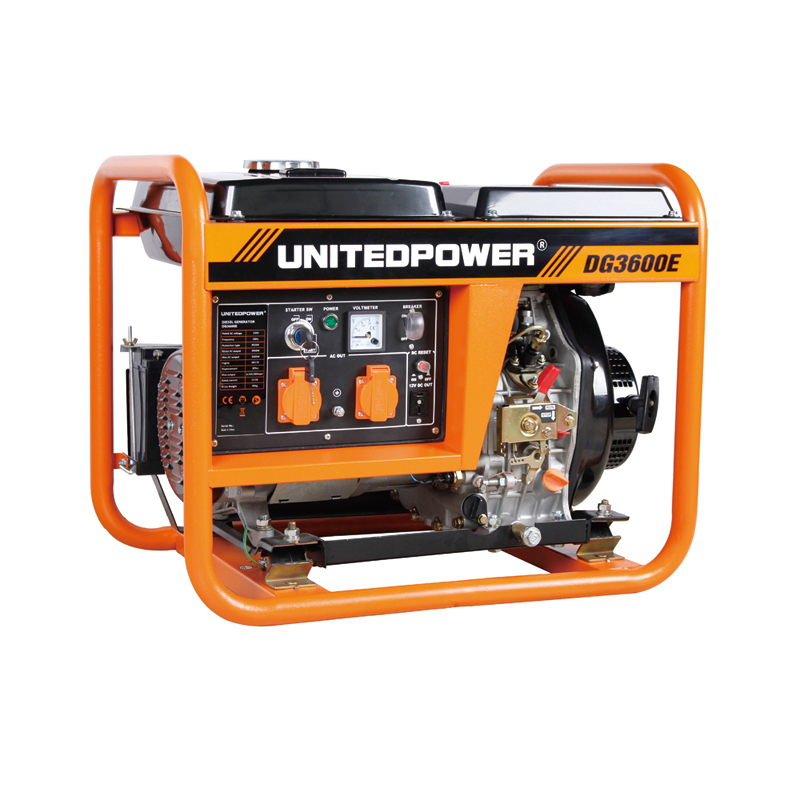

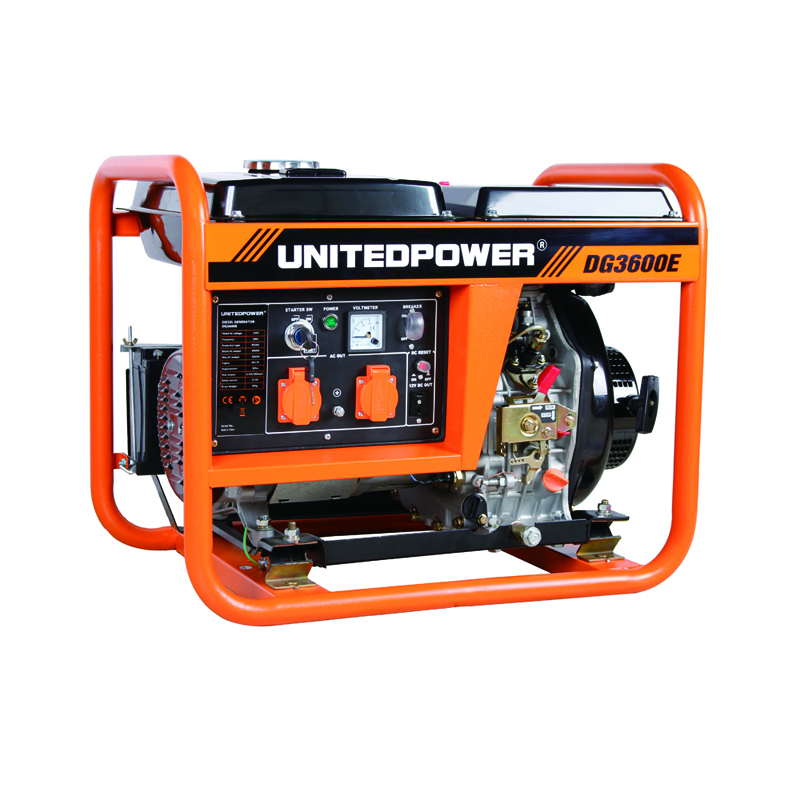

DG3600E

Type: Self-Starting Diesel Generator
Installation Method: Portable
Stroke: Four Stroke
Cooling Method: Air Cooled
Output Type: AC Single Phase+DC+USB
Speed: HSS
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • DG3600E

  • United Power

Model:DG3600E
Frequency(Hz):50 / 60
Rated AC   Output(kW):2.8 / 3.0
Max. AC   Output(kW):3.0 / 3.3
AC Output   Voltage(V):220~240; 115 / 230; /   110~120; 220~240
Noise Level   LwA(4m)dB(A):N/A
Fuel Tank   Capacity(L):11.5
Net Weight /   Gross Weight(kg):81 / 85
Continuous   Work(h):9 / 8
Fuel   Consumption(full load)g/kw.h:≤ 285.6
Alternator:190 x 85
Unit   Dim(LxWxH)(mm):680 x 460 x 550
Packing   Dim(LxWxH)(mm):690 x 470 x 565
20ft/40ft/40HQ   Container Qty:144 / 292 / 292
Engine:UD178
Engine Type:Single-cylinder,4-Stroke,Air-cooled,Diesel   Engine
Starting   System:Electric
Max.   Output(HP/rpm):6.7 / 3600
Lubrication   Oil Volume(L):1.1
Certificate:    EU-V CE
