Gasoline Generator 5000 Watt: Engineering Specifications and Commercial Selection Guide-United Power

Power availability determines the continuity of remote operations, municipal projects, and industrial worksites. When grid connection is unavailable or interrupted, choosing a reliable standby or prime power source is a primary concern for procurement managers. A gasoline generator 5000 watt unit occupies a highly practical position in portable power fleets. This capacity offers a balance: it provides sufficient current to run multiple heavy-duty inductive tools while maintaining the mobility required for rapid deployment.

For industrial distributors and fleet buyers, selecting the right machinery involves a close examination of the mechanical design, load capacity, and component durability. 联合动力 manufactures power generation systems designed to withstand demanding environments, offering engineering solutions that meet global emissions and safety standards. Understanding the design features and operational capabilities of these units allows purchasers to make informed decisions that match their specific operational requirements.

Understanding the Engineering Specifications of a Gasoline Generator 5000 Watt

Engine Configuration and Displacement

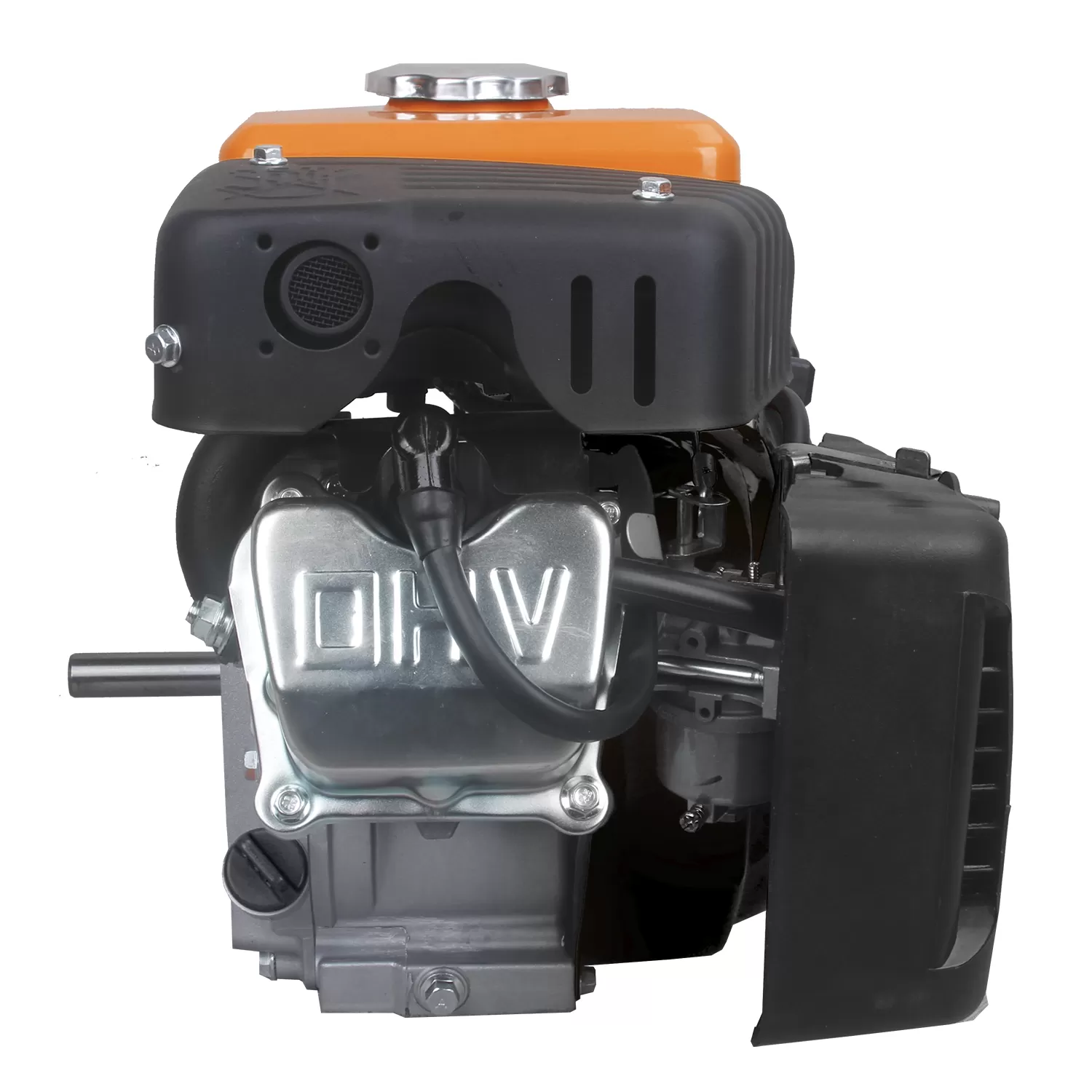

The mechanical performance of a gasoline generator 5000 watt relies heavily on its internal combustion 发动机. A standard commercial-grade model typically utilizes a four-stroke, single-cylinder overhead valve (OHV) engine with a displacement ranging between 389cc and 420cc. The OHV design is preferred because it places the valves directly above the piston, allowing for more uniform intake and exhaust gas flow. This configuration improves thermal efficiency, reduces fuel consumption, and limits carbon buildup inside the combustion chamber over extended operating periods.

Startup Systems

Another design element is the starter mechanism. Industrial configurations often feature a dual startup system. The primary system is an electric key start powered by a 12V sealed lead-acid or lithium-ion battery, which simplifies operation for users who need to restart the unit frequently throughout the workday. A manual recoil starter serves as a backup mechanism, ensuring operation is still possible even if the battery loses charge.

Alternator Design and Voltage Regulation

The alternator represents the point where mechanical energy is converted to electrical energy. Alternators employ 100% copper windings rather than aluminum alternatives. Copper possesses superior thermal conductivity and lower electrical resistance, which reduces internal heat generation and prevents performance degradation under high-load conditions. Stable power delivery is maintained using an Automatic Voltage Regulator (AVR). The AVR continuously monitors the output voltage and adjusts the exciter current to maintain a stable voltage level, protecting connected equipment from voltage sags and spikes.

Analyzing Load Profiles and Inductive Demands of a Gasoline Generator 5000 Watt

To prevent overloading and premature equipment wear, it is vital to distinguish between running wattage and starting wattage. A gasoline generator 5000 watt generally refers to the continuous running output of the unit. However, starting electric motors requires a temporary surge of power, known as starting wattage, which can be significantly higher.

Resistive loads, such as incandescent lighting, space heaters, and electric kettles, convert electricity directly into heat or light and do not require extra startup power. Their running wattage is identical to their starting wattage. Inductive loads, which contain electric motors—such as air compressors, submersible pumps, and concrete mixers—rely on magnetic fields to operate. These motors require an initial inrush of current to overcome mechanical inertia and establish the magnetic field.

Consider the following common equipment power demands:

• Air Compressor (1.5 HP): 1500 running watts, 4000 starting watts

• Circular Saw (15-amp): 1800 running watts, 2300 starting watts

• Submersible Sump Pump (1/2 HP): 1000 running watts, 2100 starting watts

• Halogen Work Lights: 1000 running watts, 1000 starting watts

When managing multiple tools on a single worksite, operators must calculate the combined load. The correct approach involves identifying the item with the highest starting wattage, adding its startup demand to the running wattages of all other connected tools, and verifying that the total does not exceed the surge capacity of the gasoline generator 5000 watt. Proper load planning prevents the circuit breakers from tripping and ensures a steady supply of current to all connected machinery.

Environmental Adaptability and System Protection

Commercial jobsites present harsh operational conditions, including high particulate matter, ambient temperature fluctuations, and moisture. Protecting the internal components of a gasoline generator 5000 watt require specific engineering safeguards.

Air filtration systems are the first line of defense against dust and debris. A dual-element air filter, combining a washable foam pre-filter with a pleated paper main element, captures fine dust particles before they can enter the carburetor. This dual-stage filtration is particularly important on masonry and dry excavation sites where silica dust is present.

Fuel quality represents another variable that impacts engine reliability. Many regions utilize gasoline blended with ethanol, which can attract moisture from the air, leading to fuel phase separation and carburetor corrosion during storage. To counter this, fuel systems must be designed with integrated fuel strainers in the tank neck, sediment cups at the petcock valve, and accessible carburetor drain bolts. These features allow operators to remove water and particulate contaminants before they reach the engine's main jet.

To protect the engine block from catastrophic failure due to lack of lubrication, a low-oil shutdown sensor is integrated into the crankcase. This sensor monitors the oil level and automatically grounds the ignition circuit if the oil drops below a safe threshold, stopping the engine before friction causes thermal damage to the connecting rod and cylinder wall.

Sourcing and Regulatory Compliance for B2B Distributors

For international distributors and B2B buyers sourcing equipment from United Power, regulatory compliance is a major factor in market entry. Different regions enforce strict emissions and safety regulations that must be met before import.

In the North American market, generators must meet Environmental Protection Agency (EPA) standards for exhaust emissions, while units sold in California must also comply with the California Air Resources Board (CARB) regulations, which mandate evaporative emissions controls. For the European market, engines must comply with Euro V emissions regulations and carry the CE mark, which verifies adherence to European safety, health, and environmental protection standards.

Beyond emissions, structural durability is a key procurement consideration. A robust frame design, typically constructed from 25mm or 32mm heavy-gauge steel tubing, protects the engine and alternator from impacts on busy jobsites. Standard equipment packages should also include flat-free polyurethane wheels and folding handles to allow a single operator to maneuver the unit over uneven terrain.

Scheduled Maintenance and Longevity

Regular preventive maintenance is necessary to maximize the service life of a gasoline generator 5000 watt. A structured maintenance schedule helps prevent unexpected downtime during operations.

During the initial operation of a new unit, a break-in period is required. The engine oil should be replaced after the first 20 hours of operation. This initial oil change removes microscopic metallic wear particles that accumulate as the piston rings seat against the cylinder wall. Subsequent oil changes should occur every 100 hours of operation, or more frequently when operating in dusty environments.

Spark plugs require inspection and cleaning every 100 hours. The gap between the electrodes must be measured with a wire gauge and adjusted to the manufacturer's specification to ensure reliable ignition and efficient combustion. The spark arrestor, located inside the muffler, should also be cleaned periodically to remove carbon deposits that can restrict exhaust flow and reduce engine power output.

For units placed in storage or used solely for seasonal emergency backup, fuel management is key. If the generator remains idle for more than 30 days, the fuel in the tank should be treated with a stabilizer, or the fuel system should be completely drained. This prevents the formation of gum deposits in the carburetor passages, ensuring the unit starts promptly when needed.

Inquiry for Commercial Procurement and Customization

Acquiring reliable portable power solutions requires a partner capable of delivering consistent product quality, stable supply chains, and tailored engineering options. 联合动力 supports B2B buyers, equipment rental companies, and global distributors with a diverse range of power generation products manufactured to demanding industrial standards.

We provide customization options for our gasoline generator 5000 watt models, including custom control panel layouts, alternative socket configurations to match regional electrical standards, automatic transfer switch (ATS) ports, and digital multi-meters that track voltage, frequency, and total running hours. Our manufacturing facilities utilize automated assembly lines and rigorous load testing protocols to ensure every unit shipped meets operational specifications.

To discuss your wholesale procurement needs, request a quotation, or inquire about custom OEM and ODM manufacturing capabilities, please contact our sales engineering department. Send your detailed inquiry with your specific requirements, and our team will provide a comprehensive proposal to support your market growth.

Frequently Asked Questions

Q1: What is the difference between starting watts and running watts on a gasoline generator 5000 watt?

A1: Running watts represent the continuous electrical power the generator can produce to keep connected appliances or tools operating. Starting watts, or surge watts, refer to the temporary peak power the unit can deliver to start electric motors, which require high inrush current to overcome mechanical resistance. For a typical gasoline generator 5000 watt, the running capacity is 5000 watts, while the surge capacity may range from 5500 to 6500 watts to handle these brief startup demands.

Q2: How often should the engine oil be changed in this class of generator?

A2: The engine oil must be changed after the first 20 hours of use to complete the engine break-in process and flush out any metallic wear particles. Following the break-in period, standard maintenance intervals require oil replacement every 100 operating hours. If the generator is operated continuously in dusty, high-temperature, or heavy-load environments, the oil should be changed every 50 hours to maintain proper lubrication and prevent component wear.

Q3: Can a gasoline generator 5000 watt run sensitive electronic devices safely?

A3: Standard open-frame generators may exhibit higher Total Harmonic Distortion (THD) levels, typically between 10% and 15%, depending on the load. While integrated Automatic Voltage Regulators (AVR) help stabilize the voltage, highly sensitive electronics like laptops, medical equipment, and variable-speed power tools operate best with a lower THD. For these applications, clean power can be achieved by using an inverter generator or incorporating high-grade power conditioners between the generator output and the sensitive device.

Q4: What is the average fuel consumption and runtime of a gasoline generator 5000 watt?

A4: Fuel consumption depends on the engine displacement and the electrical load placed on the unit. On average, a gasoline generator 5000 watt equipped with a 25-liter (approx. 6.6-gallon) fuel tank will operate for approximately 8 to 11 hours at 50% load. Under a full 100% load, the runtime will decrease, typically ranging between 5 and 7 hours per tank. Utilizing an OHV engine design helps optimize fuel efficiency across varying load conditions.

Q5: What safety features should be checked before operating the generator on a construction site?

A5: Before initiating operation on any jobsite, operators should verify that the low-oil shutdown sensor is functioning and that the oil level is correct. Additionally, the circuit breakers must be inspected to ensure they are in the proper position to protect against short circuits. Grounding terminals must be securely connected to an earth ground according to local electrical codes, and the spark arrestor inside the muffler must be clean to prevent potential ignition of external dry materials in the work area.
